The content on this page is intended to healthcare professionals and equivalents.
- Field of view
120°
- Observation range
2-100mm
- Distal end diameter
4.8mm
- Insertion tube diameter
5.1mm
- Minimum diameter of instrument channel
2.2mm
- Bending capability
UP 210° ／ DOWN 130°
- Working length
600mm
- Total length
880mm
- Sterilization
STERRAD ／ EOG
- Product： Video endoscope
- GMDN： 17662
- Generic name： Flexible video bronchoscope, reusable
- Field of view
120°
- Observation range
2-100mm
- Distal end diameter
5.6mm
- Insertion tube diameter
5.8mm
- Minimum diameter of instrument channel
2.8mm
- Bending capability
UP 180° ／ DOWN 130°
- Working length
600mm
- Total length
880mm
- Sterilization
STERRAD ／ EOG
- Product： Video Bronchoscope
- GMDN： 17662
- Generic name： Flexible video bronchoscope, reusable
Compatible with low temperature plasma sterilisation*1.
- Field of view
120°
- Viewing direction
0°(Forward)
- Observation range
2-50mm
- Distal end diameter
4.1mm
- Insertion tube diameter
4.1mm
- Minimum diameter of instrument channel
2.0mm
- Bending capability
UP 210° ／ DOWN 130°
- Working length
600mm
- Total length
880mm
- Sterilization
STERRAD ／ EOG
- Product： Video endoscope EB-710P
- GMDN： 17662
- Generic name： Flexible video bronchoscope, reusable
Compatible with low temperature plasma sterilisation*1.
- Field of view
120°
- Viewing direction
0°（Forward）
- Observation range
2-50mm
- Distal end diameter
5.8mm
- Insertion tube diameter
6.1mm
- Minimum diameter of instrument channel
3.2mm
- Bending capability
UP 180° ／ DOWN 130°
- Working length
600mm
- Total length
880mm
- Sterilization
STERRAD ／ EOG
- Product： Video endoscope EB-710XT
- GMDN： 17662
- Generic name： Flexible video bronchoscope, reusable
- *1 STERRAD® Systems provided by Advanced Sterilization Products, Inc.
High-resolution bronchoscope with improved operability thanks to 210°upward bending capability and 2.2mm diameter instrument channel.
- Field of view
120°
- Observation range
2-100mm
- Distal end diameter
5.3mm
- Insertion tube diameter
5.1mm
- Minimum diameter of instrument channel
2.2mm
- Bending capability
UP 210° ／ DOWN 130°
- Working length
600mm
- Total length
870mm
- Product： Video Endoscope
- GMDN： 17662
- Generic name： Flexible video bronchoscope, reusable

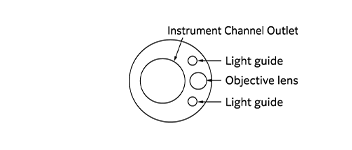

![[image] Tip of scope with parts - light guides, objective lens, instrument channel](https://asset.fujifilm.com/www/au/files/2020-05/4e91955027812cf691786eeff8ed5dbf/fig_bronchoscopes_01.jpg)
![[image] Scope moves 210 degrees up and 130 degrees down](https://asset.fujifilm.com/www/au/files/2020-05/8df5556524ba2af39f5387ace1ff683f/fig_bronchoscopes_02.jpg)
![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/au/files/2020-05/031da3abc38d16453be31784fef4902d/fig_bronchoscopes_03.jpg)
High-resolution bronchoscope to support efficient treatment.
- Field of view
120°
- Observation range
2-100mm
- Distal end diameter
5.8mm
- Insertion tube diameter
5.9mm
- Minimum diameter of instrument channel
2.8mm
- Bending capability
UP 180° ／ DOWN 130°
- Working length
600mm
- Total length
870mm
- Product： Video Endoscope
- GMDN： 17662
- Generic name： Flexible video bronchoscope, reusable
![[image] Tip of scope with parts - light guides, objective lens, instrument channel](https://asset.fujifilm.com/www/au/files/2020-05/b5129995671e0cdf9388cf8efda80b89/fig_bronchoscopes_04.jpg)
![[image] Scope moves 180 degrees up and 130 degrees down](https://asset.fujifilm.com/www/au/files/2020-05/41b89ab2bbcd9c2ee818f82cb1173f1b/fig_bronchoscopes_05.jpg)
![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/au/files/2020-05/f1b4b2ecd4beee829b01c29282937dd7/fig_bronchoscopes_06.jpg)

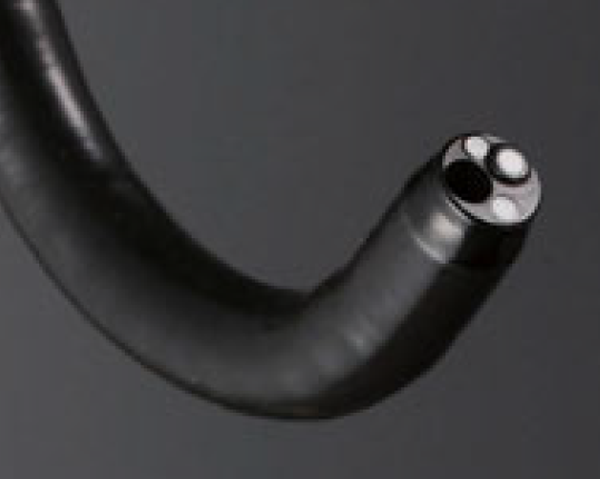

Slim type bronchoscope with a 3.8mm slim distal end diameter, suitable for pediatric bronchoscopy.
- Field of view
120°
- Observation range
3-100mm
- Distal end diameter
3.8mm
- Insertion tube diameter
3.8mm
- Minimum diameter of instrument channel
1.2mm
- Bending capability
UP 180° ／ DOWN 130°
- Working length
600mm
- Total length
890mm
- Product： Video Endoscope
- GMDN： 17662
- Generic name： Flexible video bronchoscope, reusable
![[image] Tip of scope with parts - light guides, objective lens, instrument channel](https://asset.fujifilm.com/www/au/files/2020-05/2eddc26a8cdde9b60b3daac10254322c/fig_bronchoscopes_07.jpg)
![[image] Scope moves 180 degrees up and 130 degrees down](https://asset.fujifilm.com/www/au/files/2020-05/bfa19d2fd7eab11636e3d4427625f7f1/fig_bronchoscopes_08.jpg)
![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/au/files/2020-05/60ad1eadb3bdca87be83173e95b1e73f/fig_bronchoscopes_09.jpg)
