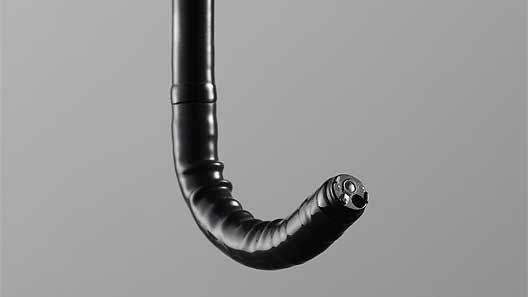

[photo] Flexible insertion tube of gastroscope

Gastroscopes

NEW

Upper G.I. tract scope line up with various features.

Contact Us

The content on this page is intended to healthcare professionals and equivalents.

ELUXEO EI-740D/S

Image of the bending section to the tip portion of EI-740D/S

Tip image of EI-740D/S

Image showing the bending shape of EI-740D/S

Field of view: 140°
Viewing direction: 0°(Forward)
Observation range: 3~100 mm
Bending capability: UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°
Working length: 1,030 mm
Total length: 1,330 mm
Distal end diameter: 12.8 m
Insertion tube diameter: 12.8 m
Minimum instrument channel diameter: 3.7/3.2 mm
Image size: Super image

Product name: Video Endoscope
GMDN: 64920
Generic name: Flexible upper/lower gastrointestinal endoscope

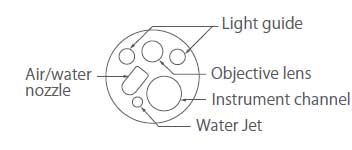

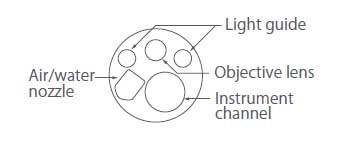

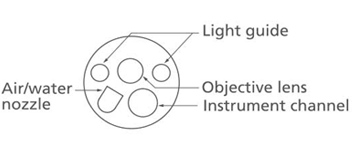

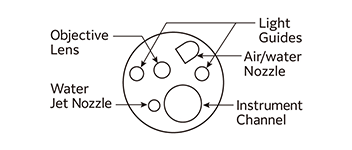

Diagram showing the tip layout of EI-740D/S

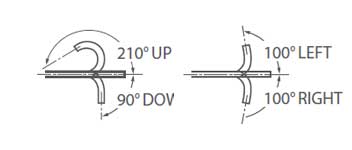

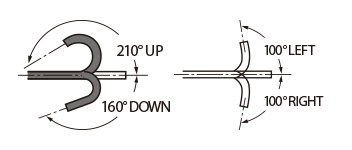

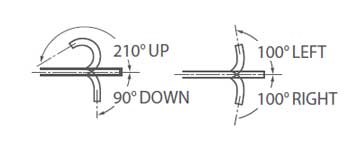

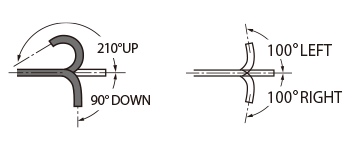

Diagram showing the range of up/down bending.／Diagram showing the range of right/left bending.

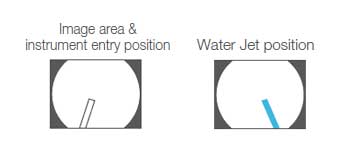

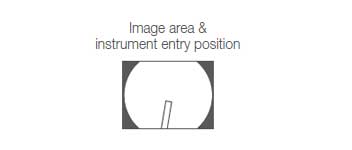

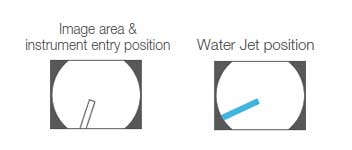

Diagram showing how therapeutic devices appear on endoscopic image.／Diagram showing how water jet appears on endoscopic image.

EG-600WR

[photo] EG-600WR gastroscope

[photo] Distal end/tip of gastroscope, with functional parts

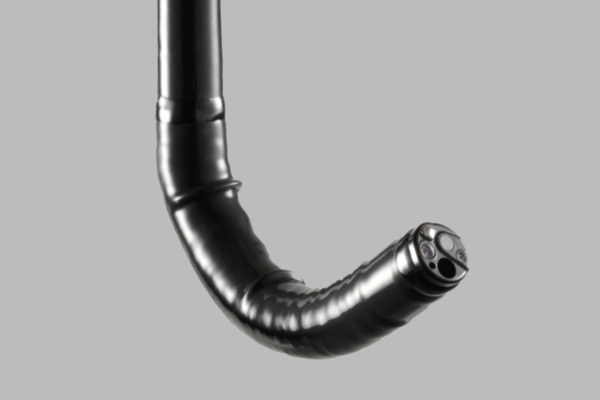

[photo] Flexible tip of scope bent upward with forceps sticking out

Viewing direction: 0°(Forward)
Field of view: 140°
Observation range: 2-100 mm
Distal end diameter: 9.2 mm
Insertion tube diameter: 9.3 mm
Minimum diameter of instrument channel: 2.8 mm
Bending capability: UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°
Working length: 1,100 mm
Total length: 1,400 mm
Water Jet: Available

Product: Video Endoscope
GMDN: 38805
Generic name: Flexible video gastroduodenoscope

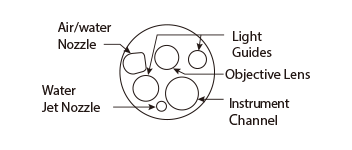

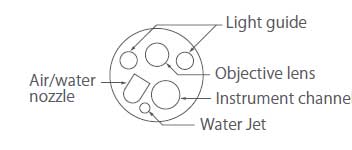

[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet

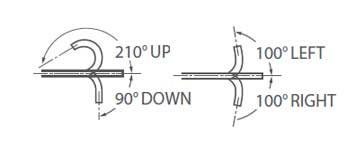

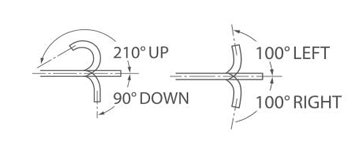

[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right

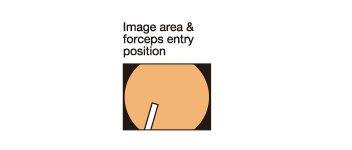

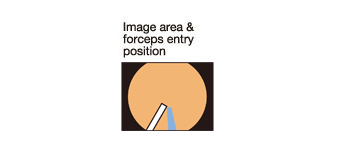

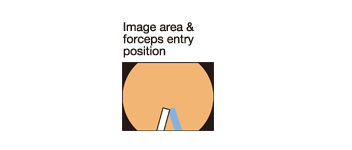

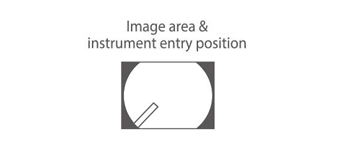

[image] Image area & forceps entry position

EG-600ZW

[photo] EG-600ZW gastroscope

[photo] Distal end/tip of gastroscope, with functional parts

[photo] Flexible tip of scope bent upward with forceps sticking out

Viewing direction: 0°(Forward)
Field of view: Normal: 140° / Closest: 56°
Observation range: 1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm
Distal end diameter: 9.9mm
Insertion tube diameter: 9.8mm
Minimum diameter of instrument channel: 2.8mm
Bending capability: UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°
Working length: 1,100 mm
Total length: 1,400mm

Product: Video Endoscope
GMDN: 38805
Generic name: Flexible video gastroduodenoscope

[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet

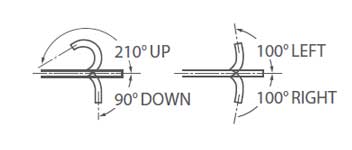

[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right

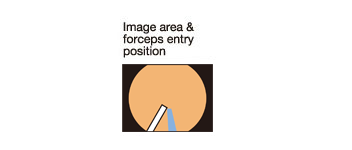

[image] Image area & forceps entry position

EG-580RD

[photo] Flexible tip of scope bent upward

[photo] Distal end/tip of gastroscope, with functional parts

Viewing direction: 0°(Forward)
Field of view: 140°
Observation range: 3-100mm
Distal end diameter: 9.8mm
Insertion tube diameter: 9.8mm
Minimum diameter of instrument channel: 3.2mm
Bending capability: UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°
Working length: 1,100mm
Total length: 1,400mm

Product: Video Endoscope
GMDN: 38805
Generic name: Flexible video gastroduodenoscope

[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet

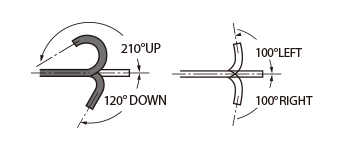

[image] Scope flexibly bends 210 degrees up/120 degrees down and 100 degrees left/right

[image] Image area & forceps entry position

EG-580NW2

[photo] EG-580NW2 gastroscope

[photo] Distal end/tip of gastroscope, with functional parts

Viewing direction: 0°(Forward)
Field of view: 140°
Observation range: 3-100mm
Distal end diameter: 5.8mm
Insertion tube diameter: 5.9mm
Minimum diameter of instrument channel: 2.4mm
Bending capability: UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°
Working length: 1,100mm
Total length: 1,400mm

Product: Video Endoscope
GMDN: 38805
Generic name: Flexible video gastroduodenoscope

[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet

[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right

[image] image area & forceps entry position
