DRI-CHEM NX500
NEWA multi-purpose automatic dry-chemistry analyzer featuring remarkably short turnaround time, a touch screen interface and reliability.
The content on this page is intended to healthcare professionals and equivalents.
Parameters
Classification | Parameter | Measurement range *1 | Measurement time (min.) |
||||
Unit (A) | Unit (B) | ||||||
Biochemical tests | Enzymes | ALP | 14 – 1183 | U/L | 0.23 – 19.76 | μ Kat/L | 4 |
AMYL | 10 – 1800 | U/L | 0.17 – 30.06 | μ Kat/L | 5 | ||
CHE | 5 – 500 | U/L | 0.08 – 8.35 | μ Kat/L | 4.5 | ||
CKMB | 1 – 300 | U/L | 0.02 – 5.01 | μ Kat/L | 5 | ||
CPK | 10 – 2000 | U/L | 0.17 – 33.40 | μ Kat/L | 4 | ||
GGT | 10 – 1200 | U/L | 0.17 – 20.04 | μ Kat/L | 5 | ||
GOT/AST | 10 – 1000 | U/L | 0.17 – 16.70 | μ Kat/L | 4 | ||
GPT/ALT | 10 – 1000 | U/L | 0.17 – 16.70 | μ Kat/L | 4 | ||
LAP | 10 – 500 | U/L | 0.17 – 8.35 | μ Kat/L | 4 | ||
LDH | 50 – 900 | U/L | 0.84 – 15.03 | μ Kat/L | 2 | ||
LIP | 20 – 1000 | U/L | 0.33 – 16.70 | μ Kat/L | 5 | ||
General chemistry | ALB | 1.0 – 6.0 | g/dL | 10 – 60 | g/L | 6 | |
BUN | 5.0 – 140.0 | mg/dL | 1.79 – 49.98 | mmol/L | 4 | ||
Ca | 4.0 – 16.0 | mg/dL | 1.00 – 4.00 | mmol/L | 4 | ||
CRE | 0.2 – 24.0 | mg/dL | 18 – 2122 | μmol/L | 5 | ||
DBIL | 0.1 – 16.0 | mg/dL | 2 – 274 | μmol/L | 5 | ||
GLU | 10 – 600 | mg/dL | 0.6 – 33.3 | mmol/L | 6 | ||
HDL-C | 10 – 110 | mg/dL | 0.26 – 2.84 | mmol/L | 6 | ||
IP | 0.5 – 15.0 | mg/dL | 0.16 – 4.84 | mmol/L | 5 | ||
Mg | 0.2 – 7.0 | mg/dL | 0.08 – 2.88 | mmol/L | 4.5 | ||
NH3 | 10 – 500 | μg /dL | 7 – 357 | μmol/L | 2 | ||
TBIL | 0.2 – 30.0 | mg/dL | 3 – 513 | μmol/L | 6 | ||
TCHO | 50 – 450 | mg/dL | 1.29 – 11.64 | mmol/L | 6 | ||
TCO2 | 5 – 40 | mmol/L | 5 – 40 | mmol/L | 5 | ||
TG | 10 – 500 | mg/dL | 0.11 – 5.65 | mmol/L | 4 | ||
TP | 2.0 – 11.0 | g/dL | 20 – 110 | g/L | 6 | ||
UA | 0.5 – 18.0 | mg/dL | 30 – 1071 | μmol/L | 4 | ||
Electrolytes | Na | 75 – 250 | mEq/L | 75 – 250 | mmol/L | 1 | |
K | 1.0 – 14.0 | mEq/L | 1.0 – 14.0 | mmol/L | |||
Cl | 50 – 175 | mEq/L | 50 – 175 | mmol/L | |||
Immunological test | CRP | 0.3 – 7.0 | mg/dL | 3 – 70 | mg/L | 5 | |
Comprehensive S-panel | TP, ALB, ALP, GLU, TBIL, IP, TCHO, GGT, GPT/ALT, Ca, CRE, BUN | ||||||
Small Screening S-panel | ALP, TBIL, GGT, GPT/ALT, CRE, GOT/AST |
- * There are parameters which may not be available in your area. For details please contact your local distributor.
- *1 Unit (A) and (B) is available
Calculations
Calculated Parameter |
Indication |
Unit |
Equation |
---|---|---|---|
LDL Cholesterol |
LDL |
mg/dL |
LDL-C = TCHO value - (HDL-C vlaue + TG value/5) |
mmol/L |
LDL-C = TCHO value - (HDL-C value + TG value/2.2) |
||
non-HDL Cholesterol |
non-HDL |
mg/dL or mmol/L |
non-HDL = TCHO value - HDL-C value |
Globulin |
GLOB |
g/dL or g/L |
GLOB = TP value - ALB value |
Albumin/Globulin ratio |
ALB/GLOB |
- |
ALB/GLOB = ALB value / (TP value - ALB value) |
BUN/Creatinine ratio |
BUN/CRE |
- |
BUN/CRE = BUN value / CRE value |
Anion Gap |
Anion Gap |
mEq/L or mmol/L |
Anion Gap = Na value - (Cl value + TCO2 value) |
Main specifications
-
Measurement test
-
Colorimetry 28 tests
Electrolytes 3 tests -
Throughput
-
Colorimetry 120 test/hour
Combined 128 test/hour -
Number of sample rack
-
1
-
Number of incubator cell
-
Colorimetry 12, Electrolytes 1
-
Measurement time
-
Colorimetry 2 to 6 minutes/test,
Electrolytes 1 minute/3 tests (Na-K-Cl) -
Sample type
-
Plasma, Serum, Whole blood*2
-
Sample volume
-
Colorimetry 10μL/test,
Electrolytes 50μL/3 tests (Na-K-Cl), CRP 5μL/test -
Data transmission to PC
-
USB 2.0 or RS-232C Serial
D-Sub 9 pin -9 pin cross cable -
Data print
-
Thermal Printer
-
Electrical requirements
-
AC 100-240V, 50/60Hz, 2.5-1.1A
-
Dimensions
-
470 (W) 5 360 (D) 5 420 (H) mm
-
Weight
-
NX500 Approx. 25kg, NX500i Approx. 24kg
-
Operating temperature
-
15 to 32˚C (59 to 89F)
-
Operating humidity
-
30 to 80%RH
- *2 NH3-W: Whole blood only NH3-P: Plasma only
- Na-K-Cl: Plasma, Serum, Whole blood
- Other test items: Plasma, Serum
DRI-CHEM NX500 Series
NX500 | NX500i | |
---|---|---|
Electrolyte tests | ● | ● |
Plasma Filter Function | ● | - |
Automatic dilution | ● | ● |
- *DRI-CHEM NX500(Product:FUJI DRI-CHEM NX500/FUJI DRI-CHEM NX500i)
- Please contact your local distributor for availability.
Option Items

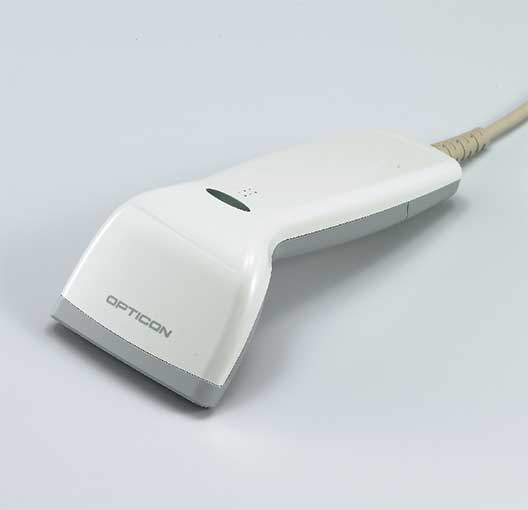

Barcode reader
For reading sample ID on sample tube and operator ID
Operator ID Editor Kit
Operator ID Editor tool software (for PC) and a USB stick (for data transfer between PC and NX500) for registration and editing operator ID
