Classification | Parameter | Measurement range | Measurement time (min.) |
||||
---|---|---|---|---|---|---|---|
Unit (A) | Unit (B) | ||||||
Biochemical tests | Enzymes | ALP | 14 – 1183 | U/L | 0.23 – 19.76 | μ Kat/L | 4 |
v-AMY | 100 – 2500 | U/L | 1.67 – 41.75 | μ Kat/L | 3 | ||
CPK | 10 – 2000 | U/L | 0.17 – 33.40 | μ Kat/L | 4 | ||
GGT | 10 – 1200 | U/L | 0.17 – 20.04 | μ Kat/L | 5 | ||
GOT/AST | 10 – 1000 | U/L | 0.17 – 16.70 | μ Kat/L | 4 | ||
GPT/ALT | 10 – 1000 | U/L | 0.17 – 16.70 | μ Kat/L | 4 | ||
v- LIP | 10 – 1000 | U/L | 0.17 – 16.70 | μ Kat/L | 5 | ||
LDH | 50 – 900 | U/L | 0.84 – 15.03 | μ Kat/L | 2 | ||
General chemistry | ALB | 1.0 – 6.0 | g/dL | 10 – 60 | g/L | 6 | |
BUN | 5.0 – 140.0 | mg/dL | 1.79 – 49.98 | mmol/L | 4 | ||
Ca | 4.0 – 16.0 | mg/dL | 1.00 – 4.00 | mmol/L | 4 | ||
CRE | 0.2 – 24.0 | mg/dL | 18 – 2122 | μ mol/L | 5 | ||
GLU | 10 – 60 | mg/dL | 0.6 – 33.3 | mmol/L | 6 | ||
IP | 0.5 – 15.0 | mg/dL | 0.16 – 4.84 | mmol/L | 5 | ||
Mg | 0.2 – 7.0 | mg/dL | 0.08 – 2.88 | mmol/L | 4.5 | ||
NH3 | 10 – 500 | μg/dL | 7 – 357 | μ mol/L | 2 | ||
TBIL | 0.2 – 30.0 | mg/dL | 3 – 513 | μ mol/L | 6 | ||
TCHO | 50 – 450 | mg/dL | 1.29 – 11.64 | mmol/L | 6 | ||
TCO2 | 5 – 40 | mmol/L | 5 – 40 | mmol/L | 5 | ||
TG | 10 – 500 | mg/dL | 0.11 – 5.65 | mmol/L | 4 | ||
TP | 2.0 – 11.0 | g/dL | 20 – 110 | g/L | 6 | ||
UA | 0.5 – 18.0 | mg/dL | 30 – 1071 | μ mol/L | 4 | ||
Electrolytes (on only one slide) |
Na | 75 – 250 | mEq/L | 75 – 250 | mmol/L | 1 | |
K | 1.0 – 14.0 | mEq/L | 1.0 – 14.0 | mmol/L | |||
CI | 50 – 175 | mEq/L | 50 – 175 | mmol/L | |||
Immunological Test | vc-CRP | 0.3 – 7.0 | mg/dL | 3 – 70 | mg/L | 5 | |
Comprehensive S-panel | TP, ALB, ALP, GLU, TBIL, IP, TCHO, GGT, GPT/ALT, Ca, CRE, BUN | ||||||
Pre-Surgical S-panel | TP, ALP, GLU, GPT/ALT, CRE, BUN | ||||||
Plus S-panel | TG, v-LIP, GOT/AST, v-AMY, Mg, Na-K-Cl | ||||||
Calculations | GLOB, ALB/GLOB, GOT/GPT, BUN/CRE, Na/K, Anion Gap |
- * Unit (A) and (B) is available
- * There are parameters which may not be available in your area. For details please contact your local distributor.
- * v-LIP, v-AMY and vc-CRP slides are designed for veterinary use.
Other slides are designed for use in analyzing human blood. Measurement results may vary depending on the animal species. For details, please contact your local distributors.
- Measurement test
Colorimetry 23 tests
Electrolytes 3 tests
- Throughput
Colorimetry 120 test/ hour
Combined 128 test/ hour
- Number of sample rack
1
- Number of incubator cell
Colorimetry 13, Electrolytes 1
- Measurement time
Colorimetry 2 to 6 minutes/ test
Electrolytes 1 minute/ 3 tests (Na, K, Cl)
- Sample type
Plasma, Serum, Whole blood
- Sample volume
Colorimetry 10μL/ test
Electrolytes 50μL/ 3 tests (Na, K, Cl)
- Data transmission to PC
RS 232C (1 port), USB (2 port), LAN (1 port)
- Data print
Thermal printer
- Electrical requirements
Single phase AC; 100 - 240 V ±10%; 50 to 60 Hz
- Display
7 inch color touch panel
- Dimensions
470 (W) ✕ 360 (D) ✕ 370 (H) mm
- Weight
Approx. 27kg (NX600V IC) / Approx. 26kg (NX600V)
- Operating temperature
15 to 32°C (59 to 89 °F)
- Operating humidity
30 to 80% RH (no vapor condensation)
- Altitude
Up to 2,000 m (810 hPa)

With electrolyte measuring function | With automatic dilution function | With centrifugal separation function | |
---|---|---|---|
NX600V IC | ● | ● | ● |
NX600V | ● | ● | - |

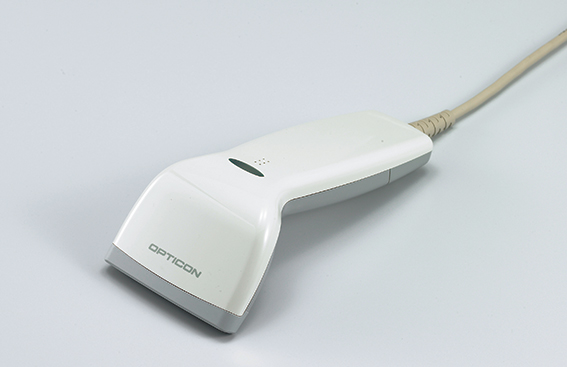

Barcode reader is available as option item to read sample ID on sample tube.
DRI-CHEM NX600V (Product name: FUJI DRI-CHEM NX600V IC, FUJI DRI-CHEM NX600V, FUJI DRI-CHEM NX600iV )
