FDR D-EVO III G35i/G43i/C35i/C43i

NEW

A glass-free DR panel full of multiple functions in a lightweight body.

The content on this page is intended to healthcare professionals and equivalents.

An Evolution of Form and Function

The ever lighter FDR D-EVO III is introduced with our flexible film-based TFT detector, providing high image quality with low X-ray dose. FDR D-EVO series will never stop evolving to improve the workflow in various clinical scenes.

  • * 14 x 17 inch model, without the battery
  • * 14 x 17 inch model, without the battery
Film-based TFT detector with ISS method
Glass-based TFT detector with ISS method

High quality image & Low Dosing

ISS system reading technology promotes higher sensitivity

Like FDR D-EVO II, FDR-D-EVO III is Equipped with an indirect conversion system called the ISS method which bonds optical sensors (TFT) to the X-ray irradiation side unlike traditional flatpanel detectores.  This greatly suppresses scattering and attenuation of X-ray signals, creating a sharp image with low X-ray dose.

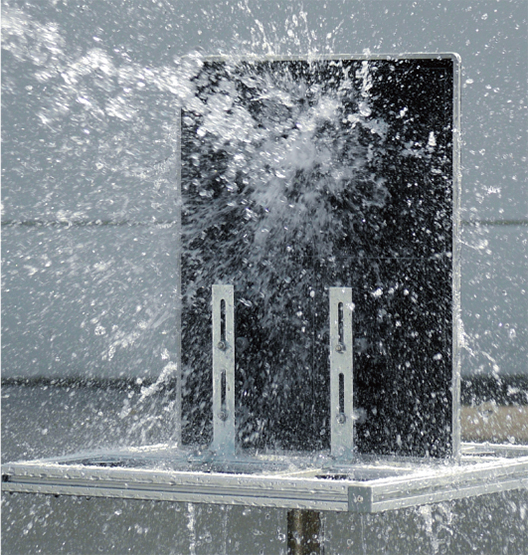

Waterproofed and dust-proofed

Structured to prevent the infiltration of liquids, the device conforms to IPX6 and can withstand jets from any direction*1. There is no need to worry for fluid permeation inside the device caused by fluid like blood or vomit. The device also complies with IP5X for dust-proof structure, preventing malfunction caused by small particles*1.

  • *1 These effects cannot always be guaranteed in the future for its product characteristics.

Blending large and small phosphor particles at an optimal ratio

Blending optimally-sized phosphor particles in gaps

Increased X-ray absorption through our uniquely designed scintillator, which applies photographic film technology to optimize the blending ratio of phosphor particles of different sizes.

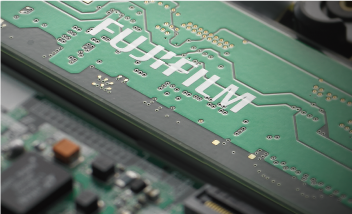

Fujifilm noise reduction circuit improves detector sensitivity in high absorption regions

The uniquely developed noise reduction circuit reduces noise in the image. This noise reduction circuit realizes DQE 33% even at 1mR.The granularity of low- concentration regions is improved.

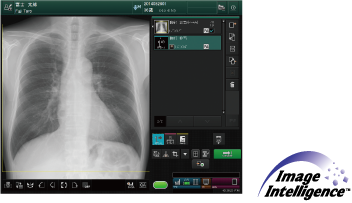

Image processing technology to optimize imaging results

FDR D-EVO III utilizes the latest Fujifilm digital image processing technologies including Dynamic Visualization, which optimizes image display based on monitor characteristics and FNC noise suppression processing that improves image quality, automatically extracting and separating noise components in the image.

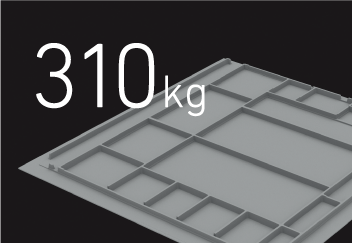

High durability frame structure — 310kg load capacity

Forging frames constructed with Mg-Li alloy provides robust protection for internal devices, while maintaining a lightweight design. With this technology, FDR D-EVO III has a 310kg load capacity.

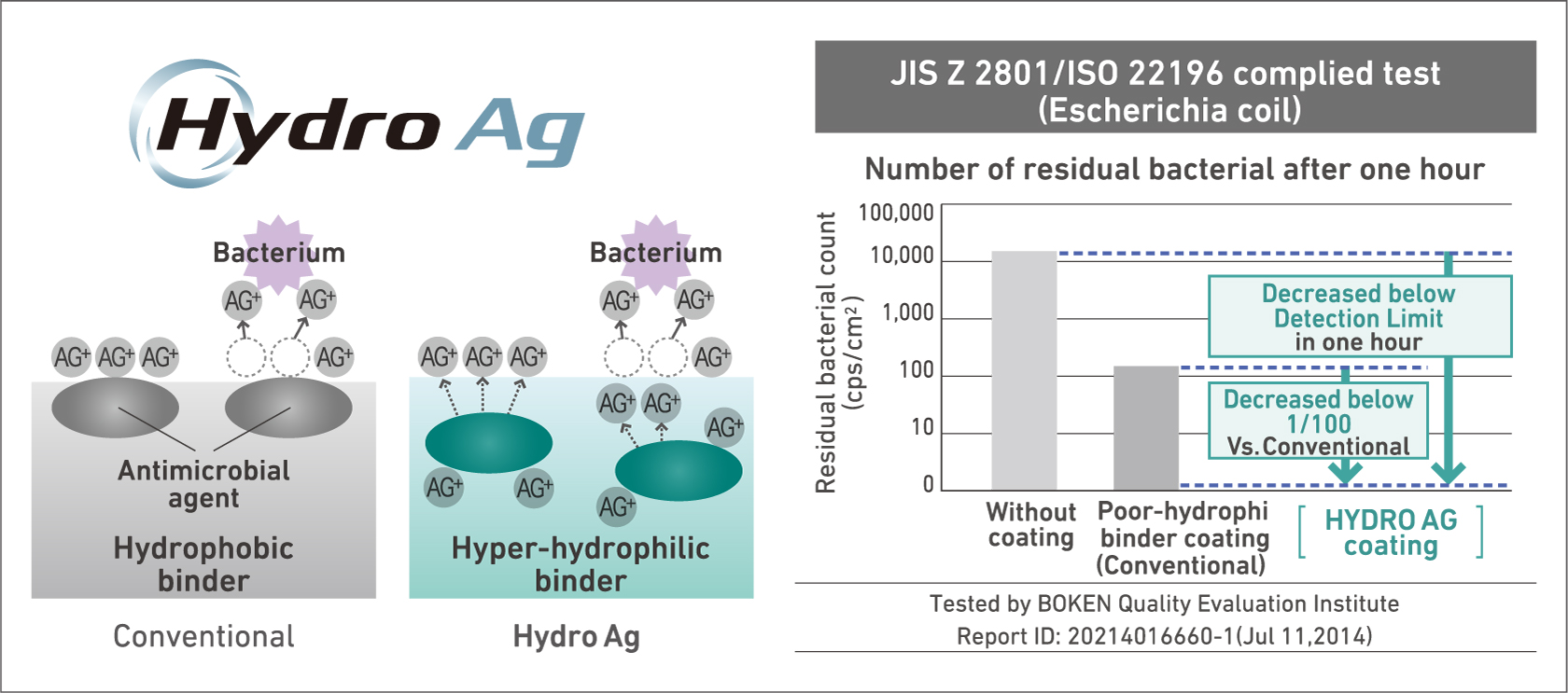

Hydro Ag antibacterial coating

The FDR D-EVO III detectors are coated with Hydro Ag antibacterial coating, which has an antibacterial effect 100 times greater than that of conventional Ag coatings. This longer-lasting higher intensity antibacterial effect prevents bacterial growth. A hyper-hydrophilic binder allows easy cleaning and hygienic use, together with the easy-to wipe flat design of the detector.

  • * Due to the characteristics of the product, the effect is not guaranteed in the future.

Versatile functionality

LED lamps on the front of device for better visualization

LED lamps are equipped on four sides of the front of the detector, for a visual assistance.

1.Centralizing the device and distinguishing devices
Equipped with side-center LEDs on four sides of the detector, for easier positioning of the device during imaging. There are five LED colors (blue, pink, orange, lime-yellow and purple), to distinguish different devices for different colors when using multiple devices.

2.Device status displayed in green
When the device is ready for X-ray exposure, the LED lights up in green.

3.Front side identification in white
It lights up in white to identify the top-side and bottom-side of the detector.

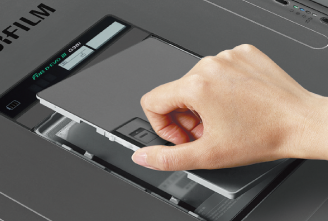

Simple battery replacement workflow

The battery can be replaced with one hand.

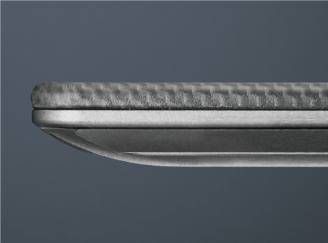

Easy insertion with shell designed edge

The curved, shell designed edges are employed on both sides of the panel. The curved corners allow for an easier insertion into patient beds. The easy-to-grasp shape assists to pick up even when placed on a flat surface, improving task efficiency.

Internal memory for independent imaging, Easy-to-read battery status display

Up to 100 images can be stored in the panel’s internal memory. The LED display shows the number of stored images along with the battery status. You can check that information even when the panel is being used on its own.

Works together with the console to display the detector status

The docking stand works together with the console to display the detector’s “Ready” status and identify color using the LEDs.
This makes it easy to check the current state of the detector even from far away.

Improved handling

Suitable for outdoor use with an expanded spectrum

FDR D-EVO III is compatible with 2.4GHz and 5GHz (W52/53/56)*2 spectrum, making the device suitable for outdoors use. Also, the device supports IEEE802.11 ac, the new high-speed wireless LAN.

  • *2 Wireless band is allowed to be used depending on the regulation of each country.

Improved throughput

Image display speed and cycle time has been improved approximately by 1.5 seconds when wirelessly connected, as compared to our previous FDR D-EVO models.

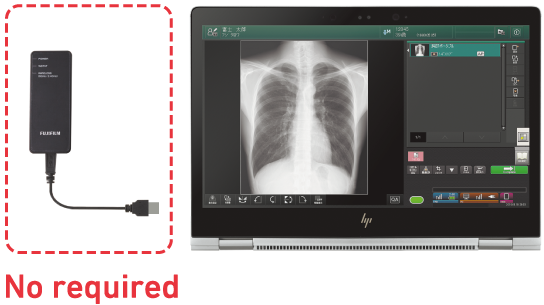

Small AP is no longer required

The small AP required for previous mobile solution is not necessary for the FDR D-EVO III. With just the panel and mobile console, high mobility can be achieved.

Easier transition between systems

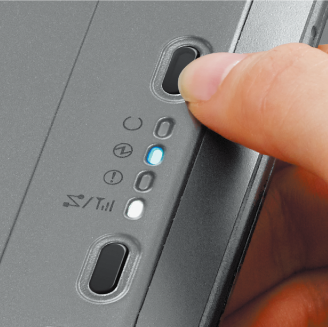

FDR D-EVO III enables users to select and switch between systems simply by pressing the button on the back of the panel.

“SmartSwitch” Technology

Fujifilm developed a technology “SmartSwitch” which allows automatic X-ray detection. With SmartSwitch, FDR D-EVO III no longer requires connection between the X-ray generator and DR power supply unit to automatically detect X-rays and start image creation.

*3 Console Advance

Advanced image processing

3D structure analysis technology to support mobile exam

  • * These image processing is achieved with Console Advance.

Virtual Grid

Provides a high quality image without using a grid

Virtual Grid processing corrects for the effects of scatter radiation. Without the need for a grid, Virtual Grid retains high contrast and image sharpness, while preventing the asymmetric density  resulting from misalignment of X-ray tube and detector. (Option)

Multiple body parts supported

Dynamic Visualization II

Optimizes image quality using latest Exposure Data Recognizer

Advanced recognition algorithms automatically adjust contrast and density for individual body parts based on calculation of estimated 3D image data. (Option)

Product Name:FDR D-EVO III (Model number : DR-ID 1800)
