FDR D-EVO III C25i

NEW

A glass-free, lightweight DR panel with a size suitable for orthopedics and pediatrics.

The content on this page is intended to healthcare professionals and equivalents.

Next generation imaging

A 25 × 30 cm glass-free flexible sensor

High quality image & Low Dosing

ISS system reading technology promotes higher sensitivity

Like FDR D-EVO II, FDR-D-EVO III is Equipped with an indirect conversion system called the ISS method which bonds optical sensors (TFT) to the X-ray irradiation side unlike traditional flatpanel detectores.  This greatly suppresses scattering and attenuation of X-ray signals, creating a sharp image with low X-ray dose.

Synergism between ISS method and flexible film-based TFT detector

By changing the TFT detector of FDR D-EVO III from glass-base to film-base, X-ray transmittance is improved compared to FDR D-EVO II. FDR D-EVO III achieved DQE 58% from 54% (1Lp/mm-RQA5 1mR) by applying a flexible film to a base of the device detector. This unique technology combination is only possible with proprietary ISS technology to fully implement the benefits of film-based detectors.

Mini & Flexible size

A size suitable for use in orthopedics and pediatrics

The 25 × 30 cm cassette size widely used in radiography is adopted to open up even more possibilities for X-ray imaging in fields such as orthopedics and pediatrics.

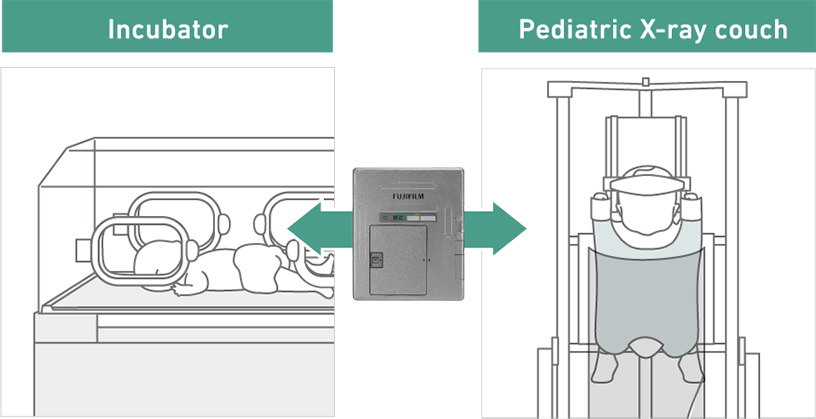

Improved compatibility with peripheral equipment such as incubators

Imaging proceeds smoothly with the device linked with existing peripheral devices, such as incubators and pediatric X-ray couches.

High-Level Protection

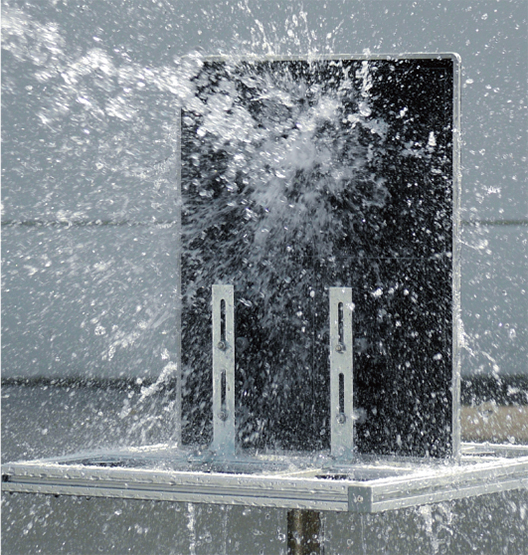

Waterproofed and dust-proofed

Structured to prevent the infiltration of liquids, the device conforms to IPX6 and can withstand jets from any direction*1. There is no need to worry for fluid permeation inside the device caused by fluid like blood or vomit. The device also complies with IP5X for dust-proof structure, preventing malfunction caused by small particles*1.

  • *1 These effects cannot always be guaranteed in the future for its product characteristics.

High durability frame structure

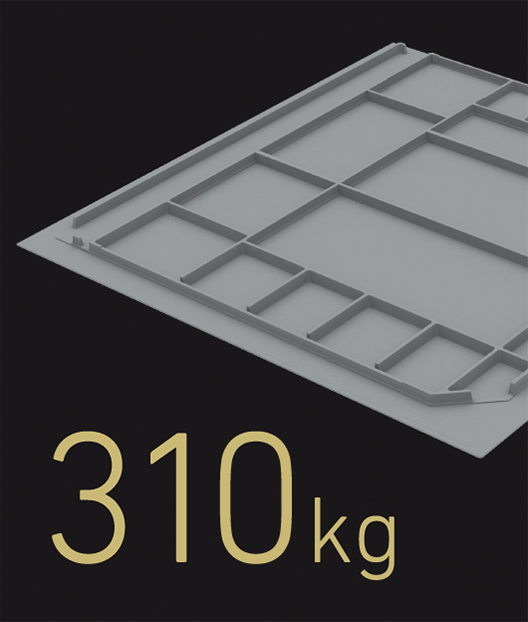

Forging frames constructed with Mg-Li alloy provides robust protection for internal devices, while maintaining a lightweight design. With this technology, FDR D-EVO III has a 310kg load capacity.

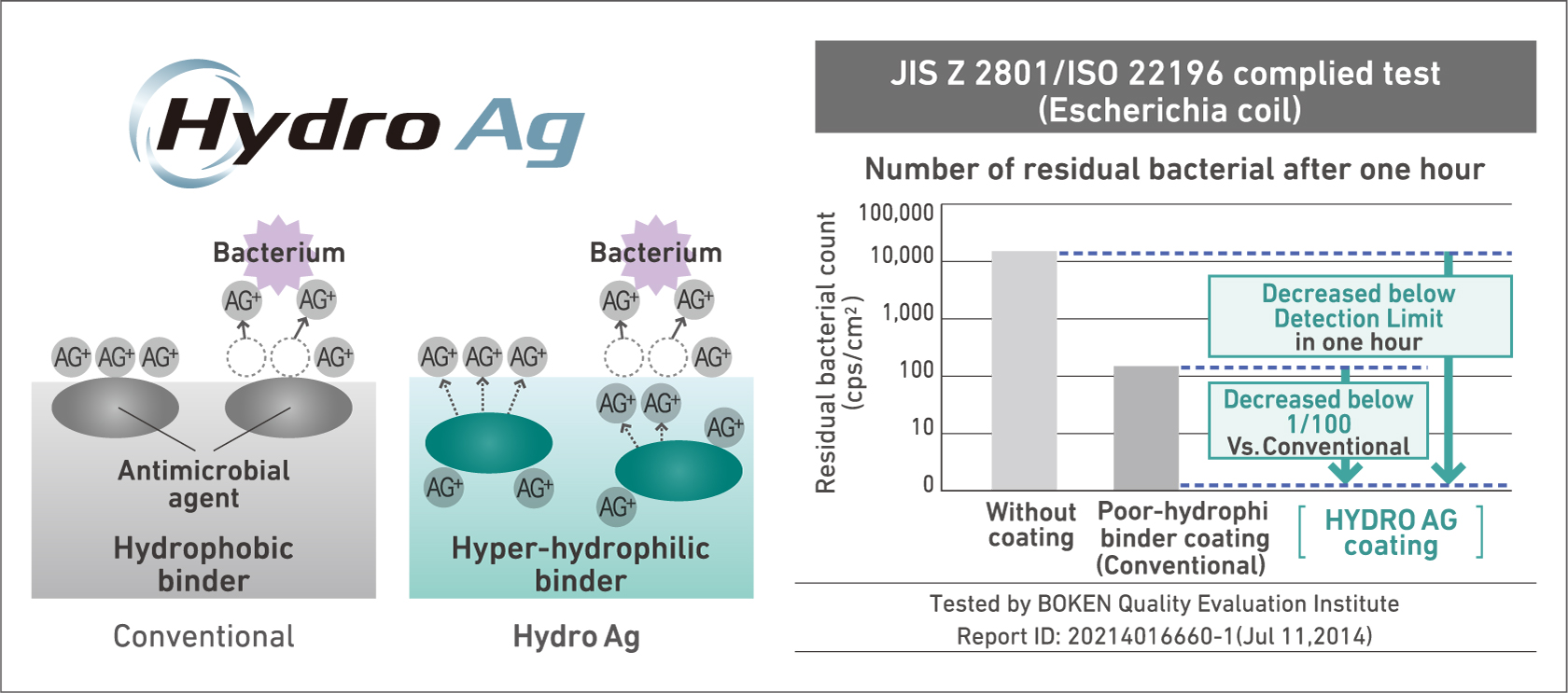

Hydro Ag antibacterial coating

The FDR D-EVO III detectors are coated with Hydro Ag antibacterial coating, which has an antibacterial effect 100 times greater than that of conventional Ag coatings*2. This longer-lasting higher intensity antibacterial effect prevents bacterial growth.
A hyper-hydrophilic binder allows easy cleaning and hygienic use, together with the easy-to wipe flat design of the detector.

  • *2 Due to the characteristics of the product, the effect is not guaranteed in the future.

Easy-to-clean flat shape

The FDR D-EVO III introduces a flat design and reduced contours, promoting easier and more efficient cleaning.

Versatile Functionality

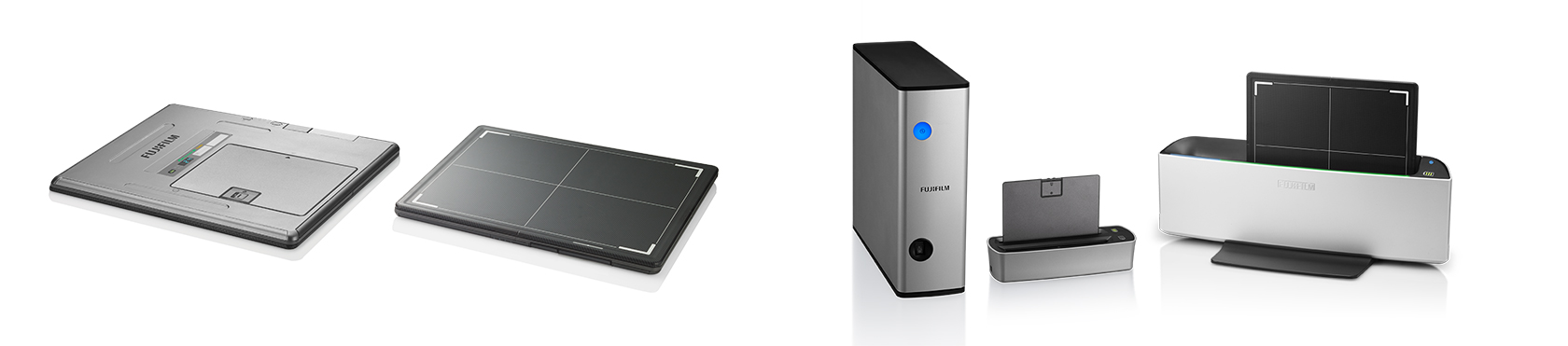

Peripheral devices for effortless handling

Battery charger, docking stand, power supply unit and power box for FDR D-EVO II can also be operated with FDR D-EVO III, for improved usability and easier handling.

LED lamps on the front of device for better visualization

LED lamps are equipped on four sides of the front of the detector, for a visual assistance.

  1. Centralizing the device and distinguishing devices
    Equipped with side-center LEDs on four sides of the detector, for easier positioning of the device during imaging. There are five LED colors (blue, pink, orange, lime-yellow and purple), to distinguish different devices for different colors when using multiple devices.
  2. Device status displayed in green
    When the device is ready for X-ray exposure, the LED lights up in green.
  3. Front side identification in white
    It lights up in white to identify the top-side and bottom-side of the detector.

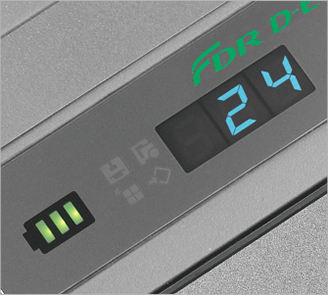

Internal memory for independent imaging, Easy-to-read battery status display

Up to 100 images can be stored in the panel’s internal memory. The LED display shows the number of stored images along with the battery status. You can check that information even when the panel is being used on its own.

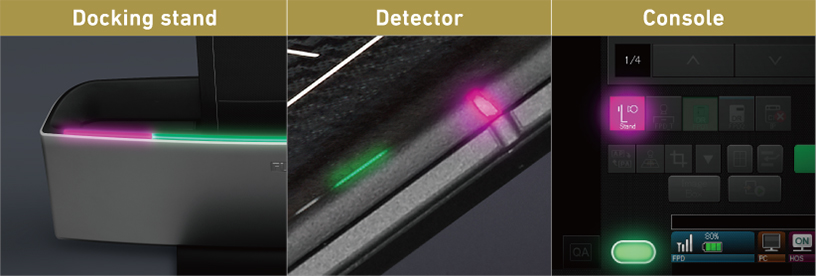

Works together with the console to display the detector status

The docking stand works together with the console to display the detector’s “Ready” status and identify color using the LEDs. This makes it easy to check the current state of the detector even from far away.

Improved Handling

Suitable for outdoor use with an expanded spectrum

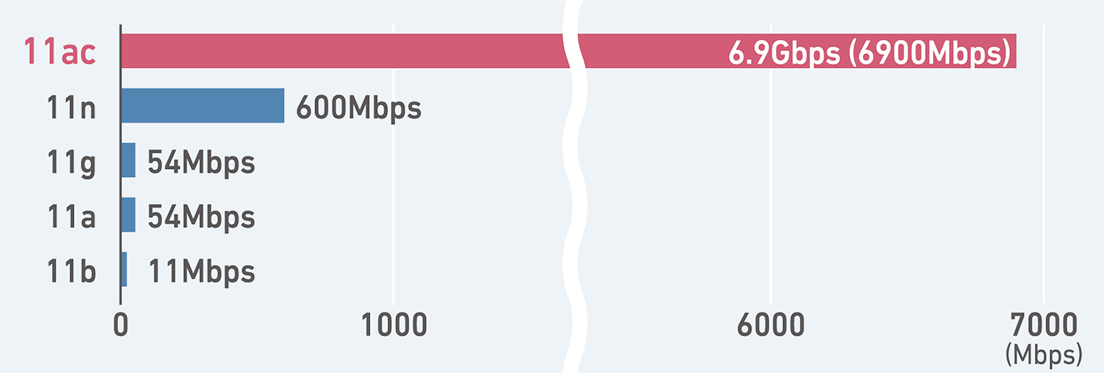

FDR D-EVO III is compatible with 2.4GHz and 5GHz (W52/53/56)*3 spectrum, making the device suitable for outdoors use. Also, the device supports IEEE802.11 ac, the new high-speed wireless LAN.

  • *3 It depends on the regulation of each country which wireless band is allowed to be used.

Improved throughput

Image display speed and cycle time has been improved approximately by 1.5 seconds when wirelessly connected, as compared to our previous FDR D-EVO models.

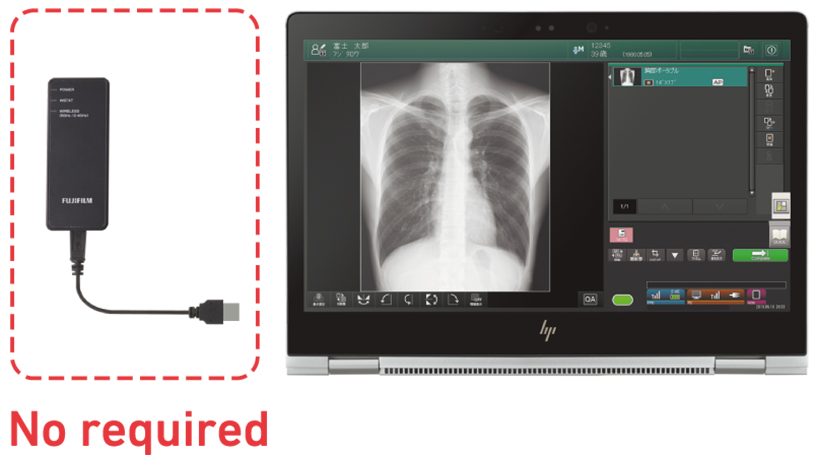

Small AP is no longer required

The small AP required for previous mobile solution is not necessary for the FDR D-EVO III. With just the panel and mobile console, high mobility can be achieved.

Easier transition between systems

FDR D-EVO III enables users to select and switch between systems simply by pressing the button on the back of the panel.

“SmartSwitch” Technology

Fujifilm developed a technology “SmartSwitch” which allows automatic X-ray detection. With SmartSwitch, FDR D-EVO III no longer requires connection between the X-ray generator and DR power supply unit to automatically detect X-rays and start image creation.

*4 Console Advance

Advanced image processing

3D structure analysis technology to support mobile exam

  • * These image processing is achieved with Console Advance.

Virtual Grid

Provides a high quality image without using a grid

Virtual Grid processing corrects for the effects of scatter radiation. Without the need for a grid, Virtual Grid retains high contrast and image sharpness, while preventing the asymmetric density  resulting from misalignment of X-ray tube and detector.*5

Multiple body parts supported

Dynamic Visualization II

Optimizes image quality using latest Exposure Data Recognizer

Advanced recognition algorithms automatically adjust contrast and density for individual body parts based on calculation of estimated 3D image data.*5

  • *5 Option.

Product Name:FDR D-EVO III (Model number : DR-ID 1800)
