FUJIFILM Dimatix, Inc. is a worldwide leader of drop-on-demand inkjet printheads for printing, industrial product decoration, and materials deposition. See below to learn more about each product.
SAMBA®
Commercial print, UV label, flexible packaging, PCB manufacturing, textiles

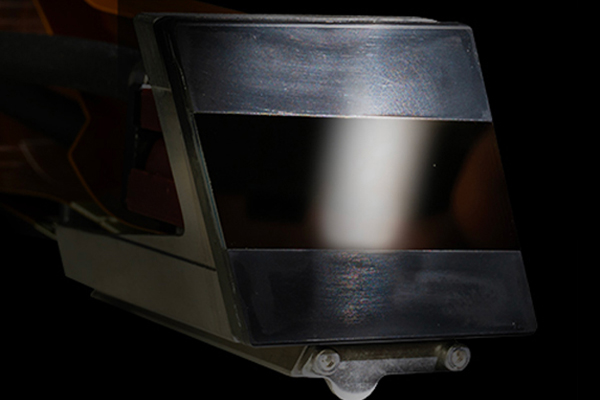

The FUJIFILM Dimatix SAMBA® G3L sets the industry standard in technology to jet ultraviolet, aqueous, latex, solvent, and other inks. The scalable parallelogram design makes it configurable into an infinite variety of printbar widths.
SAMBA's small 2.4 picoliter drop size makes it ideal for commercial print, UV label, flexible packaging, textiles, and PCB manufacturing.
Other features:
-
REDIJET® ink recirculation is a space-efficient technology that brings recirculation all the way to the nozzles to avoid clogging and support fast priming as well as high-speed jetting.
-
Precise dovetail mounting and edge-to-edge stitching enabling narrow printbar designs and compact printing systems.
-
VersaDrop jetting technology delivers high-accuracy, variable-size jetting with high productivity over a wide range of drop sizes in grayscale mode.
Expand OEM manufacturer's ability to assess and use Fujifilm SAMBA® technology

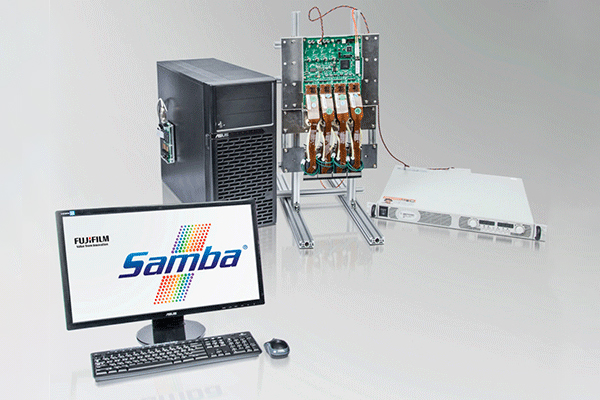

The Fujifilm SAMBA® Printhead Development Kit expands the ability of OEM manufacturers to evaluate SAMBA® technology and determine its functionality in their systems. It supports one to four-color printing with a maximum waveform amplitude of 36V.
The kit includes the major components needed to test new system concepts such as:
- Aligned printbar(s)
- Computer
- Power supply
- Cabling
- Software
- Samba drive electronics
- Electronics package (quad driver boards, fiber data pumps for up to eight printheads, and mounting hardware)
Inkjet system components for OEMs and system integrators
Fujifilm's decades of printing experience have led to the development and creation of SAMBA® JPC - a suite of modules for both aqueous and UV inks. These modules help shorten product development cycles.
Modules include:
- Printing

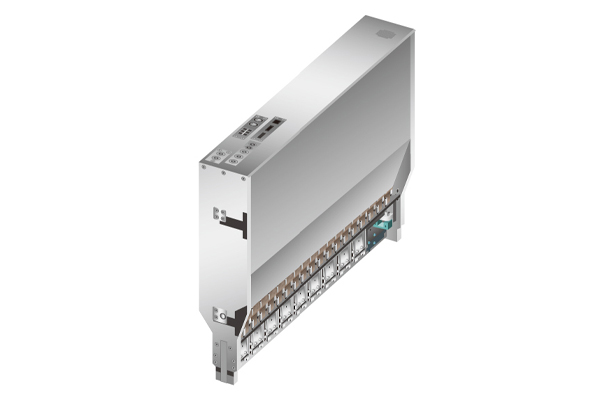

- Printbar
- Ink circulation
- Setup and calibration
- Print Optimization
- Inline scanner and image optimization software
- Timing control unit
- Maintenance
- Anti-collision sensor
- Capping unit
- Head cleaning
With custom printbar widths, advanced inkjet technology, users can create 1200 dpi single-pass print at production speeds.

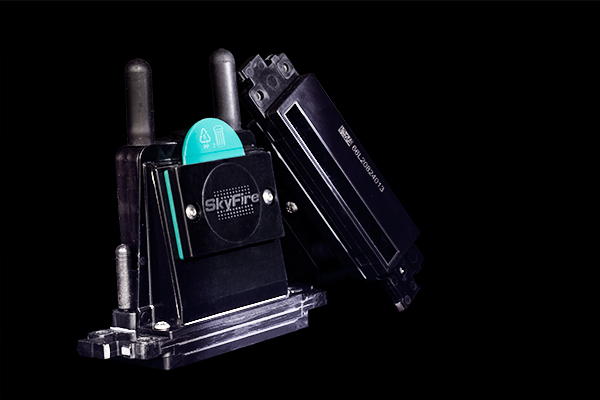

SKYFIRE®
Aqueous, solvent, and UV curable inks in a broad range of applications
With precise drop placement and high ink laydown at high speeds, the FUJIFILM Dimatix SKYFIRE® is designed to support a wide range of inks with maximum productivity.
The SKYFIRE® can be used in either single-pass or scanning applications. The nozzle plate features silicon MEMs technology with the proprietary REDIJET® non-wetting coating.
SKYFIRE's 1536 nozzles produce drop sizes from 5 to 25pL allowing for both fine detail and high-coverage production.
Additional features include:
- VersaDrop binary and grayscale jetting support
- Multi-pulse jetting at speeds over 130 m/min (4 gray levels 600x600 dpi)
- Built-in trimming heater for consistent jetting within the printhead
- Compact design for minimal distance between printheads

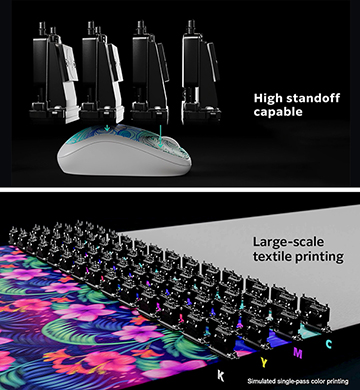

The FUJIFILM Dimatix SKYFIRE® has high standoff capability and the ability to meet the demands of large-scale textile printing.
STARFIRE® SG1024
Textile, wide format, commercial printing, and decorating
This series of fully-repairable industrial printheads is available in one- or two-channel configurations with resolutions up to 400dpi. It is designed for aqueous, solvent, and UV inks.
This FUJIFILM Dimatix STARFIRE® printhead is built with robust construction to withstand high-intensity applications. It features REDIJET® continuous ink recirculation to prevent nozzle clogging. VersaDrop allows multiple drop sizes in binary mode and greyscale capability from one printhead, with no loss to productivity.
Additional features include:
- Two-color models available
- Drop sizes in A-Series models range from 6-200pL
- 1024 individually addressable jets
- Designed with replaceable assemblies
There are several models of this printhead available, depending on the exact configuration of the print system.
The A-Series consists of the following printheads:
Ceramics printing and decorating
The robust construction of the FUJIFILM Dimatix STARFIRE® SG1024 C-Series stands up to the high-heat, high-abrasion world of ceramics printing. These printheads are compatible with oil- and solvent-based ceramic inks. They reach 400 dpi with 1024 independent nozzles printing two colors.
Ink laydown reaches up to 50 grams per square meter at production speeds, meeting industrial demands.
Additional details include:
- Designed with replaceable assemblies
- Drop sizes in C-Series models range from 6-200pL
- VersaDrop grayscale and binary jetting
- REDIJET® continuous ink recirculation
The FUJIFILM Dimatix STARFIRE® SG1024 C-Series for oil- and solvent-based printing on ceramics includes the following models:
Ceramics printing and decorating

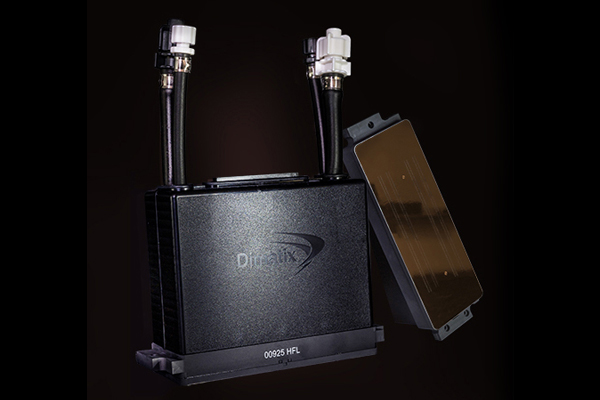

The FUJIFILM Dimatix STARFIRE® SG1024/AQMH-AQLH printheads are built for the rugged environments of industrial ceramics production. Their metal nozzle plates protect against damage and are repairable in case of damage.
The STARFIRE® series offers continuous ink recirculation at 400 dpi and is compatible with modern fluids, which are aqueous-based for sustainability and optimal kiln productivity.
FUJIFILM Dimatix STARFIRE® SG1024 C-Series printheads meet environmental standards for reductions in emissions and volatile organic compounds.
Additional features include:
- Intense, vibrant color production
- 30-200 pL drop size
- Versadrop binary and grayscale jetting
- REDIJET® ink recirculation for fast priming
The FUJIFILM Dimatix C-Series for aqueous-based printing on ceramics includes the following models:
Sand casting and metal sintering

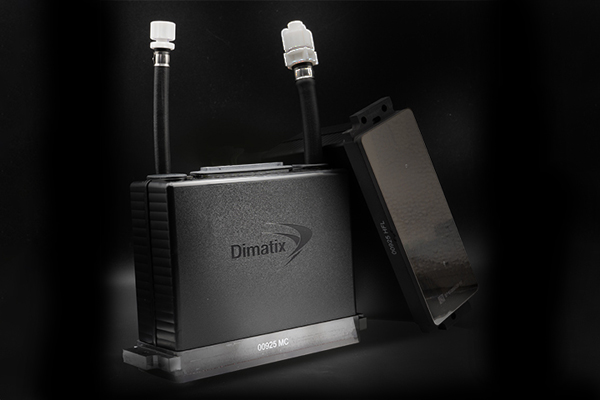

The FUJIFILM Dimatix STARFIRE® SG1024 F-Series printheads are designed to support high-temperature, high-abrasion applications that require aggressive fluids. Field-proven materials deliver consistent output over a long life. The F-Series is commonly used for prototyping and production.
Drop sizes can range from 30-200pL, with a native resolution of 400 dpi. The FUJIFILM Dimatix STARFIRE® F-Series is compatible with UV and aqueous inks, as well as organic solvents.
Additional features include:
- REDIJET® fluid recirculation at the nozzle
- Designed with replaceable assemblies
- Integral temperature sensor
The FUJIFILM Dimatix STARFIRE® F-Series includes the following models:
STARFIRE® SG600
Textiles, packaging, and decorative printing
The FUJIFILM Dimatix STARFIRE® SG600 A-Series printheads offer 600 dpi resolution in assemblies built for demanding graphic and industrial applications. The A-Series is compatible with aqueous, solvent, and UV inks.
These high-performance piezoelectric drop-on-demand printheads have 1536 individually addressable jets, capable of delivering speeds exceeding 120 m/min at 600 dpi.
The FUJIFILM DImatix STARFIRE® are fully repairable, and come equipped with a metal nozzle plate assembly designed to resist damage. They are constructed with field-tested and proven components to deliver long life, including a proprietary metal nozzle plate built to withstand abrasion and damage.
Other features include:
- VersaDrop binary and grayscale jetting
- Patented multi-level REDIJET® ink recirculation
- Precise drop placement accuracy and uniformity
- Two-color configurations available
The FUJIFILM Dimatix STARFIRE® SG600 A-Series includes the following models:
Functional and decorative ceramics
The FUJIFILM Dimatix STARFIRE® SG600 C-Series printheads are drop-on-demand high-performing piezoelectric printheads for one- and two-color printing on ceramics.
With resolutions up to 600 dpi per color and a robust, repairable build, this series is built to withstand the heat and abrasion of ceramics printing. A replaceable metal nozzle plate assembly is designed to resist damage.
Additional features include:
- Designed with replaceable assemblies
- Drop sizes in C-Series models range from 6-80pL
- VersaDrop grayscale and binary jetting
- REDIJET® continuous ink recirculation
The FUJIFILM Dimatix STARFIRE® SG600 C-Series includes the following models:
Q-Class: Sapphire, Emerald, Polaris
Sapphire
Scanning printer architectures and applications
The FUJIFILM Dimatix Sapphire QS-256/10 AAA printhead delivers between 10 and 30 picoliter drops in binary mode, and 10 picoliter drops in grayscale mode.
It can reach a resolution of up to 1200 dpi, and supports UV-curable, solvent, and aqueous inks, as well as associated maintenance fluids.
Additional features include:
- VersaDrop grayscale and binary jetting capability
- Lightweight thin profile
- Integral temperature sensor
Scanning printer architectures and applications
The FUJIFILM Dimatix Sapphire QS-256/30 AAA is widely configurable, with a compact profile and the ability to jet a wide variety of inks. It prints up to 900 dpi using UV-curable, solvent, and aqueous-based inks.
256 individually addressable, inline nozzles are precisely aligned for an easy drop-in replacement.
Additional features include:
- 30 pL nominal drop size
- VersaDrop grayscale and binary jetting modes
- Supports UV-curable, solvent, and aqueous-based inks
- Integral temperature sensor
Scanning printer architectures and applications
The FUJIFILM Dimatix QS-256/80 AAA printhead creates 80 to 200 picoliter drops and a resolution of up to 450 dpi. The modular design and thin profile allows for drop-in replacements with precise alignment.
It supports UV-curable, solvent, and aqueous-based inks.
Additional features include:
- 256 individually addressable, inline nozzles
- VersaDrop grayscale and binary jetting modes
- Integral temperature sensor
- OEM accessible non-volatile memory area for tracking
Emerald
Scanning printer architecture
The FUJIFILM Dimatix Q Class platform is designed to be highly versatile, and that includes the Emerald models. This printhead features 256 individual nozzles that can operate concurrently with low crosstalk and excellent channel-to-channel uniformity.
This printhead delivers precise drop placement accuracy of a wide variety of inks, including UV curable, solvent and aqueous.
Additional features include:
- 30 picoliter nominal drop size
- Resolutions up to 900 dpi
- VersaDrop grayscale and binary jetting modes
- Integral temperature sensor
Scanning printer architectures

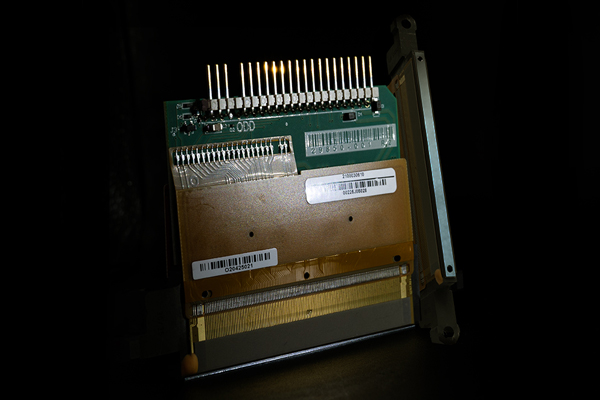

The unique design of FUJIFILM Dimatix's QE-256 printheads allows each 256-channel module to be registered accurately in the field with no specialized equipment. An integral mounting bezel with precision registration points enables drop-in alignment.
Using VersaDrop jetting technology, the printhead is capable of adjustable binary operation at drop sizes up to 200 picoliters.
Additional features include:
- Supports UV-curable, solvent, and aqueous-based inks
- Operates up to 90°C [194°F]
- Dual-ported with minimal wetted surface area
- OEM accessible non-volatile memory area for tracking purposes
Polaris
Industrial and commercial printing applications
The FUJIFILM Dimatix PQ/15 AAA printhead is made with field-proven materials offering a long life and exceptional jetting capability. The printhead has 512 independent channels which provide up to 200 dpi in single color operation. It can be used with UV-curable, solvent, and aqueous-based inks.
The printhead has a 15 pL nominal drop size. With VersaDrop jetting technology, it is capable of adjustable binary operation at drop sizes up to 30 picoliters.
Additional features include:
- Integral mounting bezel with precision features
- Built-in heaters and temperature sensors
- Operation up to 60°C [140°F]
Industrial and commercial printing applications
The FUJIFILM Dimatix PQ-512/35 AAA printhead has a robust structure and a repairable design that makes it ideal for wide format printing in high-performance environments up to 800 dpi.
It supports UV-curable, solvent, and aqueous-based inks with 512 independent channels. The channels are arranged in multiple rows at 200 dots-per-inch spacing for single color operation, or 100 dots-per-inch spacing for two color operation.
Additional features include:
- 35 picoliter nominal drop size
- VersaDrop binary jetting capability
- Built-in heaters and temperature sensors
- Operation up to 60°C [140°F]
Industrial and commercial printing applications
The FUJIFILM Dimatix PQ-512/85 is designed for two-color jetting with an 80 pL native drop size. Using Fujifilm's VersaDrop technology, the printhead can reach drop sizes up to 150 picoliters with resolutions up to 400 dpi.
Each 256-channel module is designed for easy priming, flushing, and ink recirculation.
Additional features include:
- Supports UV-curable, solvent, and aqueous-based inks
- Integral mounting bezel with precision features
- Optimized for high viscosity jetting fluids
- Built-in heaters and temperature sensors
- Operation up to 60°C [140°F]
S-Class
High-performance print up to 900 dpi

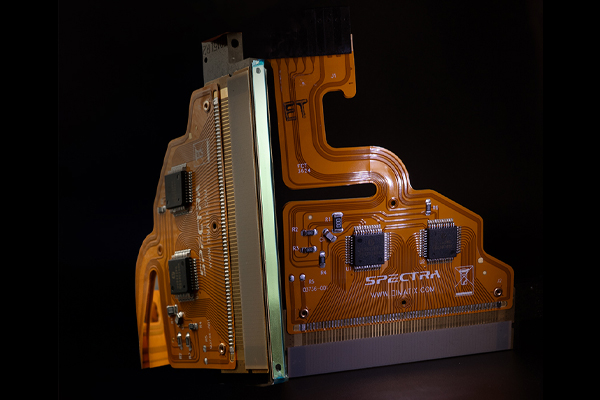

The FUJIFILM Dimatix S-Class SE-120 AA is a 30pL jetting assembly for fast moving applications that require high quality printheads in a minimum of space. It supports solvent and UV-curable inks.
With resolution options that can reach 900 dpi through 128 individual nozzles, the SE-120 AA offers high-quality, finely detailed print options.
Additional features include:
- Orientation independent
- Dual ports for easy flushing
- Optional temperature control
Resolutions up to 600 dpi
With the FUJIFILM Dimatix S-Class series, several mounting configurations are possible. The fluid and electrical connections are at the top of the printhead, allowing the printheads to be tightly spaced for compact system configurations.
The SM-128 AA has a 50 pL calibrated drop size through 128 individually addressable nozzles. It can be installed in any orientation.
Additional features include:
- Ability to jet high viscosity fluids
- Optional temperature control
- Optional deaeration hardware
- Optional head interface board
High-performance print up to 450 dpi
The FUJIFILM Dimatix S-Class SL-128 AA is compatible with a wide range of fluids. With dual ports for easy flushing, it is easy to use and easy to clean. The printheads are built for tight spacing in compact system configurations.
This printhead contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually.
Additional features include:
- 80 picoliter calibrated drop size
- 128 inline nozzles
- Optional temperature control
Galaxy
Wide format graphics, addressing and packaging
The FUJIFILM Dimatix Galaxy JA 256/30 AAA is designed for applications requiring multiple printheads to be packed tightly together. Its narrow profile condenses the printhead footprint, and produces resolutions up to 900 dpi. The Galaxy JA 256/30 AAA supports solvent, UV-curable, and aqueous based inks.
The durable construction supports printing environments up to 90°C [194°F]. It can be installed in any orientation.
Additional features include:
- 28 picoliter calibrated drop size
- 256 individually addressable, inline nozzles
Wide format graphics, addressing, and packaging
The FUJIFILM Dimatix Galaxy JA 256/50 AAA printhead features four electrically independent piezoelectric slices, each with 64 addressable channels. They combine to provide 256 jets, which can reach resolutions of up to 600 dpi.
This printhead has serial-to-parallel converters for jet selection; all jets can be fired simultaneously or individually. It supports solvent, UV-curable, and aqueous based inks.
Additional features include:
- 50 picoliter calibrated drop size
- Operation up to 90°C [194°F]
- Optional temperature control
Wide format graphics, addressing, and packaging

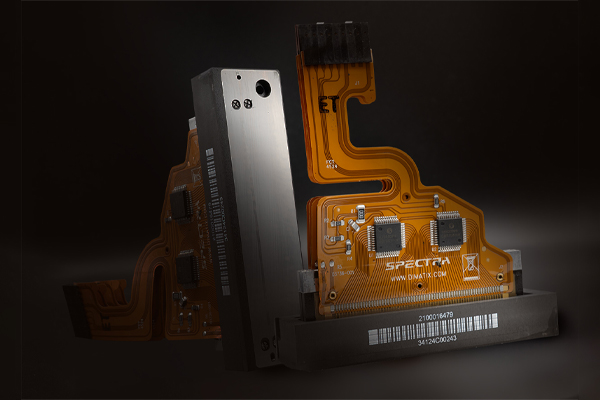

The FUJIFILM Dimatix Galaxy JA 256/80 AAA has a slim profile capable of several mounting configurations. The narrow width permits the printhead space to be condensed. It supports solvent, UV-curable, and aqueous-based inks.
The dual ported fluid interface is capable of a quick change from drying fluids with inert fluids during non-use, and flushing for quick change-overs during printing.
Additional features include:
- 80 picoliter calibrated drop size
- Resolutions up to 450 dpi
- Optional temperature control
Wide format graphics, addressing, and packaging
With high-speed, high-production capability, the FUJIFILM Dimatix Galaxy PH 256/30 AAA printhead reaches resolutions up to 900 dpi. It offers complete fluid support for solvent, UV-curable and aqueous inks.
The 256 jets are arranged in a single line at a 0.010 inch distance between nozzles for fine detail, even on large format printing. The printhead can be installed in any orientation.
Additional features include:
- 28 picoliter calibrated drop size
- Head Interface Board for serial data transmission
- Ink reservoir, deaeration system, and fluid filter
Hot melt applications
The FUJIFILM Dimatix Galaxy PH 256/30 HM is an inkjet printhead for hot melt printing, including applications such as printing on food. It can reach resolutions up to 900 dpi.
Its excellent channel-to-channel uniformity and high-frequency continuous operation make it ideal for industrial environments.
Additional features include:
- 28 picoliter calibrated drop size
- Head Interface Board for serial data transmission
- Ink reservoir, deaeration system, and fluid filter
- Ink level sensor
Wide format graphics, addressing and packaging
The FUJIFILM Dimatix Galaxy Printhead 256/50 AAA supports a wide range of printing applications. With a minute 0.010 inch distance between 256 nozzles, the printhead can create detailed work with up to 600 dpi resolution. It can be installed in any orientation.
The jetting assembly contains serial-to-parallel converters for selecting which jets to fire. The printhead supports solvent, UV-curable, and aqueous based ink.
Additional features include:
- 50 picoliter calibrated drop size
- High viscosity jetting
Hot melt applications
The FUJIFILM Dimatix Galaxy PH 256/80 HM jets hot melt fluid with 80 pL drops, reaching resolutions up to 450 dpi. It can be installed in any orientation.
The advanced design maintains a meniscus vacuum, to prevent weeping and air ingestion. An on-head reservoir with an integrated filter and fluid level sensor maintains tight control over the fluid supply.
Additional features include:
- 256 individually addressable, inline nozzles
- Head Interface Board for serial data transmission
- High viscosity hot melt jetting
Nova
Wide format graphics, textiles, addressing and packaging
The FUJIFILM Dimatix Nova JA 256/80 AAA offers high-quality resolutions up to 450 dpi. It supports applications using solvent, UV-curable or aqueous inks. It can be installed in any orientation.
The slim profile is designed specifically for applications using a variety of jetting fluids. It allows the printheads to be installed precisely with minimal space requirements.
Additional features include:
- 75 picoliter calibrated drop size
- 256 individually addressable, inline nozzles
- Operation up to 90°C [194°F]
Wide format graphics, addressing, and packaging
The FUJIFILM Dimatix Nova PH 256/80 AAA features four electrically independent piezoelectric slices with a total of 256 jets. The nozzles are arranged in a single line at a 0.011 inch distance between nozzles.
The printhead can be installed in any orientation. It supports solvent, UV-curable, or aqueous inks at resolutions up to 450 dpi.
Additional features include:
- 75 picoliter calibrated drop size
- Head interface board for serial data transmission
- Ink reservoir, deaeration system, and fluid filter

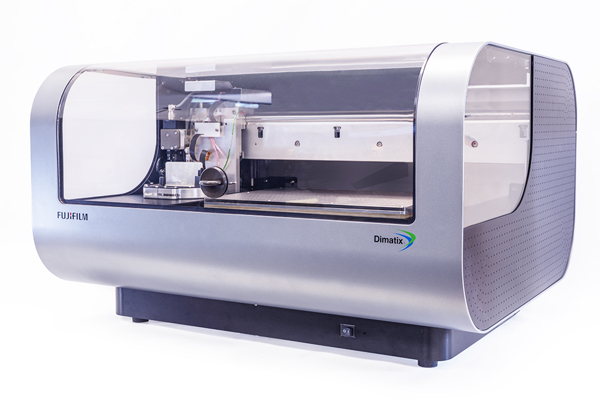

DMP (Dimatix Materials Printer)
The FUJIFILM Dimatix Materials Printer (DMP) is a leading inkjet research tool used by scientific and academic facilities around the world. It is a cost-effective, easy-to-use precision materials deposition system.
The DMP features the world’s first MEMS-based cartridge-style printhead that allows users to conveniently test their own fluids. With a capacity of 1.5mL, these cartridges minimize waste, which is important when experimenting with limited quantities of trial fluids.
Ideal applications include:
- Material and fluid development
- Prototyping
- Product development
- Evaluation of numerous fluids
