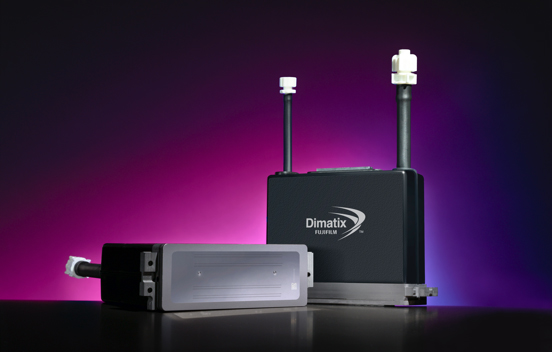

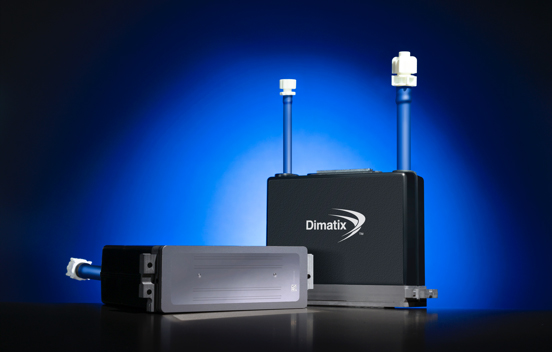

The FUJIFILM Dimatix STARFIRE SG1024 A-Series printheads have resolutions up to 400 dpi, with drop sizes ranging from 6 to 200pL using 1024 individually addressable jets. Single and two-channel options are available.
The A-Series features compact, self-contained units built to withstand demanding applications. It uses field proven materials to deliver consistent output over a long service life.
Using REDIJET® ink recirculation, ink is always moving throughout the A-Series printheads. That means printheads are always ready to print, giving users improved startup and restart time and optimized image quality.
Fujifilm printheads are built with VersaDrop technology, allowing multiple drop sizes in binary and greyscale modes from one printhead. Different drop sizes can arrive at the substrate simultaneously.
The A-Series printheads are equipped with a single replaceable metal nozzle plate that is designed to withstand abrasion and resist damage. These units are compatible with solvent, UV-curable and aqueous ink formulations.
| XSA | SA | MA | LA | SA2C | MA2C | LA2Ci | |
|---|---|---|---|---|---|---|---|
| Number of addressable jets/module | 1024 | ||||||
| Print width | 64.96mm (2.55in) | ||||||
| Native resolution | 400 (200 2C configuration) | ||||||
| Native drop size/largest drop size (pL) | 6/20 | 12/33 | 30/80 | 80/200 | 12/33 | 30/80 | 80/200 |
| VersaDrop Max Productivity (ng-kHz) | 300 | 600 | 900 | 1500 | 600 | 900 | 1500 |
| Firing Frequency (kHz) | 50/18 | 50/18 | 30/12 | 20/8 | 50/18 | 30/12 | 20/8 |
| Nozzle Plate technology | Metal | ||||||
| Compatible jetting fluids | UV-curable, organic solvents, and aqueous inks | ||||||
| Viscosity Range (cP) | 8-20 (10-14 for highest productivity) | ||||||
| Temperature Control | Yes | ||||||
| Inkjet operating temperature range | Up to 50° C / 122° F | ||||||
| Integrated Temperature Sensor | Included | ||||||
| OEM Accessible non-volatile memory | 64-byte rewritable | ||||||
Product characteristics and depictions are not drawn to scale and are general illustrations only. Technical specifications above may vary based on usage conditions and overall system environment.
For design and engineering work using this STARFIRE printhead, please contact FUJIFILM Dimatix Technical Support for the appropriate production manual containing full product specifications
