Mini 4300 Series Industrial Inkjet Printbar System

Mini 4300 Series Industrial Inkjet Printbar System

TEXT | GRAPHICS | RFID | QR | BARCODES

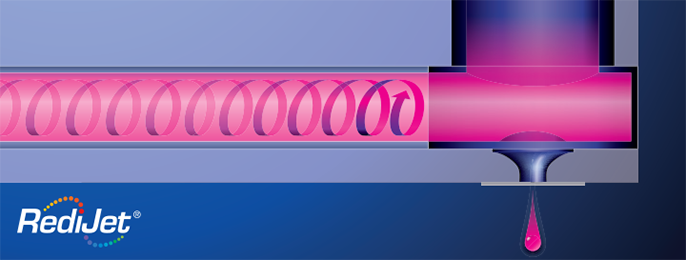

The patented RediJet recirculation system ensures printbars are quickly primed, resulting in faster print time, minimal waste and improved reliability.

Mini 4300 Printbar

*capabilities may vary depending on application

Printbars

Up to 4 discrete printbars

Weight

8.8 Kg [19.4 lbs.]

Dimensions

581 x 190.5 x 92 mm [22.87 x 7.5 x 3.6 in.]

Line Speed

up to 1000 fpm [300 m/min]*

Print width per printbar

Single head wide 40.6 mm. [1.6 in.]

Input image file format

TIFF, PDF

Smallest font

4 pt*

Normal drop size

3 pl

Compatible fluids

dye/pigment based fluids, whites, protective/decorative varnishes, functional fluids

Control Cabinet

Dimension

764.7 x 223.4 x 762 mm [30.1 x 8.8 x 30 in.]

Weight

39 kg [86 lbs.]

Input

Universal 110–240 single phase VAC 50/60 Hz

I/O

Remote and client

Max current draw

6.3A

Max printbar support

4

Waveform

4 independent

PC/Software

PC Interfaces

GUI or remote application over IP

Control System

Windows® 10 graphical user interface

Variable data

Yes
