The content on this page is intended to healthcare professionals and equivalents.
Compatible with low temperature plasma sterilisation*1.
- Field of view
120°
- Viewing direction
0°(Forward)
- Observation range
2-50mm
- Distal end diameter
4.1mm
- Insertion tube diameter
4.1mm
- Minimum diameter of instrument channel
2.0mm
- Bending capability
UP 210° / DOWN 130°
- Working length
600mm
- Total length
880mm
- Sterilization
STERRAD / EOG
- Product : Video endoscope EB-710P
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable
Compatible with low temperature plasma sterilisation*1.
- Field of view
120°
- Viewing direction
0°(Forward)
- Observation range
2-50mm
- Distal end diameter
5.8mm
- Insertion tube diameter
6.1mm
- Minimum diameter of instrument channel
3.2mm
- Bending capability
UP 180°/ DOWN 130°
- Working length
600mm
- Total length
880mm
- Sterilization
STERRAD / EOG
- Product : Video endoscope EB-710XT
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable
- *1 STERRAD® Systems provided by Advanced Sterilization Products, Inc.
High-resolution bronchoscope with improved operability thanks to 210°upward bending capability and 2.2mm diameter instrument channel.
- Field of view
120°
- Observation range
2-100mm
- Distal end diameter
5.3mm
- Insertion tube diameter
5.1mm
- Minimum diameter of instrument channel
2.2mm

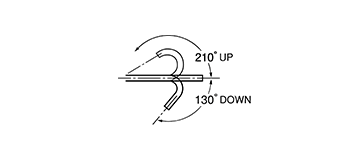

- Bending capability
UP 210° / DOWN 130°
- Working length
600mm
- Total length
870mm
- Product : Video Endoscope
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable
![[image] Tip of scope with parts - light guides, objective lens, instrument channel](https://asset.fujifilm.com/www/mx/files/2024-07/cc3ba840c8d4a23f58d3b88fdfb1696d/fig_bronchoscopes_01.jpg)
![[image] Scope moves 210 degrees up and 130 degrees down](https://asset.fujifilm.com/www/mx/files/2024-07/d5b88d168d29c6fb9a4930413b4fee14/fig_bronchoscopes_02.jpg)
![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/mx/files/2024-07/faa3dd0cfa50d7bcf806cf3ddabbfc8b/fig_bronchoscopes_03.jpg)
High-resolution bronchoscope to support efficient treatment.
- Field of view
120°
- Observation range
2-100mm
- Distal end diameter
5.8mm
- Insertion tube diameter
5.9mm
- Minimum diameter of instrument channel
2.8mm

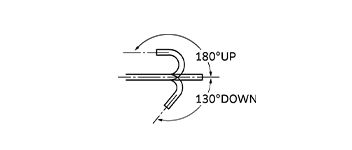

- Bending capability
UP 180° / DOWN 130°
- Working length
600mm
- Total length
870mm
- Product : Video Endoscope
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable
![[image] Tip of scope with parts - light guides, objective lens, instrument channel](https://asset.fujifilm.com/www/mx/files/2024-07/c31ab9989fd0eda118447c522e44307b/fig_bronchoscopes_04.jpg)
![[image] Scope moves 180 degrees up and 130 degrees down](https://asset.fujifilm.com/www/mx/files/2024-07/59741d768efb9bd37b8a8ae6f621ff75/fig_bronchoscopes_05.jpg)
![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/mx/files/2024-07/c7bd50a6c405e7f75ad42b2f4712d3f5/fig_bronchoscopes_06.jpg)
Slim type bronchoscope with a 3.8mm slim distal end diameter, suitable for pediatric bronchoscopy.
- Field of view
120°
- Observation range
3-100mm
- Distal end diameter
3.8mm
- Insertion tube diameter
3.8mm
- Minimum diameter of instrument channel
1.2mm
- Bending capability
UP 180° / DOWN 130°
- Working length
600mm
- Total length
890mm
- Product : Video Endoscope
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable
![[image] Tip of scope with parts - light guides, objective lens, instrument channel](https://asset.fujifilm.com/www/mx/files/2024-07/8ed8869260db0dd98ef0cf6d52556d2b/fig_bronchoscopes_07.jpg)
![[image] Scope moves 180 degrees up and 130 degrees down](https://asset.fujifilm.com/www/mx/files/2024-07/d42bcf4dc5b80773133d63514737707b/fig_bronchoscopes_08.jpg)
![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/mx/files/2024-07/71a6615b17c069b98cb360939e8b9bf2/fig_bronchoscopes_09.jpg)
