Our unique folded lens with ultra-short throw and a wide lens-shift range are compact body, large-screen offer to create a sense of space.
Our revolutionary projector FP-Z5000
Product Feature 1
Projection can be made in various directions just by rotating the lens.
The world's first*1 folded two-axial rotatable lens is adopted. Just by switching the lens up and down, left and right, or front and back without rotating the unit, the projection can be achieved in all directions, either on the wall and screen or on ceiling and floor. Under the simple rotation of the lens, the vertical "portrait projection" can also be realized.
Product Feature 2
The highest level*1 of lens shift range in ultra-short throw projector market
Adopting the large-diameter aspherical lens, the highest level of lens shift range is realized. The position of the projected image can be adjusted within a wide range of ±82% vertically and ±35% horizontally (in 16:9 transverse projection). At the same time, a memory function is equipped to memorize the lens position corresponding to each direction.
A 100-inch projection can be achieved from the nearest projection distance of 75cm*2. Equipped with an ultra-short throw lens with the projection ratio TR*3 of 0.34, the maximum of 300-inch projection can be achieved from a short distance. Reducing the space between the projector and the screen, the construction can be done to make maximum use of exhibition space.
With ultra-short throw lens and the largest lens shift range
Optical zoom x1.1/Vertical direction supported /Suppress image distortion
FUJINON bending method
(folded two-axial rotatable type)

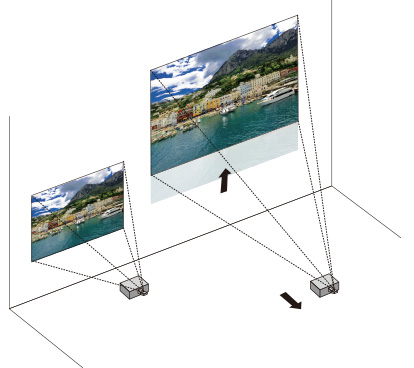

In projection magnification, even if the projector is farther from the screen, the image will not shift upwards.
Traditional Mirror method
(concave or convex mirror x 1 piece)
In projection magnification, if the projector is farther from the screen, the image will shift upwards.
Product Feature 3
The projector can be placed vertically or horizontally.
After use, the lens can be retracted and the unit is compact.
As the projector can be placed vertically or horizontally, the way for its placement*4 can be selected in combination with the operating environment. It is a small unit with a thickness of 108mm. The retracted lens perfectly fits the projector body.
Fujifilm releases "FUJIFILM PROJECTOR Z5000 WHITE".*5
Suitable Colour for the use in museums, galleries,the space with white wall.
