[photo] Fujifilm Z Projector FP-Z5000

Projector FP-Z5000

NEW Discontinued

Thanks to its small size and freely adjustable lens, the FP‑Z5000 can be installed for use in narrow corridors or rooms with low ceilings. Use it indoor events, shop displays, or way markers. This is 5000lm of projector.

Download Catalog and Manuals

Main Specifications

Model name

FP-Z5000-B (Black)
FP-Z5000-W (White)

DLP chip

Size: 0.65-inch, 16:9 aspect ratio
Display method: 1Chip DLP
Resolution: 2,073,600 pixel(1920×1080)

Lens

Type: Folded two-axial rotatable lens
Shift: Electrical: Vertical ±82%, Horizontal ±35%
Zoom: Electrical: x1.0 - x1.1
Throw ratio(TR)*1: 0.34 (Wide) - 0.37 (Telephoto)
Focal length:f=5.0mm (Wide)- 5.5mm (Telephoto)
F No.: F2.4 (Wide) - F2.49 (Telephoto)

Keystone correction range

Vertical ±5°/ Horizontal ±5°

Light source

Laser diode

Brightnes [ANSI Im*2]

5,000lm

Light output half time*3

Up to about 20000 hours

Contrast ratio*4

12,000:1

Projected image size

70-300 inches

Speaker

10W × 1

Maximum display resolution (WxH)

1920 × 1080

Video IN terminals

① HDMI 1 IN HDMI 1.4 (Compatible with HDCP 1.4)
② HDMI 2 IN HDMI 1.4 (Compatible with HDCP 1.4)
③ HDMI 3 IN HDMI 1.4 (Compatible with HDCP 1.4)
④ HDBaseT IN*5  RJ-45 for video/audio

Control IN/OUT terminals

⑤ LAN*5 RJ-45 for network connection (10BASE-T/100Base-TX)

Audio IN/OUT terminals

-

Other

⑥ USB 1 Type A, DC5V
⑦ USB 2 miniB for maintenance

Warping /
Edge blending function

-

Power supply

AC 100-240V 50/60Hz

Power consumption

700W Normal: 550W,  Eco: 380W

Power consumption (during standby)

Approx.0.5W, Network standby Approx.3.0W

Dimensions

470mm (W) × 375mm (D) × 108mm (H) (excluding adjustable feet)

Weight

Approx.12.5 kg (27.6 lb)

Noise level*6

Normal: 46dM,  Eco: 40dB

Operating temperature

0-40℃ (32-104℉)

Accessories included

Power cord 3.0m (9.8ft)
HDMI cable 1.8m (5.9ft)
Lens cap
Vertical installation stand (2 pcs)
Remote control
Remote control battery (AAA type ×2)
Basic manual

  • *1 The "throw ratio" (TR) is the ratio of throw distance to screen width.
  • *2 The average value for this model at shipment, according to ANSI standards.
  • *3 The estimated time taken for brightness to drop by half. Varies with the operating environment and conditions of use.
  • *4 Assumes that "dynamic contrast" (FP-Z8000) or "dynamic black" (FP-Z5000) is on.
  • *5 The FP-Z5000 is equipped with a single RJ-45 connector and does not support simultaneous HDBaseT and Ethernet connections.
  • *6 The average value for this model at shipment.
  • * Optional accessories: ceiling mount, dedicated storage case
  • * The projectors are Class 1 laser products. Do not look directly into the beam.
  • * PJ Link is a trademark registered in Japan, the United States, and other countries.
  • * HDBaseT, the HDBaseT logo, and the HDBaseT Alliance are trademarks in Japan and other countries.
  • * DLP and the DLP logo are registered trademarks of Texas Instruments.
  • * HDMI is a trademark or registered trademark of HDMI Licensing LLC in the United States and other countries.
  • * Crestron, Crestron RoomView, Crestron Conneted, and the Crestron Connected logo are registered trademarks of Crestron Electronics, Inc. in the United States.

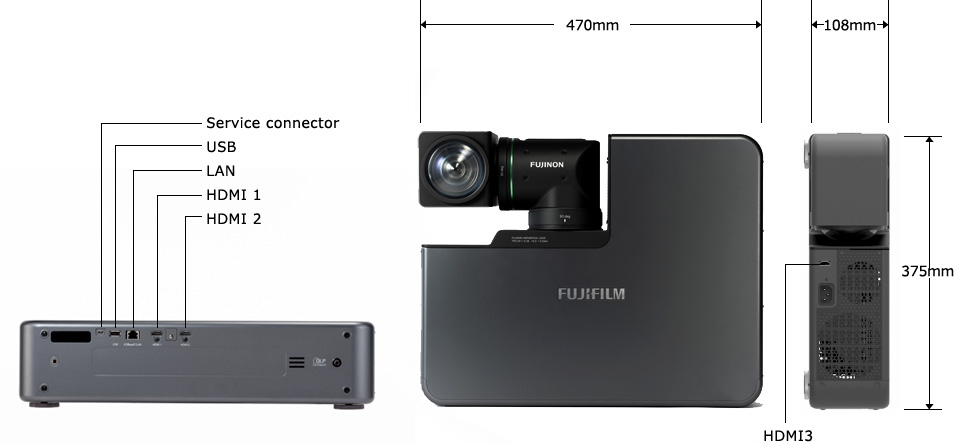

Dimension

Interface Connectors
External Dimensions

* Product specifications and appearance are subject to change without advance notice.

Projection Distance

[image] Schematic of Horizontal Projection Range depending on position in room
[image] Schematic of highest and lowest lens shift

■Table of Horizontal Projection Distances

【Aspect Ratio 16: 9】

16:9 Screen ① Projection distance (cm) ② Lens shift (cm)
Size (inches) Width (cm) × Height (cm) Wide - Tele Lowest - Highest
70 155 × 87 52 - 57 -115 - 28
80 177 × 100 59 - 65 -131 - 32
90 199 × 112 67 - 74 -148 - 36
100 221 × 125 75 - 82 -164 - 40
120 266 × 149 90 - 99 -197 - 48
150 332 × 187 113 - 124 -247 - 60
200 443 × 249 151 - 166 -329 - 80
250 553 × 311 189 - 208 -411 - 100
300 664 × 374 227 - 250 -493 - 120

【Aspect Ratio 16: 10】

16:10 Screen ① Projection distance (cm) ② Lens shift (cm)
Size (inches) Width (cm) × Height (cm) Wide - Tele Lowest - Highest
70 151 × 85 56 - 62 -112 - 27
80 172 × 97 64 - 71 -128 - 31
90 194 × 109 72 - 80 -144 - 35
100 215 × 121 81 - 89 -160 - 39
120 258 × 145 97 - 107 -192 - 47
150 323 × 182 122 - 134 -240 - 58
200 431 × 242 163 - 179 -320 - 78
250 538 × 303 204 - 225 -400 - 97
300 646 × 363 245 - 270 -480 - 116

【Aspect Ratio 4: 3】

4:3 Screen ① Projection distance (cm) ② Lens shift (cm)
Size (inches) Width (cm) × Height (cm) Wide - Tele Lowest - Highest
60 122 × 91 54 - 60 -121 - 29
70 142 × 107 64 - 70 -141 - 34
80 163 × 122 73 - 80 -161 - 39
90 183 × 137 82 - 91 -181 - 44
100 203 × 152 92 - 101 -201 - 49
120 244 × 183 110 - 121 -241 - 59
150 305 × 229 138 - 152 -302 - 73
200 406 × 305 185 - 203 -402 - 98
240 488 × 366 222 - 244 -483 - 117
[image] Schematic of highest and lowest lens shift
[image] Schematic of Vertical Projection Range dependent on center of lens in room

■Table of Vertical Projection Distance

【Aspect Ratio 16: 9】

16:9 Screen ① Projection distance (cm) ② Lens shift (cm)
Size (inches) Width (cm) × Height (cm) Wide - Tele Lowest - Highest
70 87 × 155 52 - 57 -132 - -23
80 100 × 177 59 - 65 -151 - -27
90 112 × 199 67 - 74 -169 - -30
100 125 × 221 75 - 82 -188 - -33
120 149 × 266 90 - 99 -226 - -40
150 187 × 332 113 - 124 -282 - -50
200 249 × 443 151 - 166 -376 - 66
250 311 × 553 189 - 208 -470 - -83
300 374 × 664 227 - 250 -565 - -100

【Aspect Ratio 16: 10】

16:10 Screen ① Projection distance (cm) ② Lens shift (cm)
Size (inches) Width (cm) × Height (cm) Wide - Tele Lowest - Highest
70 85 × 151 56 - 62 -134 - -17
80 97 × 172 64 - 71 -153 - -19
90 109 × 194 72 - 80 -172 - -22
100 121 × 215 81 - 89 -191 - -24
120 145 × 258 97 - 107 -230 - -29
150 182 × 323 122 - 134 -287 - 36
200 242 × 431 163 - 179 -383 - -48
250 303 × 538 204 - 225 -479 - -60
300 363 × 646 245 - 270 -574 - -72

【Aspect Ratio 4: 3】

4:3 Screen ① Projection distance (cm) ② Lens shift (cm)
Size (inches) Width (cm) × Height (cm) Wide - Tele Lowest - Highest
60 91 × 122 54 - 60 -118 - -4
70 107 × 142 64 - 70 -137 - -5
80 122 × 163 73 - 80 -157 - -5
90 137 × 183 82 - 91 -177 - -6
100 152 × 203 92 - 101 -196 - -7
120 183 × 244 110 - 121 -236 - -8
150 229 × 305 138 - 152 -295 - -10
200 305 × 406 185 - 203 -393 - -14
240 366 × 488 222 - 244 -471 - -16

*refers to % difference between the approximate calculation and the numbers in the above table.

*refers to % difference between the approximate calculation and the numbers in the above table.

Supported resolutions

HDMI

Resolution Signal Refresh rate (Hz)
VGA 640x480 60
SVGA 800x600 60
XGA 1024x768 60
WXGA 1280x768 60
1280x800 60
1366x768 60
SXGA 1280x960 60
1280x1024 60
SXGA+ 1400x1050 60
WXGA+ 1440x900 60
WSXGA+ 1680x1050 60
UXGA 1600x1200 60
WUXGA 1920x1200 60
SDTV(480i) 720x480 60
SDTV(480p) 720x480 60
SDTV(576i) 720x576 50
SDTV(576p) 720x576 50
HDTV(720p) 1280x720 60/50
HDTV(1080i) 1920X1080 60/50
HDTV(1080p) 1920x1080 60/50
