New Zealand

6000 System

NEW

Multi-LED Endoscope System.

The content on this page is intended to healthcare professionals and equivalents.

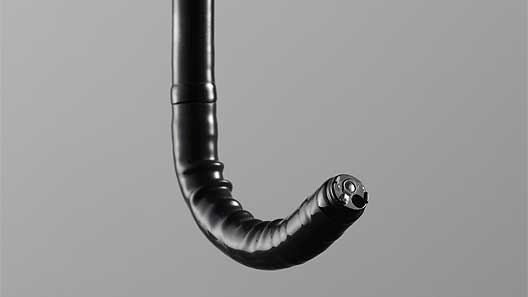

EG-720R

Field of view

140°

Viewing direction

0° (Forward)

Observation range

2〜100 mm

Bending capability

UP: 210° / DOWN: 90° / RIGHT: 100° / LEFT: 100°

Working length

1,100 mm

Total length

1,400 mm

Distal end diameter

9.2 mm

Insertion tube diameter

9.3 mm

Minimum instrument channel diameter

2.8 mm

Image size

Super image

Product name: Video Endoscope   GMDN: 38805
Generic name: Flexible video gastroduodenoscope

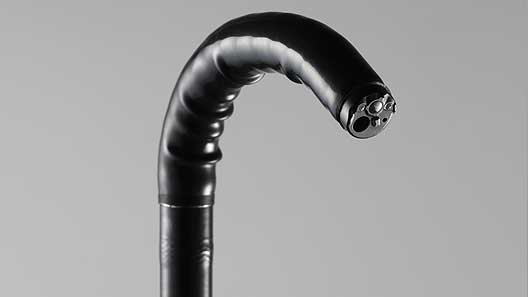

EC-720R/M, EC-720R/I, EC-720R/L

Field of view

170°

Viewing direction

0° (Forward)

Observation range

2〜100 mm

Bending capability

UP: 180° / DOWN: 180° / RIGHT: 160° / LEFT: 160°

Working length

1,330 mm(M) / 1,520 mm(I) / 1,690 mm(L)

Total length

1,630 mm(M) / 1,820 mm(I) / 1,990 mm(L)

Distal end diameter

12.8 mm

Insertion tube diameter

12.8 mm

Minimum instrument channel diameter

3.8 mm

Image size

Super image

Product name: Video Endoscope   GMDN: 36117
Generic name: Flexible video colonoscope , reusable

Compatible Endoscopes

Conventional 500 *1 / 600 system scopes can also be used.

700 system scopes
600 system scopes
500 system scopes *1 580 series scopes
  530 series scope *2
  • *1  Excluding 590 series scope.
  • *2  Excluding EG-530UT2, EG-530UT, EG-530UR2 and EG-530UR

Available observation mode

  White light BLI BLI-bright LCI FICE
700 system scopes
500/600 system scopes - - -



Accessories (Valve, Tank)

For routine examination

Air/Water Valve
NEW

AW-603

Suction Valve
NEW

SB-605

Water Tank
NEW

WT-603

Used with CO2 Regulator “GW-100”

Gas/Water Valve
NEW

AW-604G

Water Tank
NEW

WT-604G
