Colonoscopes

NEW

Lower G.I. tract scope line up  support  wide range of examinations and treatments.

The content on this page is intended to healthcare professionals and equivalents.

EC-600W

Viewing direction

0°(Forward)

Field of view

140°

Observation range

2-100mm

Distal end diameter

12.0mm

Insertion tube diameter

12.0mm

Minimum diameter of instrument channel

3.8mm

Bending capability

UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°

Working length

EC-600W/M
1,330mm

EC-600W/I
1,520mm

EC-600W/L
1,690mm

Total length

EC-600W/M
1,630mm

EC-600W/I
1,820mm

EC-600W/L
1,990mm

Water Jet

Available

  • Product: Video Endoscope
  • GMDN: 36117
  • Generic name: Flexible video colonoscope, reusable

EC-600ZW

Viewing direction

0°(Forward)

Field of view

Normal: 140° / Closest: 56°

Observation range

1.5-100mm
Normal: 3-100mm
Closest: 1.5-2.5mm

Distal end diameter

12.8mm

Insertion tube diameter

12.8mm

Minimum diameter of instrument channel

3.8mm

Bending capability

UP 180° / DOWN 180°
RIGHT 160° / LEFT 160

Working length

EC-600ZW/M
1,330mm

EC-600ZW/L
1,690mm

Total length

EC-600ZW/M
1,630mm

EC-600ZW/L
1,990mm

  • Product: Video Endoscope
  • GMDN: 36117
  • Generic name: Flexible video colonoscope, reusable

EC-580RD

Viewing direction

0°(Forward)

Field of view

140°

Observation range

3-100mm

Distal end diameter

9.8mm

Insertion tube diameter

10.5mm

Minimum diameter of instrument channel

3.2mm

Bending capability

UP 210° / DOWN 160°
RIGHT 160° / LEFT 160°

Working length

EC-580RD/M
1,330mm

EC-580RD/L
1,690mm

Total length

EC-580RD/M
1,630mm

EC-580RD/L
1,990mm

Water Jet

Available

  • Product: Video Endoscope
  • GMDN: 36117
  • Generic name: Flexible video colonoscope, reusable

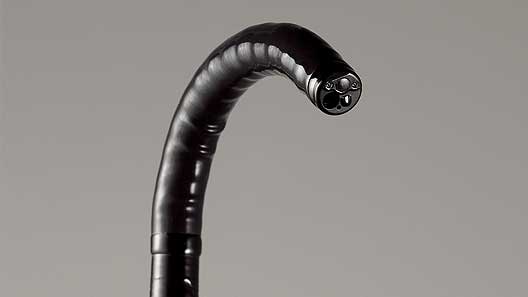

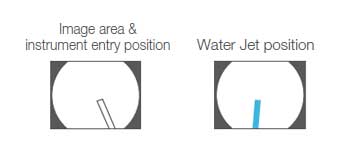

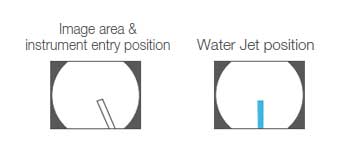

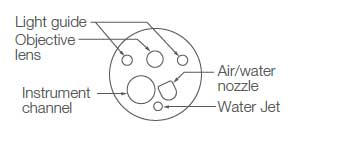

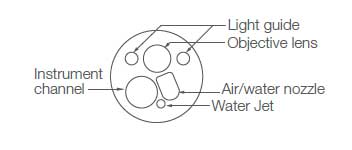

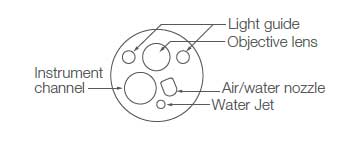

EC-760R-V, EC-760P-V, EC-760S-V

Viewing direction

0°(Forward)

Field of view

170°

Observation range

2-100mm

Distal end diameter

EC-760R-V
12.0mm

EC-760P-V
11.1mm

EC-760S-V
12.8mm

Insertion tube diameter

EC-760R-V
12.0mm

EC-760P-V
11.5mm

EC-760S-V
12.8mm

Minimum diameter of instrument channel

EC-760R-V
3.8mm

EC-760P-V
3.2mm

EC-760S-V
3.8mm

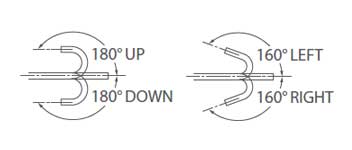

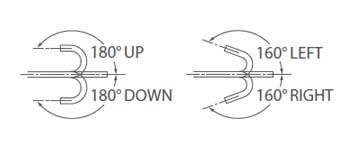

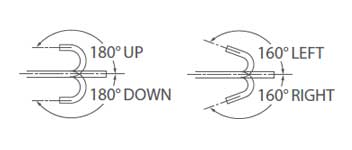

Bending capability

UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°

Working length

EC-760R-V/M,I,L
1,330mm / 1,520mm / 1,690mm

EC-760P-V/M,L
1,330mm / 1,690mm

EC-760S-V/L
1,690mm

Total length

EC-760R-V/M,I,L
1,650mm / 1,840mm / 2,010mm

EC-760P-V/M,L
1,650mm / 2,010mm

EC-760S-V/L
2,010mm

Water Jet

Available

  • Product: Video Endoscope
  • GMDN: 36117
  • Generic name: Flexible video colonoscope, reusable

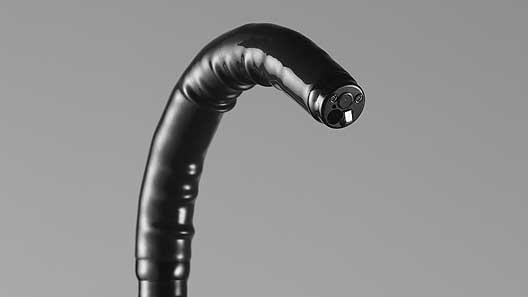

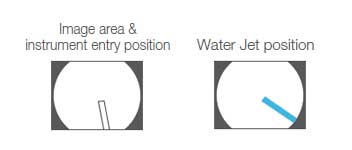

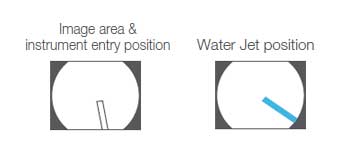

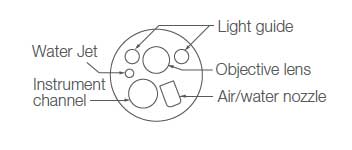

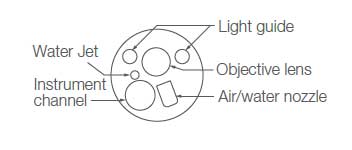

EC-760Z, EC-760ZP-V

Viewing direction

0°(Forward)

Field of view

Normal: 140° / Closest: 56°

Observation range

1.5-100mm
Normal: 3-100mm
Closest: 1.5-2.5mm

Distal end diameter

EC-760Z-V
12.8mm

EC-760ZP-V
11.7mm

Insertion tube diameter

EC-760Z-V
12.8mm

EC-760ZP-V
11.8mm

Minimum diameter of instrument channel

EC-760Z-V
3.8mm

EC-760ZP-V
3.2mm

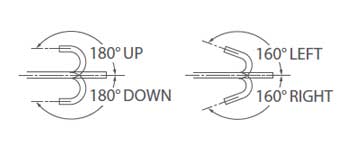

Bending capability

UP 180° / DOWN 180°
RIGHT 160° / LEFT 160

Working length

EC-760Z-V/M,L
1,330mm / 1,690mm

EC-760ZP-V/M,L
1,330mm / 1,690mm

Total length

EC-760Z-V/M,L
1,650mm / 2,010mm

EC-760ZP-V/M,L
1,650mm / 2,010mm

Water Jet

Available

  • Product: Video Endoscope
  • GMDN: 36117
  • Generic name: Flexible video colonoscope, reusable

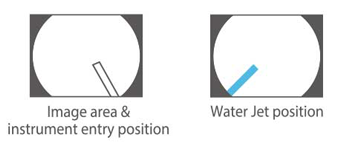

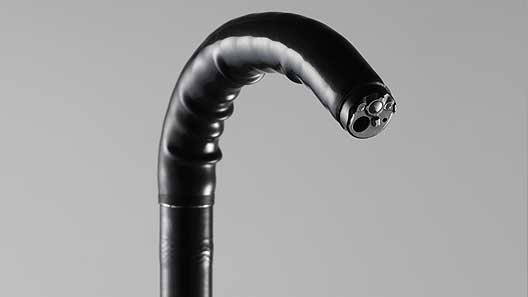

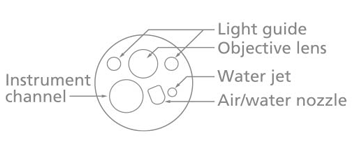

EC-720R

Viewing direction

0° (Forward)

Field of view

170°

Observation range

2-100mm

Distal end diameter

12.8mm

Insertion tube diameter

12.8mm

Minimum diameter of instrument channel

3.8mm

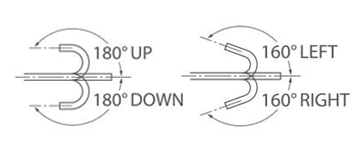

Bending capability

UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°

Working length

EC-720R/M
1,330mm

EC-720R/I
1,520mm

EC-720R/L
1,690mm

Total Length

EC-720R/M
1,630mm

EC-720R/I
1,820mm

EC-720R/L
1,990mm

Water Jet

Available

  • Product: Video Endoscope
  • GMDN: 36117
  • Generic name: Flexible video colonoscope, reusable

EC-530W

Viewing direction

0° (Forward)

Field of view

140°

Observation range

3-100mm

Distal end diameter

12.8mm

Insertion tube diameter

12.8mm

Minimum diameter of instrument channel

3.8mm

Bending capability

UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°

Working Length

EC-530WM3
1,330mm

EC-530WI3
1,520mm

EC-530WL3
1,690mm

Total Length

EC-530WM3
1,630mm

EC-530WI3
1,820mm

EC-530WL3
1,990mm
