Gastroscopes

NEW

Upper G.I. tract scope line up with various features.

The content on this page is intended to healthcare professionals and equivalents.

ELUXEO EI-740D/S
Image of the bending section to the tip portion of EI-740D/S
Tip image of EI-740D/S
Image showing the bending shape of EI-740D/S
Field of view

140°

Viewing direction

0°(Forward)

Observation range

3~100 mm

Bending capability

UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°

Working length

1,030 mm

Total length

1,330 mm

Distal end diameter

12.8 m

Insertion tube diameter

12.8 m

Minimum instrument channel diameter

3.7/3.2 mm

Image size

Super image

  • Product name: Video Endoscope
  • GMDN: 64920
  • Generic name: Flexible upper/lower gastrointestinal endoscope

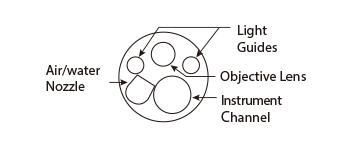

Diagram showing the tip layout of EI-740D/S
Diagram showing the range of up/down bending.​/Diagram showing the range of right/left bending.​

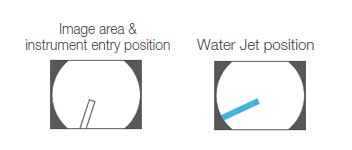

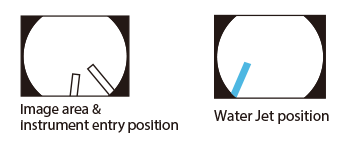

Diagram showing how therapeutic devices appear on endoscopic image./Diagram showing how water jet appears on endoscopic image.
EG-600WR
[photo] EG-600WR gastroscope
[photo] Distal end/tip of gastroscope, with functional parts
[photo] Flexible tip of scope bent upward with forceps sticking out
Viewing direction

0°(Forward)

Field of view

140°

Observation range

2-100 mm

Distal end diameter

9.2 mm

Insertion tube diameter

9.3 mm

Minimum diameter of instrument channel

2.8 mm

Bending capability

UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°

Working length

1,100 mm

Total length

1,400 mm

Water Jet

Available

  • Product: Video Endoscope
  • GMDN: 38805
  • Generic name: Flexible video gastroduodenoscope

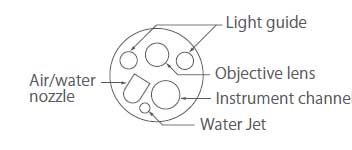

[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet

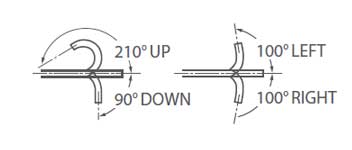

[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right

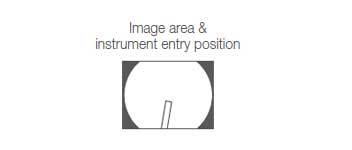

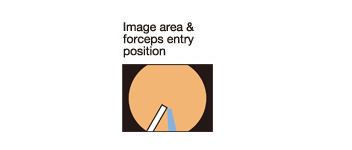

[image] Image area & forceps entry position
EG-600ZW
[photo] EG-600ZW gastroscope
[photo] Distal end/tip of gastroscope, with functional parts
[photo] Flexible tip of scope bent upward with forceps sticking out
Viewing direction

0°(Forward)

Field of view

Normal: 140° / Closest: 56°

Observation range

1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm

Distal end diameter

9.9mm

Insertion tube diameter

9.8mm

Minimum diameter of instrument channel

2.8mm

Bending capability

UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°

Working length

1,100 mm

Total length

1,400mm

  • Product: Video Endoscope
  • GMDN: 38805
  • Generic name: Flexible video gastroduodenoscope

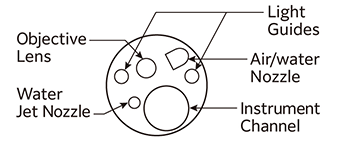

[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet
[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right

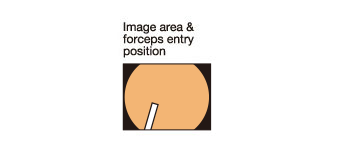

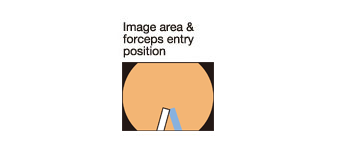

[image] Image area & forceps entry position
EG-580RD
[photo] Flexible tip of scope bent upward
[photo] Distal end/tip of gastroscope, with functional parts
Viewing direction

0°(Forward)

Field of view

140°

Observation range

3-100mm

Distal end diameter

9.8mm

Insertion tube diameter

9.8mm

Minimum diameter of instrument channel

3.2mm

Bending capability

UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°

Working length

1,100mm

Total length

1,400mm

  • Product: Video Endoscope
  • GMDN: 38805
  • Generic name: Flexible video gastroduodenoscope
[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet
[image] Scope flexibly bends 210 degrees up/120 degrees down and 100 degrees left/right

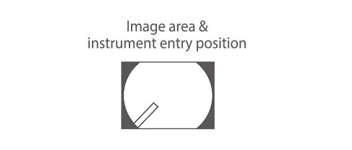

[image] Image area & forceps entry position
EG-580NW2
[photo] EG-580NW2 gastroscope
[photo] Distal end/tip of gastroscope, with functional parts
Viewing direction

0°(Forward)

Field of view

140°

Observation range

3-100mm

Distal end diameter

5.8mm

Insertion tube diameter

5.9mm

Minimum diameter of instrument channel

2.4mm

Bending capability

UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°

Working length

1,100mm

Total length

1,400mm

  • Product: Video Endoscope
  • GMDN: 38805
  • Generic name: Flexible video gastroduodenoscope
[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet
[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right
[image] image area & forceps entry position
