Fujifilm’s DBE system, which has advanced the early diagnosis and treatment of small intestinal diseases, now has a new lineup. EN-840T supports more reliable and efficient diagnoses and treatment through changes to the user-friendly control portion, LCI／BLI, the addition of a water jet function, and a new insertion portion.

EN-840T Therapeutic type

Viewing Direction: 0°(Forward)
Field of view: 140°
Observation range: 2-100 mm
Bending capability: Up 180° / Down 180°
Right 160° / Left 160°
Distal end diameter: 9.4 mm
Insertion tube diameter: 9.3 mm
Minimum diameter of instrument channel: 3.2 mm
Working length: 2,000 mm
Total length: 2,300 mm

Product name：Endoscope　
GMDN：36299
Generic name：Flexible video enteroscope

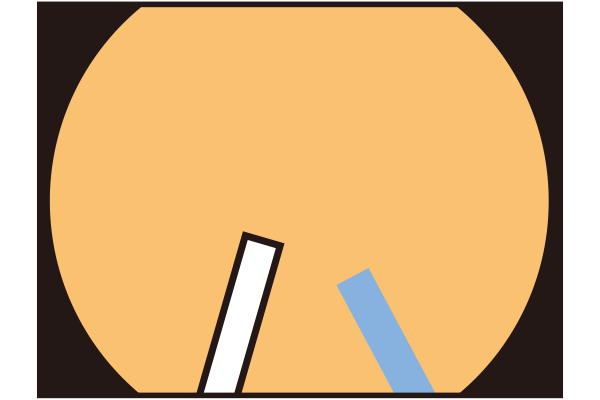

Image area & forceps entry position

Powerful Image Quality

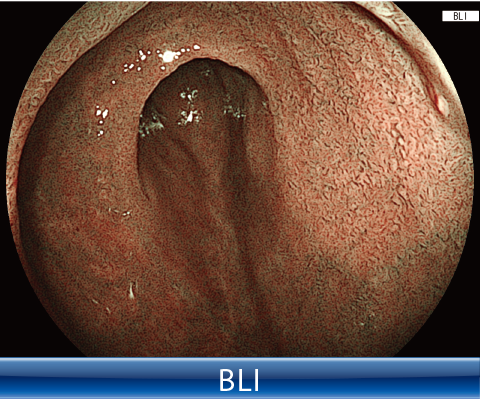

EN-840T is equipped with a CMOS sensor and achieves HD image quality. It is also featured with LCI (Linked Color Imaging) and BLI (Blue Light Imaging) to support from observation to treatment.

Water Jet Function

While keeping the instrument channel diameter of 3.2mm for a wide range of procedures such as hemostasis and balloon dilation, added a water jet function. Since it can wash away mucus and blood adhering on the mucous membranes, the scope's field of view can be cleaned promptly. It is expected to be a smooth observation and treatment.

Improved Insertion portion

EN-840T has the developed insertion portion that is hard at the control portion and soft at the distal end. It is aiming to make it easier to transmit operations such as pushing, pulling, and rotating to the distal end of the endoscope compared to the EN-580T. New insertion portion is expected to support smooth insertion.

The stiffness chart for insertion portion of EN-840T and EN-580T

G7 control portion／One-Step Connector

EN-840T is equipped with a G7 control portion. Scope has a rounded surface to fit the hand, and button layout makes intuitive operation possible. Also, it is possible to connect to the light source with a simple, just one-step operation.

Peripherals and Accessories

Model name	Over-tube
	TS-1314B	TS-13140
	Material	tube	Silicone rubber	Urethane rubber
	Material	Balloon	Silicone rubber	Natural rubber
	Outer diameter		13.2 mm	13.2 mm
Total length	1,450 mm	1,450 mm

Model name	Balloon
	BS-4	BS-2
	MaterialBalloon		Silicone rubber	Natural rubber
	Sterilization		Sterilized（EOG）	Not sterilized. Disinfect before use,
Outer diameter	35 mm	35 mm

PB-30 Balloon controller

To be used to control the pressures inside the balloons. Balloons are inflated and deflated during DBE examinations.

Power	AC100 to 240V 50／60Hz 0.8A
Maximum flow rate of pump	170ml ± 50ml ／ 10sec
Dimensions	145（W）×170（H）×410（D）mm
Weight	7kg（Main unit）, 0.4kg（Remote switch）

System Configuration

Using silicone rubber accessories

Using natural rubber accessories

Processor and Light Source Unit

EP-8000 Processor

Product name：Processor
MDN：34540
Generic name：Endoscopic video image processing／light source system

VP-7000 Processor

Product name：Processor
GMDN：18034
Generic name：Endoscopic video image processing unit

BL-7000 Light Source

Product name：Light source
GMDN：35158
Generic name：Endoscopic light source unit, line-powered

EP-6000 Processor

Product name：Processor
GMDN：34540
Generic name：Endoscopic video image processing／light source system
