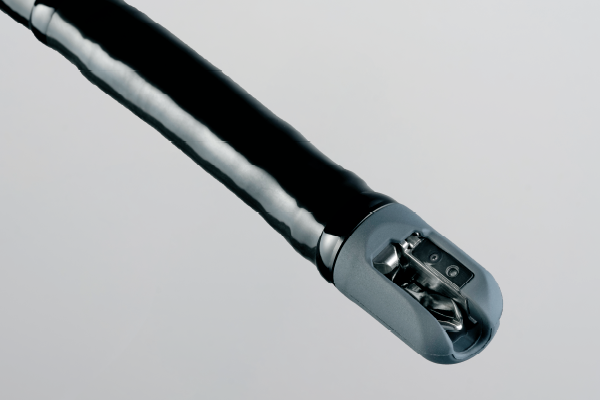

Insertion performance & manoeuvrability ED-840T/ED-840XT has an atraumatic, slim, tapered distal end cap for smooth patient intubation.
Advanced force transmission provides increased control of the endoscope by efficient transmission of rotation*1.
- *1 efficient transmission of rotation:Comparison with ED-580T/ED-580XT
The ED-840T & ED-840XT incorporates a large 4.5mm instrument channel that can accommodate large endotherapeutic devices whilst increasing suction performance.

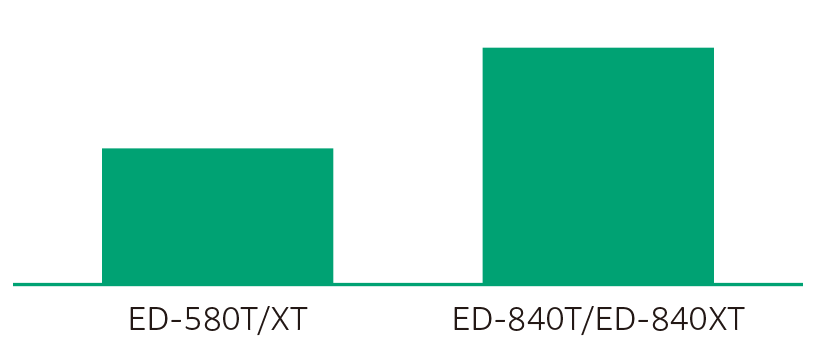

Comparison between the ED-580T/ED-580XT and the ED-840T/ED-840XT Duodenoscope suction volume when the endoscope distal end is immersed with a 3.9 mm diameter endotherapeutic device inserted into the working channel.
The redesigned elevator allows for a greater range of instrument control.
The newly designed elevator mechanism increases the range of motion and the angle at which therapeutic instruments can exit the working channel, allowing the operator to significantly change the angle of approach to the thick device*2.
Moreover, the movement of the control lever is transmitted to the device, with increased precision for accurate and precise positioning of instrumentation*3 during clinical procedures.
- *2 the angle of approach to the thick device : Comparison with ED-580T / ED-580XT
- *3 increased precision for accurate and precise positioning of instrumentation : Comparison with ED-580T / ED-580XT
Experience an increased elevation force when using the lever featuring a specially designed G-Lock mechanism that allows guidewires to be fixed into position with precision.
Featuring a 4.5mm working channel for the smooth insertion of therapeutic devices, the instrument channel for Fujifilm’s endoscopes facilitate the rapid exchange of instrumentation during procedures. A single use distal attachment hood has been developed to support efficient cleaning and time between procedures in clinic.
BLI,LCI and ACI technologies are incorporated.
- * ACI technology is available with the combination of EP-8000 only

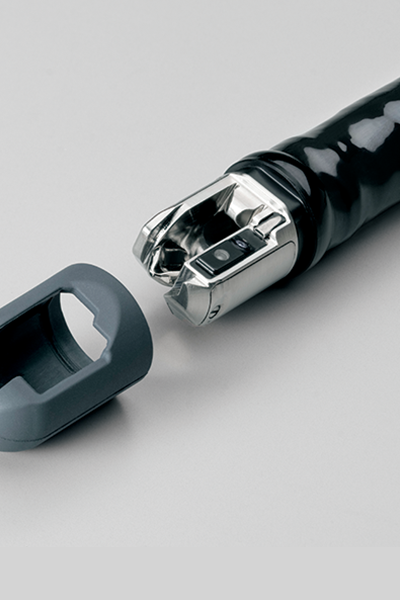

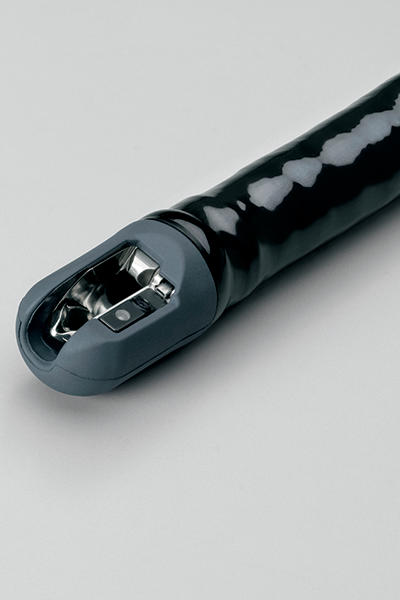

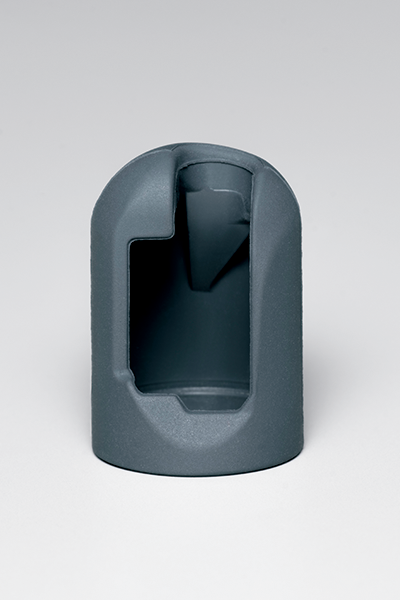

Sterilized dedicated distal end cap is developed.
Two products line up is available according to physician’s preference.
