- Viewing direction
ED-840T：105°（retro-viewing 15°）
ED-84XT：95°（retro-viewing 5°）
- Field of view
100°
- Observation range
4-60mm
- Bending capability
UP 120° / Down 90° , Left 90° / Right 110°
- Working length
1250mm
- Total length
1550mm

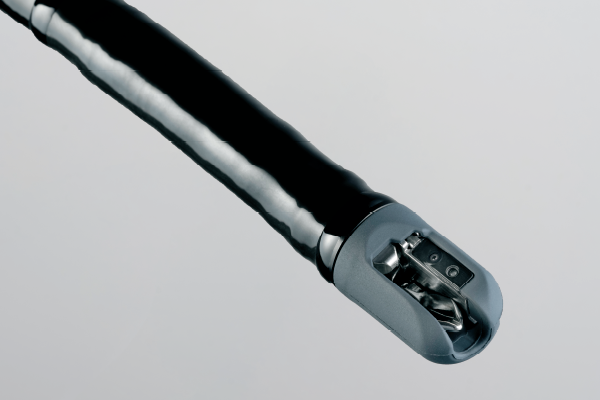

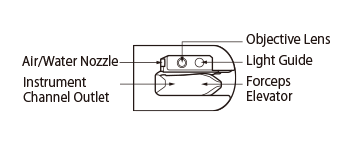

- Distal end diameter
13.1mm
- Insertion tube diameter
11.3mm
- Minimum diameter of instrument channel
4.5mm

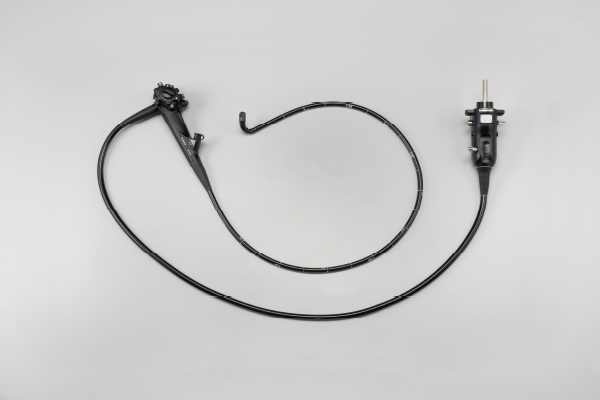

- Product name：Video Endoscope
- GMDN：36112
- Generic name：Flexible video duodenoscope, reusable
