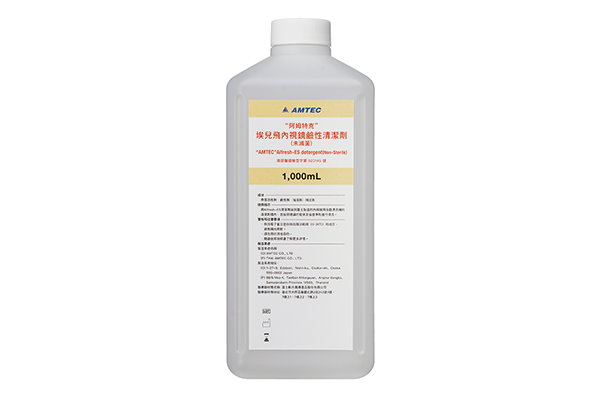

Alfresh-ES detergent

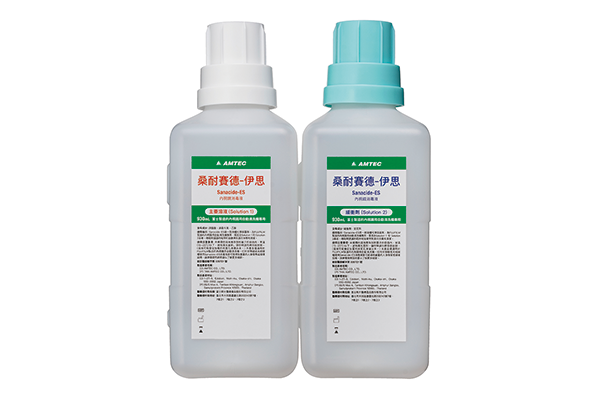

Sanacide-ES PAA
High-Level disinfectant

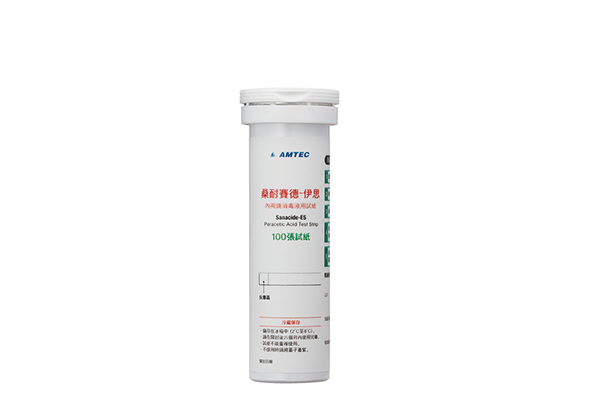

Sanacide-ES Peracetic
Acid Test Strip
Peracetic Acid "Sanacide-ES" enabels high-level disinfection for flexible endoscopes in a short period of time.
The bottles can be replaced without touching solutions and during preparation of disinfectant, the empty bottles are automatically rinsed to reduce the odors of solutions.
The lid can be electrically opened and closed using Foot pedal, and the reprocessing program can be started using Foot switch（option）.
These functions help to perform routine operations without using your hands.
One or two flexible endoscopes can be cleaned and disinfected at the same time.
Equipped with a color display, you can easily find device status, device settings, cleaning and disinfection logs and other messages.
You can save the cleaning and disinfection logs including user ID and scope ID with RFID up to 12,000.
Printer（option） can be used to output the logs as well.
When you reprocess only one flexible endoscope, you can shorten the reprocessing time by using a single mode adaptor.
HEAT HLD timer can be used to heat the disinfectant in the tank to optimum temperature before use.
- Standard configuration
Automated Endoscope Reprocessor ESR-200
- Power requirements
Input voltage：110V AC Rated current: 7A Voltage fluctuation: ±10%
Frequency：60 Hz Phase：Single phase- Environmental conditions
Use location：Indoors Use altitude：2,000 m or lower
Overvoltage category：CAT II Contamination degree：2（1） During operation
Temperature：10˚C to 40˚C
Humidity：10%RH to 85%RH（no condensation）
Pressure：750hPa to 1,060hPa（2）During storage
Temperature: -10˚C to 50˚C
Humidity：10%RH to 85%RH（no condensation）
Pressure：750hPa to 1,060hPa
- （1）Compatible endoscopes
Check with your distributor.
- （2）Supported number
1 or 2 units
- （3）Leak testing
Visual confirmation of bubbles in liquid
- （4）Cleaning methods
- Outer surface：Ultrasonic cleaning and cleaning with running water
- Inside of channels：Cleaning with running water
- Valves：Ultrasonic cleaning and cleaning with running water
- （5）Detergent
Detergent specified by Fujifilm（alkaline detergent）
- （6）Amount of water used（including rinsing）
Approx. 90L
- （7）Disinfecting methods
- Outer surface：Immersion in disinfectant
- Inside of channels：Disinfectant supply, filling
- Valves：Immersion in disinfectant
- （8）Disinfectant
Disinfectant specified by Fujifilm（peracetic acid solution supplied in dedicated bottle）
- （9）Actual amount of disinfectant used
Approx. 18.6 L
- （10）Disinfecting temperature selection
Equipped with heater capable of heating to 20°C or higher
- （11）Disinfectant concentration check
Chemical indicator
- （12）Self-disinfection
Disinfection by spraying chemicals to prevent contamination inside the main unit cover
Self-disinfection of water supply system through piping addition by user- （13）Inside of air purge and drying channels
Alcohol flush selection supported
- （14）Filters
- Water/air filters：Easily replaced 0.2 μm filters（front access）
- Vapor filters：Activated carbon to remove peracetic acid odor
- （15）Process time
Approximately 18 minutes/process（excluding leak testing and alcohol flush, and without temperature control or with disinfecting agent at 20°C or higher）
- *Single mode（cleaning and disinfection of one scope）：Approx. 16 minutes／process
- （16）Interfaces
- Lid：Automatic opening／closing with foot pedal
- Display：Built-in 3.5 inch color LCD screen
- Operation button：Large-diameter [START] button
- Peracetic acid supply：Bottle opening／solution preparation at bottle set, and empty bottle cleaning function
- Buzzer sound：Volume adjustable
- （17）Cleaning and disinfection log management
The cleaning and disinfection log can be saved.
An optional printer can be used for output.- （18）Noise
60 dB or less（excluding short-time sounds that last 3 seconds or less）
- （19）Equipment dimensions（mm）
457（W）×776（D）× 914.5 to 924.5（H）
- （20）Installation area（mm）
503（W）× 1,140（D）× 1,463 to 1,473（H）（open lid, open front cover）
- （21）Minimum clearance when installing
Right／Left：40mm Back：100mm
- （22）Weight
87.8 kg（dry state）
- （23）Wireless
RFID／13.56 MHz
Printer （AER TH PRINT）, Foot switch （AER FOOTSW）, Prefilter set （AER PRE FILT）, Scope ID tag （AER IDTAG）, ID chip （AER IDSEAL）, Prefilter element （AER FILT ELEM）, Connecting tube for air/water/instrument channel （ESR-000-G7 AW）, Leak test tube （AER TUBE LEAK）, Connecting tube for auxiliary channel （ESR-000-LG WJ）, Connecting tube for air/water/instrument channel （ESR-200-G5 AW）, Connecting tube for auxiliary channel （AER TUBE G5 WJ）, Connecting tube for ultrasonic endoscope （ESR-000-G7 US）, Connecting tube for bronchoscope （ESR-000-AB）, Connecting tube for bronchoscope （ESR-000-BR）, Connecting tube for ultrasonic bronchoscope （ESR-000-AB US）
