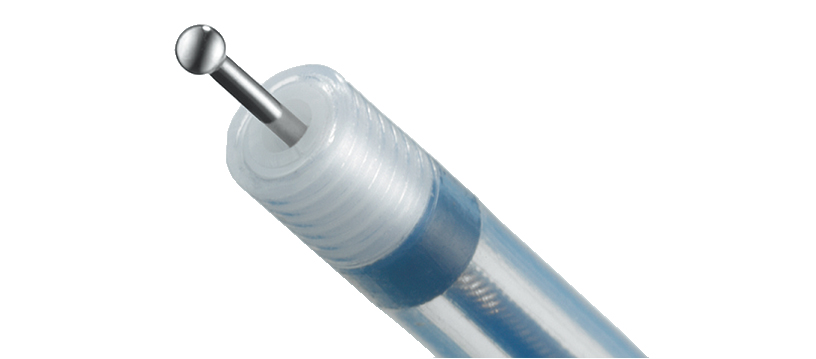

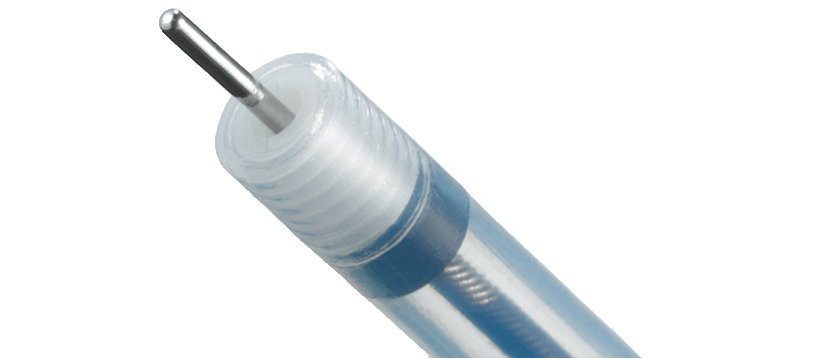

[photo] Tips of FushKnife BTs/Ns

Disposable high-frequency knife

FlushKnife BTs/FlushKnife Ns - Specifications

NEW

Submucosal injection capability for efficient ESD. FlushKnifes are aimed at achieving enhanced usability ideal for all physicians – from trainees to skilled ESD practitioners.

Contact Us

The content on this page is intended to healthcare professionals and equivalents.

FlushKnife BTs
  DK2620JI DK2623JI
Identifier -B15- -B20- -B25- -B30- -B15- -B20-
Slitter portion length 1.5mm 2.0mm 2.5mm 3.0mm 1.5mm 2.0mm
Sheath color Green Blue Yellow Black Green Blue
Working length*1 2,000mm 2,300mm
Maximum diameter
of insertion portion		 2.7mm 2.7mm
Instrument channel diameter
of compatible endoscope*1		 2.8mm or more 2.8mm or more
Packaging unit 1/pack 1/pack
  • Product name: Diathermic Slitter
    DK2620JI (Identifer: -B15x- / -B20- / -B25- / -B30-)
    DK2623JI (Identifer: -B15- / -B20-)
  • GMDN: 61875
  • Generic name: Endoscopic electrosurgical electrode, monopolar, single-use
FlushKnife Ns
  DK2620JI DK2623JI
Identifier -N10- -N15- -N20- -N25- -N30- -N15- -N20-
Slitter portion length 1.0mm 1.5mm 2.0mm 2.5mm 3.0mm 1.5mm 2.0mm
Sheath color White Green Blue Yellow Black Green Blue
Working length*1 2,000mm 2,300mm
Maximum diameter
of insertion portion		 2.7mm 2.7mm
Instrument channel diameter
of compatible endoscope*1		 2.8mm or more 2.8mm or more
Packaging unit 1/pack 1/pack
  • Product name: Diathermic Slitter
    DK2620JI (Identifer: -N10- / -N15- / -N20- / -N25- / -N30-)
    DK2623JI (Identifer: -N15- / -N20-)
  • GMDN: 61875
  • Generic name: Endoscopic electrosurgical electrode, monopolar, single-use
  • *1 It is not guaranteed that the equipment chosen only based on the working length and the instrument channel diameter of the endoscope above is compatible.

Do not re-use / Single patient use only

Submucosal injection agent can be supplied via syringe only during ESD.
