[photo] Eluxeo Lite 6000 multi-LED endoscope system

6000 System - Scopes

NEW

Multi-LED Endoscope System.

Contact Us

The content on this page is intended to healthcare professionals and equivalents.

Field of view: 140°
Viewing direction: 0° (Forward)
Observation range: 2〜100 mm
Bending capability: UP: 210° / DOWN: 90° / RIGHT: 100° / LEFT: 100°
Working length: 1,100 mm
Total length: 1,400 mm
Distal end diameter: 9.2 mm
Insertion tube diameter: 9.3 mm
Minimum instrument channel diameter: 2.8 mm
Image size: Super image

Product name: Video Endoscope GMDN: 38805
Generic name: Flexible video gastroduodenoscope

[image] Tip of endoscope with parts/functions and 210 degreesup/90 degrees down, 100 degrees left/right flexible angles it moves in

Field of view: 170°
Viewing direction: 0° (Forward)
Observation range: 2〜100 mm
Bending capability: UP: 180° / DOWN: 180° / RIGHT: 160° / LEFT: 160°
Working length: 1,330 mm(M) / 1,520 mm(I) / 1,690 mm(L)
Total length: 1,630 mm(M) / 1,820 mm(I) / 1,990 mm(L)
Distal end diameter: 12.8 mm
Insertion tube diameter: 12.8 mm
Minimum instrument channel diameter: 3.8 mm
Image size: Super image

Product name: Video Endoscope GMDN: 36117
Generic name: Flexible video colonoscope , reusable

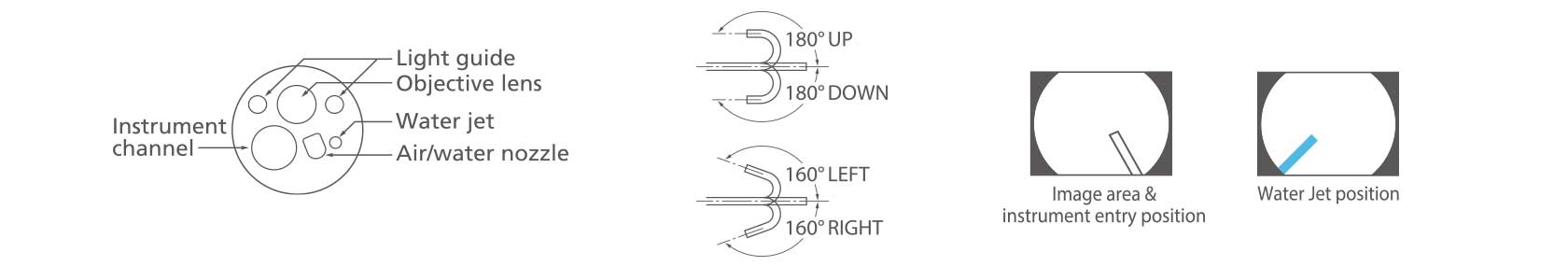

[image] Tip of endoscope with parts/functions and 180 degrees up/down, 160 degrees left/right flexible angles it moves in

Compatible Endoscopes

Conventional 500 ^*1 / 600 system scopes can also be used.

700 system scopes
600 system scopes
500 system scopes ^*1	580 series scopes
	530 series scope ^*2

*1 Excluding 590 series scope.
*2 Excluding EG-530UT2, EG-530UT, EG-530UR2 and EG-530UR

Available observation mode

	White light	BLI	BLI-bright	LCI	FICE
700 system scopes	○	○	○	○	○
500/600 system scopes	○	-	-	-	○

Accessories (Valve, Tank)

For routine examination

[photo] Black with blue color ring air/water valve

Air/Water ValveNEW

AW-603

[photo] Black with orange color ring suction valve

Suction ValveNEW

SB-605

[photo] Water tank

Water TankNEW

WT-603

Used with CO₂ Regulator “GW-100”

[photo] Gas/water valve

Gas/Water ValveNEW

AW-604G

[photo] Water tank

Water TankNEW

WT-604G
