- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
8.9 mm
- Insertion tube diameter
8.9 mm
- Minimum instrument channel diameter
2.8 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm

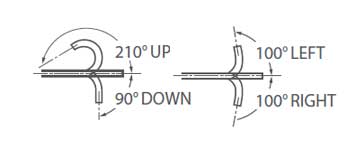

- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
5.8 mm
- Insertion tube diameter
5.9 mm
- Minimum instrument channel diameter
2.4 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability

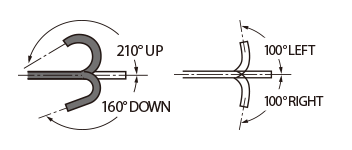

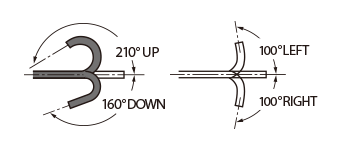

UP 210° / DOWN 160°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
9.8 mm
- Insertion tube diameter
9.8 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°
- Observation range
2-100 mm
- Bending capability
UP 210° / DOWN 160°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
7.9 mm
- Insertion tube diameter
7.9 mm
- Minimum instrument channel diameter
3.2 mm
- Product name: Video endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°(Forward)
- Observation range
2~100 mm
- Image size
Super image
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
Normal: 140° Closest: 56°
- Viewing direction
0° (Forward)
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Image size
Super image
- Distal end diameter
9.9 mm
- Insertion tube diameter
9.8 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
2～100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
10.5 mm
- Insertion tube diameter
10.8 mm
- Minimum diameter of instrument channel
3.8 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
3～100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
5.8 mm
- Insertion tube diameter
5.9 mm
- Minimum diameter of instrument channel
2.4 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0° (Forward)
- Observation range
2〜100 mm
- Bending capability
UP: 210° / DOWN: 90°
RIGHT: 100° / LEFT: 100°- Working length
1,100 mm
- Total length
1,400 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum instrument channel diameter
2.8 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
- Field of view
140°
- Viewing direction
0°(Forward)
- Observation range
3~100 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,030 mm
- Total length
1,330 mm
- Distal end diameter
12.8 m
- Insertion tube diameter
12.8 m
- Minimum instrument channel diameter

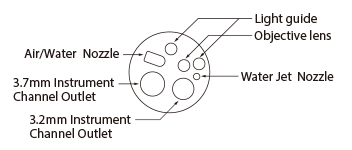

3.7/3.2 mm
- Image size
Super image
- Product name: Video Endoscope
- GMDN: 64920
- Generic name: Flexible upper/lower gastrointestinal endoscope
![[photo] EG-600WR gastroscope](https://asset.fujifilm.com/www/uy/files/2025-09/e34d6dc64bc14111cba8662301a278d3/pic_gastroscopes_01.jpg)
![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/uy/files/2025-09/5687d3133d6c5c5644d874ab5945ef54/pic_gastroscopes_02.jpg)

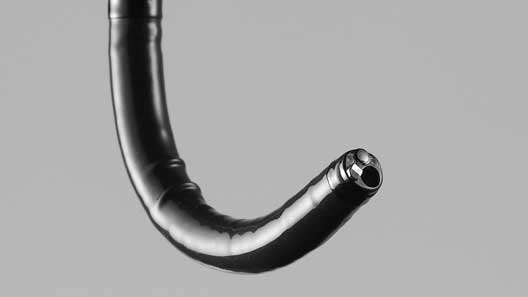

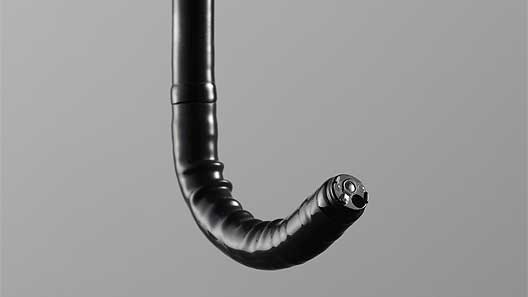

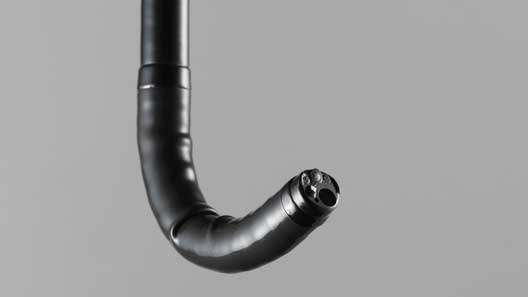

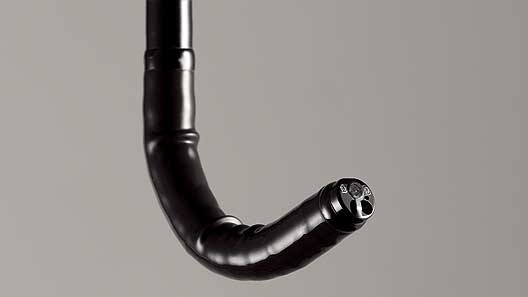

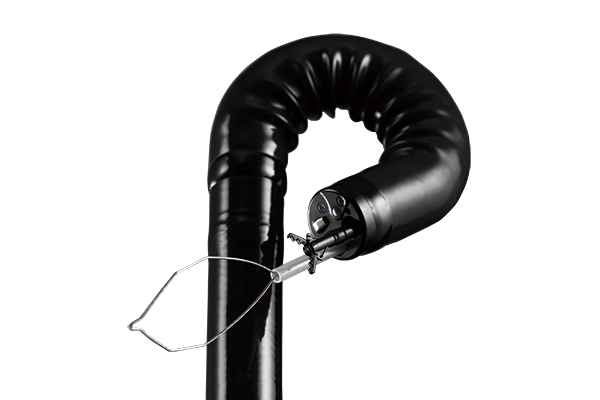

![[photo] Flexible tip of scope bent upward with forceps sticking out](https://asset.fujifilm.com/www/uy/files/2025-09/d5b0758317b69153ee15bd13535062c7/pic_gastroscopes_03.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

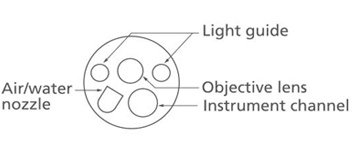

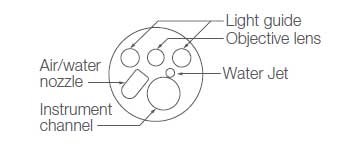

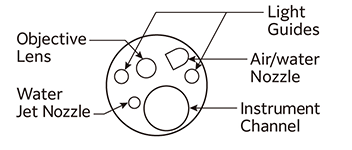

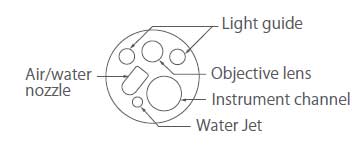

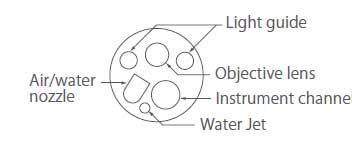

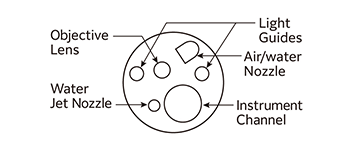

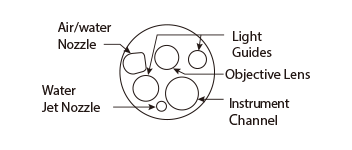

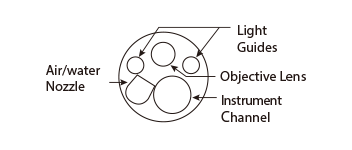

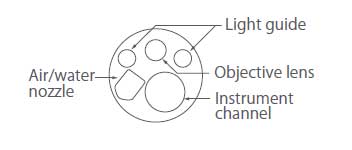

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/uy/files/2025-09/92105f2e34d15326a9a5c5e7b135e9bb/fig_gastroscopes_01.jpg)

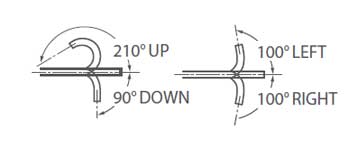

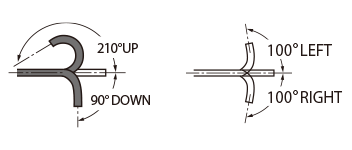

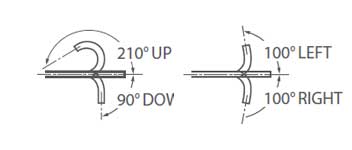

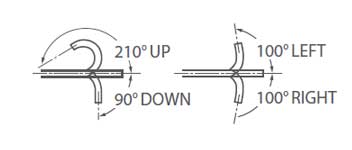

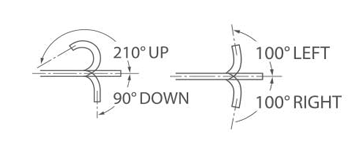

![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/uy/files/2025-09/48193843f600c8359c06dbf6a8373931/fig_gastroscopes_02.jpg)

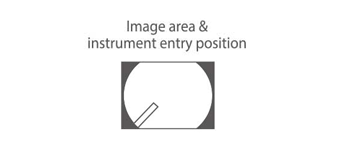

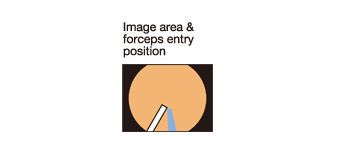

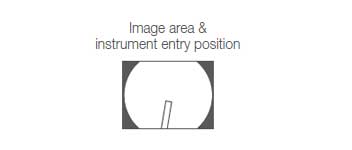

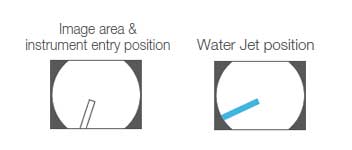

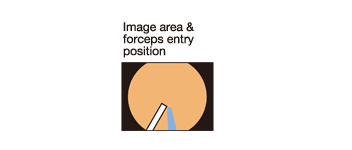

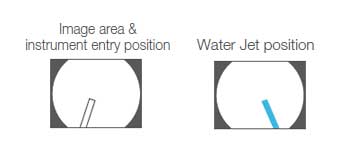

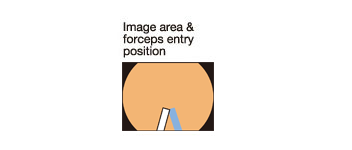

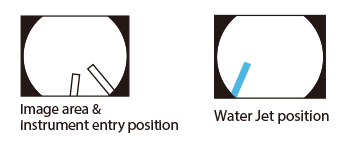

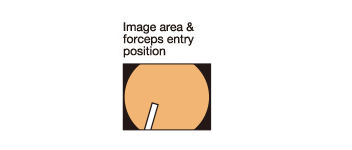

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/uy/files/2025-09/87dd2ebd4e1aafce4edb94ce59a65768/fig_gastroscopes_03.jpg)
![[photo] EG-600ZW gastroscope](https://asset.fujifilm.com/www/uy/files/2025-09/f7fff95cf7ae99c42a39f8fb6b9c897c/pic_gastroscopes_04.jpg)
![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/uy/files/2025-09/dfcaad76c56f7c90fa76f5711e0594d8/pic_gastroscopes_05.jpg)
![[photo] Flexible tip of scope bent upward with forceps sticking out](https://asset.fujifilm.com/www/uy/files/2025-09/55d5f2289f135b0e44cc4fa393331d22/pic_gastroscopes_06.jpg)
- Viewing direction
0°(Forward)
- Field of view
Normal: 140° / Closest: 56°
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Distal end diameter
9.9mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
2.8mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/uy/files/2025-09/a30d98c819a7b4be1231af30446b3422/fig_gastroscopes_04.jpg)
![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/uy/files/2025-09/552d5f7f05e3f8fcdec48fb938077d7b/fig_gastroscopes_05.jpg)
![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/uy/files/2025-09/f41442a91ee24a8a834e91830b0d9b02/fig_gastroscopes_06.jpg)

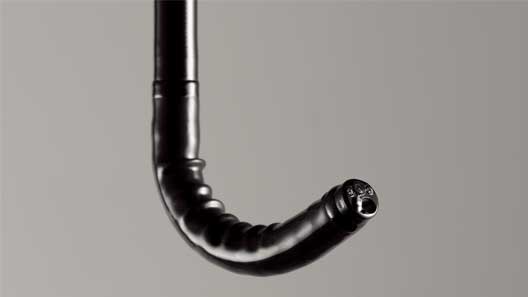

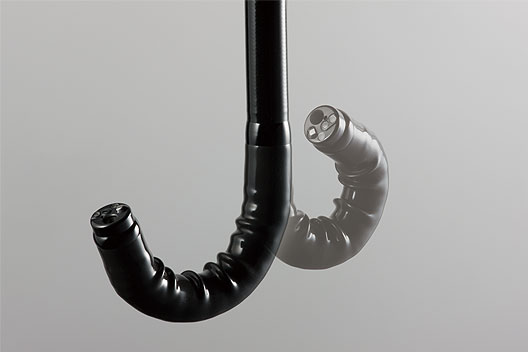

![[photo] Flexible tip of scope bent upward](https://asset.fujifilm.com/www/uy/files/2025-09/8aa781c92b4b48eef590172027e9c654/pic_gastroscopes_07.jpg)

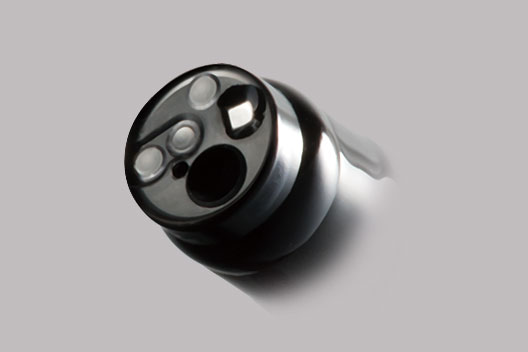

![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/uy/files/2025-09/ac12bb60b3847855058ae2890d5afd53/pic_gastroscopes_08.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
9.8mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
3.2mm
- Bending capability
UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/uy/files/2025-09/f3cdf88226fecd253ab40ff45a463949/fig_gastroscopes_07.jpg)

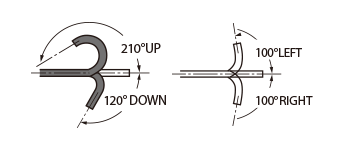

![[image] Scope flexibly bends 210 degrees up/120 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/uy/files/2025-09/8712f024e03fb312036b3a543e4f8455/fig_gastroscopes_08.jpg)
![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/uy/files/2025-09/597c44a59d20d5c6daa97fa71339d932/fig_gastroscopes_09.jpg)
![[photo] EG-580NW2 gastroscope](https://asset.fujifilm.com/www/uy/files/2025-09/0f3e20c931fc0bdf1f4460bf850f4e74/pic_gastroscopes_09.jpg)
![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/uy/files/2025-09/d7576ecfd77af6c60e5931c1086fb883/pic_gastroscopes_10.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
5.8mm
- Insertion tube diameter
5.9mm
- Minimum diameter of instrument channel
2.4mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/uy/files/2025-09/065c4f31875fcbfb686ebdec7b60e326/fig_gastroscopes_10.jpg)
![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/uy/files/2025-09/125f7a04101e01eb416fdec9b49df282/fig_gastroscopes_11.jpg)
![[image] image area & forceps entry position](https://asset.fujifilm.com/www/uy/files/2025-09/41b8b6de6cf7a93e307de2f4fa6f1dbb/fig_gastroscopes_12.jpg)
