Pressure Image Analysis App

FUJIFILM Prescale Mobile

NEW

The app that enables any user to quantify pressure and other analysis results with ease.

FUJIFILM Prescale Mobile Product Overview Video

The app that enables any user to quantify pressure and other analysis results with ease.

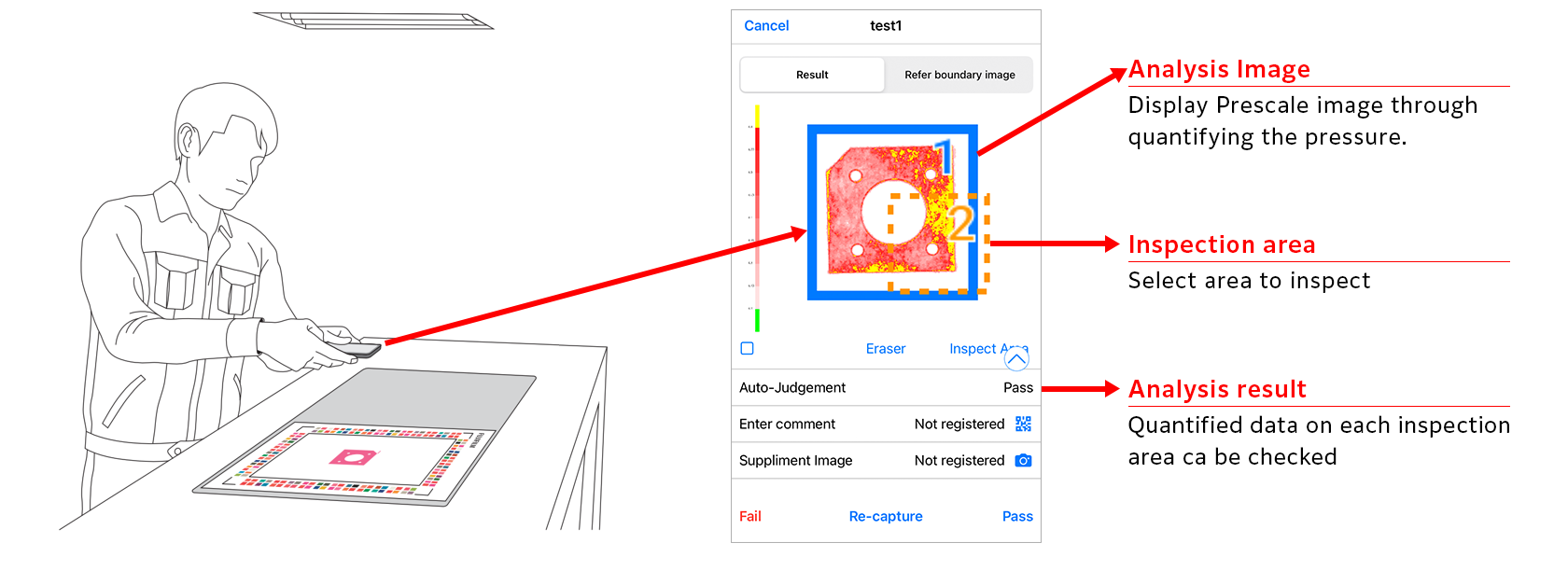

Prescale Mobile is a dedicated app that enables easy quantification of pressure by capturing the colored Prescale with mobile device. You can also register and inspection images against your own boundary sample.

  • Easily quantitative inspection

  • Improve inspection quality

  • Improve traceability

Inspection Workflow

(1)Register a New Inspection

Select the plus sign on the inspection menu to switch to the Add Inspection screen.

  1. Set inspection content
    • See the reference manual for detailed information regarding settings.
  2. Select OK to register an inspection
    • If the type of inspection is set to Superimposition, registration of a boundary sample is required.

(2)Sample Registration

  1. Select boundary sample on the Add Inspection screen
  2. Select Use Photo to register the boundary sample.

(3)Capture Prescale

  1. Enter the Room temperature/Humidity when pressure was applied to the Prescale used for inspection
  2. Select Individual Inspection or Layering Inspection on the inspection menu screen, then tap on the name of the inspection to be performed
  3. Capture Prescale

(4)Check analysis results

Data such as analysis images and pressure values are displayed.

  1.  Select OK or No good on the analysis results.
  2.  Select Yes on the confirmation screen, then register the judgment result on the confirmation screen.

(5)Saving

  1. Select History on the inspection menu screen
  2. Select the inspection results to be checked

Functions

(1)Pressure Measurement

Inspection areas of the desired size can be specified up to six positions,and inspection information inside these areas can be displayed.

(2)Comparision

Sample and inspection images can be displayed side-by-side.
* This function can only be used with Individual Inspections.

(3)Superimposition

The boundary samples and inspection images can be layered over each other to show differences in pressure. The color bar on the left indicates the degree of conformity between the pressure in the boundary sample and inspection images.
* This function can only be used with Superimposition inspection.

(4)Auto Judgement

It is automatically judged based on the preset threshold value or threshold range.

(5)Data Storage

Data can be stored, and past record can be referenced at any time.

Supported measurements

Item Unit Explanation
Pressure efficiency The percentage of the colored area within the recommended pressure range for the applicable Prescale
Pressured area mm2 The area over which color is produced
Average pressure MPa The average pressure in the area over which color is produced
Maximum pressure MPa The maximum pressure in the area over which color is produced
Minimum pressure MPa The minimum pressure in the area over which color is produced
Weight N The weight on the area over which color is produced (calculated based on the product of the pressured area and the average pressure)
Measured surface area mm2 The area of the specified area and the area to be processed
Uniformity (pressure) An index indicating the uniformity of pressure across the area over which color is produced
Uniformity (density) An index indicating the uniformity of color density across the area over which color is produced
