The content on this page is intended to healthcare professionals and equivalents.

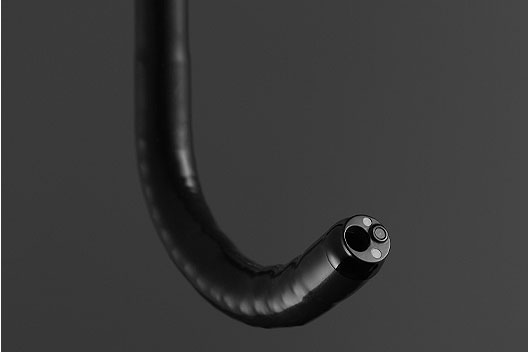

High-resolution bronchoscope with improved operability thanks to 210°upward bending capability and 2.2mm diameter instrument channel.
- Field of view
120°
- Observation range
2-100mm
- Distal end diameter
5.3mm
- Insertion tube diameter
5.1mm
- Minimum diameter of instrument channel
2.2mm
- Bending capability
UP 210° / DOWN 130°
- Working length
600mm
- Total length
870mm
- Product : Video Endoscope
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable

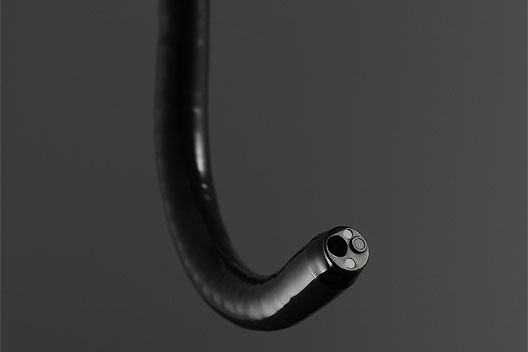

High-resolution bronchoscope to support efficient treatment.
- Field of view
120°
- Observation range
2-100mm
- Distal end diameter
5.8mm
- Insertion tube diameter
5.9mm
- Minimum diameter of instrument channel
2.8mm
- Bending capability
UP 180° / DOWN 130°
- Working length
600mm
- Total length
870mm
- Product : Video Endoscope
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable

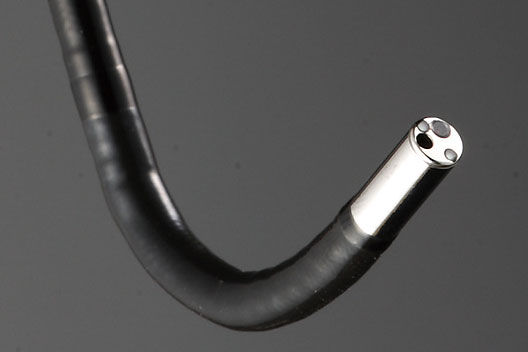

Slim type bronchoscope with a 3.8mm slim distal end diameter, suitable for pediatric bronchoscopy.
- Field of view
120°
- Observation range
3-100mm
- Distal end diameter
3.8mm
- Insertion tube diameter
3.8mm
- Minimum diameter of instrument channel
1.2mm
- Bending capability
UP 180° / DOWN 130°
- Working length
600mm
- Total length
890mm
- Product : Video Endoscope
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable
Standard type bronchoscope with a slim distal end diameter suitable for observation, biopsy and treatment.
- Field of view
120°
- Observation range
3-100mm
- Distal end diameter
4.9mm
- Insertion tube diameter
4.9mm
- Minimum diameter of instrument channel
2.0mm
- Bending capability
UP 180° / DOWN 130°
- Working length
600mm
- Total length
870mm
- Product name: Video Endoscope
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable
Standard type bronchoscope with a wide angle image of 140° that further enhances observation, biopsy and treatment capabilities.
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
5.4mm
- Insertion tube diameter
4.9mm
- Minimum diameter of instrument channel
2.0mm
- Bending capability
UP 180° / DOWN 130°
- Working length
600mm
- Total length
870mm
- Product name: Video Endoscope
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable
Treatment type bronchoscope with a 2.8mm diameter instrument channel while maintaining the distal end diameter of 5.8mm.
- Field of view
120°
- Observation range
3-100mm
- Distal end diameter
5.8mm
- Insertion tube diameter
5.9mm
- Minimum diameter of instrument channel
2.8mm
- Bending capability
UP 180° / DOWN 130°
- Working length
600mm
- Total length
870mm
- Product name: Video Endoscope
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable
Treatment type bronchoscope equipped with a 3.2mm diameter instrument channel providing enhanced suction performance. A wider variety of accessories can be used.
- Field of view
120°
- Observation range
3-100mm
- Distal end diameter
6.2mm
- Insertion tube diameter
6.3mm
- Minimum diameter of instrument channel
3.2mm
- Bending capability
UP 180° / DOWN 130°
- Working length
600mm
- Total length
3.2mm
- Product name: Video Endoscope
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable
