| Date: | September 29th, 2026 |
| Time: | 10:00 CET |
| Platform: | Microsoft Teams |
| Language: | Italian |
| Fee: | Free |
The link will sent few days prior to the webinar date.
Content of the Web Seminar
・Specifications and usage tips of Prescale and Prescale for High Temperature 100/200
・Methods and application examples of pressure measurement during thermal press
・Pressure quantification using FUJIFILM Prescale Mobile and Prescale Station
・Q&A
Optimize your production and pressure analysis with the solution provided by FUJIFILM!

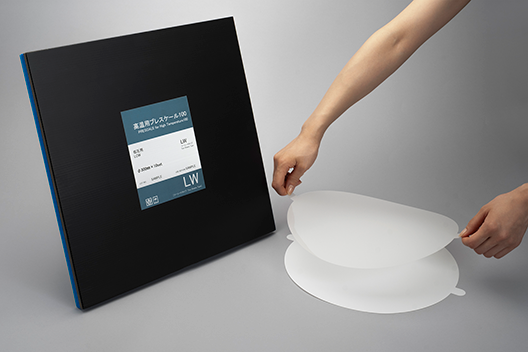

Prescale and Prescale for High Temperature are films that visualize pressure, and Round Prescale is a version customized to match round shape.
You can easily measure pressure by simply holding the handle and placing the film between the surfaces. When pressure is applied, the film changes color in response to the applied pressure, enabling you to visually confirm the pressure distribution.
Furthermore, pressure data can be quantified using FUJIFILM Prescale Station or FUJIFILM Prescale Mobile.
- Product name
Round Prescale (300mmφ)
- Recommended temperature
Round Prescale (300mmφ): 20°C to 35°C
Round Prescale (300mmφ) for High Temperature 100: 35°C to 150°C (heat applied to both sides)
Round Prescale (300mmφ) for High Temperature 200: 150°C to 220°C (heat applied to both sides)- Recommended humidity
35％RH～80％RH*1
- Product Diameter
300mmφ
*1 Except for Prescale for High Temperature 100 / 200

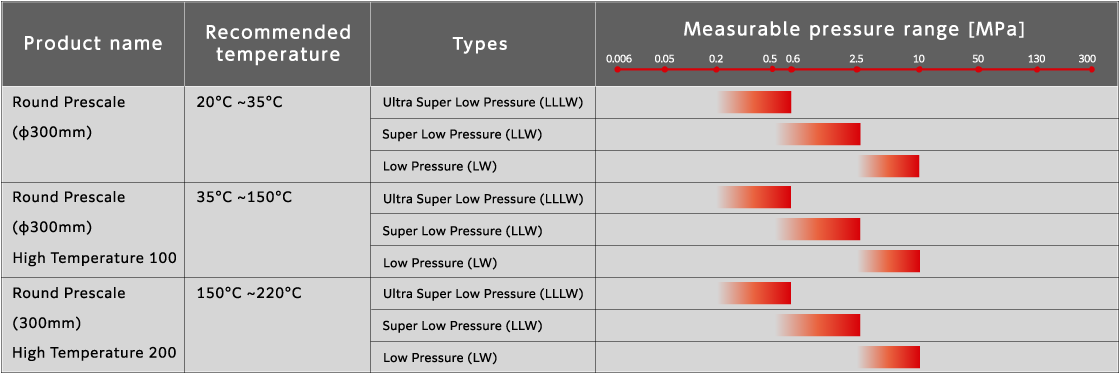

Prescale is categorized into different types according to the pressure range [MPa] you wish to measure.
Please select the type that best suits your inspection condition.
