The content on this page is intended to healthcare professionals and equivalents.
Compatible with low temperature plasma sterilisation*1.
- Field of view
120°
- Viewing direction
0°(Forward)
- Observation range
2-50mm
- Distal end diameter
4.1mm
- Insertion tube diameter
4.1mm
- Minimum diameter of instrument channel
2.0mm

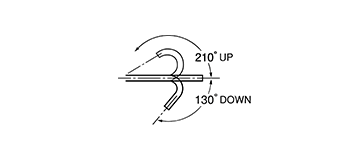

- Bending capability
UP 210° / DOWN 130°
- Working length
600mm
- Total length
880mm
- Sterilization
STERRAD / EOG
- Product : Video endoscope EB-710P
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable
High-resolution bronchoscope with improved operability thanks to 210°upward bending capability and 2.2mm diameter instrument channel.
- Field of view
120°
- Observation range
2-100mm
- Distal end diameter
5.3mm
- Insertion tube diameter
5.1mm
- Minimum diameter of instrument channel
2.2mm

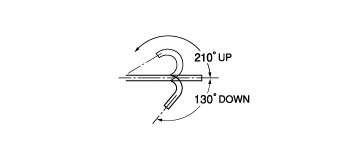

- Bending capability
UP 210° / DOWN 130°
- Working length
600mm
- Total length
870mm
- Product : Video Endoscope
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable

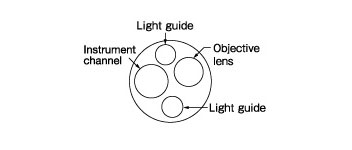

![[image] Tip of scope with parts - light guides, objective lens, instrument channel](https://asset.fujifilm.com/www/tw/files/2025-03/27c01be9ac2f44dabf966ea9c55efa3a/fig_bronchoscopes_01.jpg)
![[image] Scope moves 210 degrees up and 130 degrees down](https://asset.fujifilm.com/www/tw/files/2025-03/381fc1dde839b1c16d33164b50c38d99/fig_bronchoscopes_02.jpg)

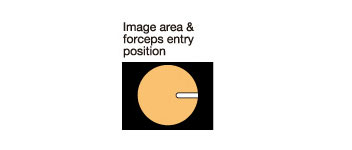

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/tw/files/2025-03/023129b3687ea4833139081114740ba0/fig_bronchoscopes_03.jpg)
High-resolution bronchoscope to support efficient treatment.
- Field of view
120°
- Observation range
2-100mm
- Distal end diameter
5.8mm
- Insertion tube diameter
5.9mm
- Minimum diameter of instrument channel
2.8mm

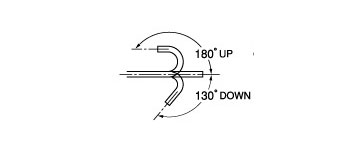

- Bending capability
UP 180° / DOWN 130°
- Working length
600mm
- Total length
870mm
- Product : Video Endoscope
- GMDN: 17662
- Generic name: Flexible video bronchoscope, reusable

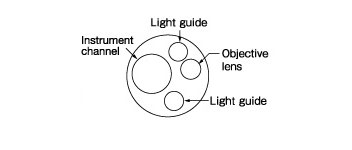

![[image] Tip of scope with parts - light guides, objective lens, instrument channel](https://asset.fujifilm.com/www/tw/files/2025-03/1b09897fdca0cbd8c81dfbd1357606db/fig_bronchoscopes_04.jpg)
![[image] Scope moves 180 degrees up and 130 degrees down](https://asset.fujifilm.com/www/tw/files/2025-03/539e60be44e3468f56cb4270352999dc/fig_bronchoscopes_05.jpg)

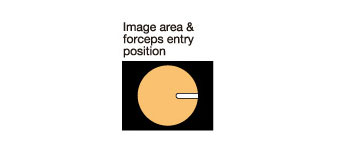

![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/tw/files/2025-03/752a02108b737f6467730eee5fb21ae1/fig_bronchoscopes_06.jpg)
