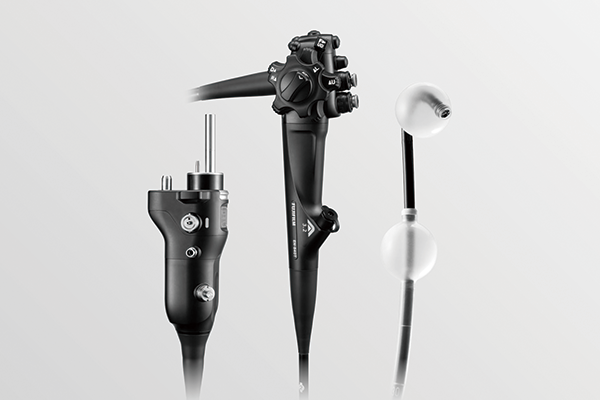

EN-840T

Fujifilm’s DBE system, which has advanced the early diagnosis and treatment of small intestinal diseases, now has a new lineup. EN-840T supports more reliable and efficient diagnoses and treatment through changes to the user-friendly control portion, LCI／BLI, the addition of a water jet function, and a new insertion portion.

Learn more

EI-580BT

["Short" Double-Balloon Endoscope]

The 'short' Double Balloon Endoscope (sDBE) is engineered to overcome technically-challenging therapeutic ERCP procedures in patients with surgically-altered anatomy such as Roux-en-Y reconstruction or hepaticojejunostomy anastomosis. The 'short' Double Balloon Endoscope‘s length of 155 cm is optimum in these procedures; it provides compatibility with most standard ERCP devices as well as superior manoeuvrability for smoother insertion in situations of complex anatomy.

Field of view: 140°
Observation range: 2-100mm
Distal end diameter: 9.4 mm
Insertion tube diameter: 9.3 mm
Minimum diameter of instrument channel: 3.2 mm
Bending capability: UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°
Working length: 1,550 mm
Total length: 1,850 mm
Control portion ＆ Connector: G7 ＆ Conventional Connector

Product : Video Endoscope
GMDN: 36112
Generic name: Flexible video duodenoscope, reusable

[image] Tip of scope with parts - light guide, lens, water jet, instrument channel

[image] Scope moves 180 degrees up/down, 160 degrees left/right flexible angles

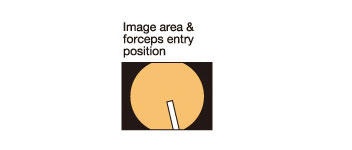

[image] Image area & forceps entry position

Field of view: 140°
Observation range: 2-100mm
Distal end diameter: 9.4 mm
Insertion tube diameter: 9.3 mm
Minimum diameter of instrument channel: 3.2 mm
Bending capability: UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°
Working length: 2,000 mm
Total length: 2,300 mm

Product : Video Endoscope
GMDN: 36299
Generic name: Flexible video enteroscope
