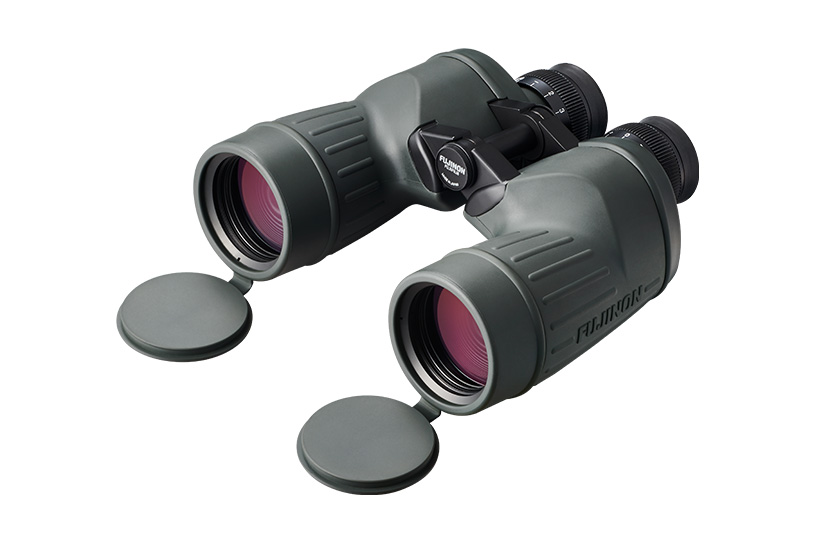

7 x 50

Specifications	7 x 50 MTR-SX	7 x 50 MTRC-SX

Magnification	7	7
Objective diameter (mm)	50	50
Field of view (°)	7.5	7.5
Apparent field of view (°)^*1	49.3	49.3
Field of view at 1000m (m)	131	131
Exit pupil (mm)	7.1	7.1
Relative Brightness	51	51
Eye relief (mm)	12	12
Minimum Focus Distance (m)^*2	9.8	9.8
Height (mm)	187	187
Width (mm)	218	218
Depth (mm)	78.5	93
Weight (g) (w/o Battery)	1,300	1,360
Adjustment range for interpupillary distance (mm)	56-74	56-74
Dioptric adjustment range (m^-1)	±5	±5
Focus type	IF	IF
Water resistant^*3	2m-5min	2m-5min
Battery	-	-
Operating temperature	-20℃ - +50℃	-20℃ - +50℃

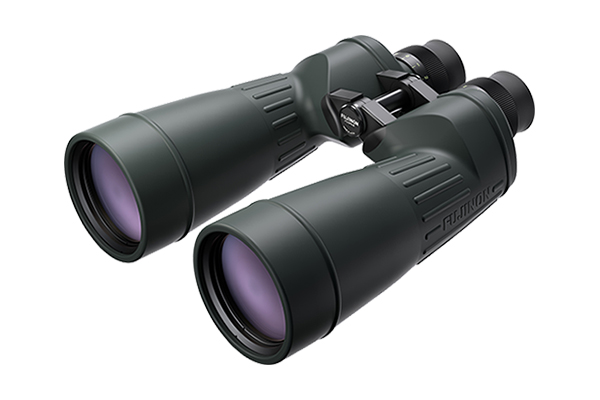

10 x 70

Specifications	10 x 70 MTR-SX

Magnification	10
Objective diameter (mm)	70
Field of view (°)	5.3
Apparent field of view (°)^*1	49.7
Field of view at 1000m (m)	93
Exit pupil (mm)	7
Relative Brightness	49
Eye relief (mm)	12
Minimum Focus Distance (m)^*2	20
Height (mm)	269
Width (mm)	238
Depth (mm)	88.5
Weight (g) (w/o Battery)	1,880
Adjustment range for interpupillary distance (mm)	56-74
Dioptric adjustment range (m^-1)	±5
Focus type	IF
Water resistant^*3	2m-5min
Battery	-
Operating temperature	-20℃～+50℃

Bundled items: Objective lens caps, eyepiece rainguard, softcase and neck strap.
