instax SQUARE 2™ - Specifications

NEW
Front

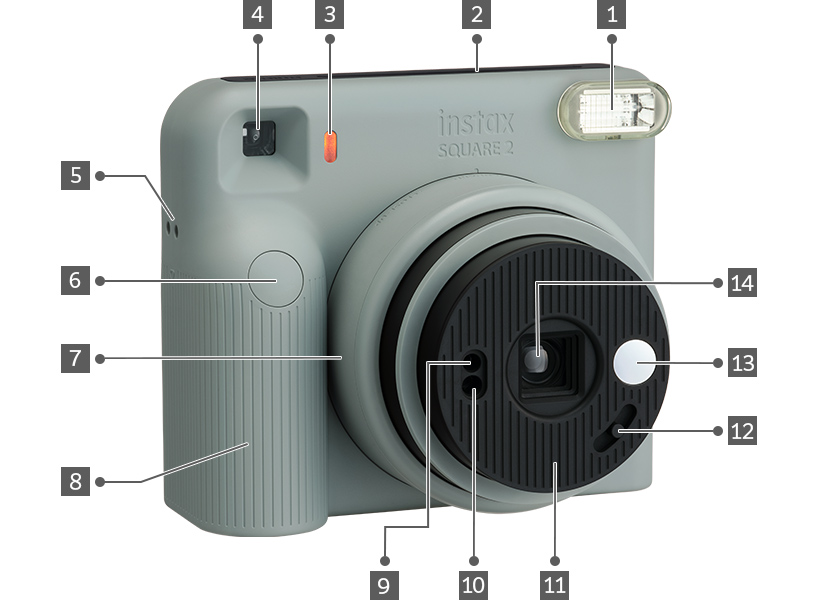

[photo] Diagonal image of the instax SQUARE 2™
  1. Flash
  2. Film Ejection Slot
  3. Flash Charging Lamp
  4. Viewfinder (Front)
  5. Strap Eyelet
  6. Shutter Button
  7. Lens Ring
  8. Battery Cover
  9. Auto Exposure Light Sensor
  10. Flash Light Sensor
  11. Lens Barrel
  12. Mood Filter Switch
  13. Selfie Mirror
  14. Lens Cover / Lens
Rear
[photo] Image of the rear of the instax SQUARE 2™
  1. Film Door Lock
  2. Film Confirmation Window
  3. Film Door
  4. Film Counter
  5. Viewfinder (Back)
Specifications
Film used

FUJIFILM instax™ SQUARE Instant Film (sold separately)

Photo Picture Size

62 mm x 62 mm

Lens

2 components, 2 elements, f = 65.75 mm, 1:12.6

Viewfinder

Reverse Galilean finder, 0.4x, with target spot

Shooting Range

0.3 m and beyond
(CLOSE-UP: 0.3 m to 0.5 m / STANDARD: 0.5 m to 3.0 m / LANDSCAPE: 3.0 m and beyond)

Shutter

Programmed electronic shutter 1/2 to 1/400 sec.
Slow synchro for low light

Exposure Control

Automatic, Lv 5.0 to 15.5 (ISO 800)

Film Ejection

Automatic

Film Developing Time

Approx. 90 seconds (varies depending on the ambient temperature)

Flash

Constant firing flash (automatic light adjustment), recycle time: 7.5 seconds or less
(when using new batteries), effective flash range: 0.3 to 2.2 m

Power Supply

4 AA-size alkaline batteries (LR6), capacity: approx. 30 instax™ SQUARE instant film packs of 10 exposures each per set of new batteries (depends on usage conditions)

  • * The supplied batteries are for initial use.
    When they run out, replace them with new ones (4 AA-size alkaline batteries [LR6] or 4 AAsize
    nickel metal hydride batteries [HR6]).
  • * Do not mix alkaline and nickel metal hydride batteries.
  • * Manganese batteries cannot be used.
Auto Power Off Time

After 5 minutes

Other

Includes film counter and film pack confirmation window

Dimensions (W x H x D)

139.0 mm x 119.5 mm x 71.0 mm

Weight

450 g (without batteries, instax™ SQUARE film loaded, or strap attached)
