Duodenoscopes - Specifications

NEW

A duodenoscope which supports efficient ERCP with less stress.

Contact Us

The content on this page is intended to healthcare professionals and equivalents.

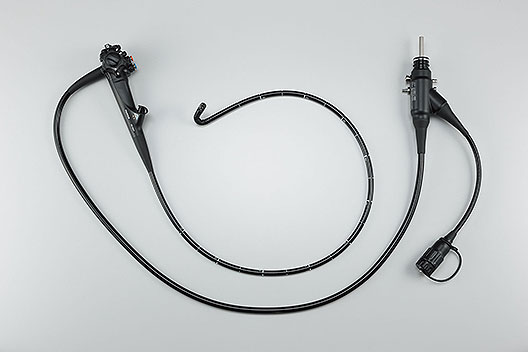

ED-580T
[photo] ED-580T

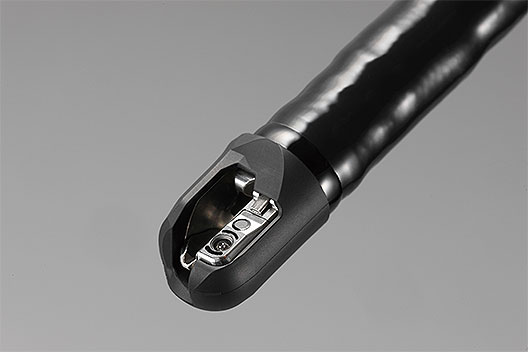

[photo] Close-up view of the distill end cap on the ED-580T
Viewing direction

ED-580T
105° (retro-viewing 15°)

Field of view

100°

Observation range

4-60mm

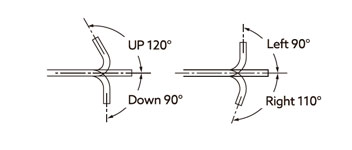

Bending capability

UP 120° / Down 90° / Left 90° / Right 110°

Working length

1250mm

Total length

1550mm

Distal end diameter

13.1mm

Insertion tube diameter

11.3mm

Minimum diameter of instrument channel

4.2mm

  • Product name:Video Endoscope
  • GMDN:36112
  • Generic name:Flexible video duodenoscope, reusable

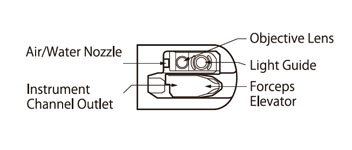

[image] Graphical rendering of the aeriel view of the ED-580T with labels point to the Air/Water Nozzle, Instrument Channel Outlet, Objective lens, Light Guide, Forceps Elevator,
[image] Graphical rendering of Bending Capability up 120 degrees

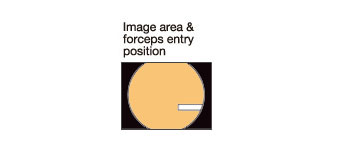

[image] Image area & forceps entry position
Accessories
Valves for G7 control portion
[photo] SB-605 Suction Valve
SB-605NEW

Suction Valve

[photo] AW-603 Air/Water Valve
AW-603NEW

Air/Water Valve

[photo] AW-604G Gas/Water Valve
AW-604GNEW

Gas/Water Valve

Distal End Cap
[photo] DC-07D
DC-07DNEW
Disposable Cleaning Brushes
[photo] WB11003DV for suction valve cylinder, air/water valve cylinder and instrument channel inlet
WB11003DVNEW

for suction valve cylinder, air/water valve cylinder and instrument channel inlet

[photo] WB7025DC for instrument channel and suction channel
WB7025DCNEW

for instrument channel and suction channel

[photo] WB1318DE for distal end and forceps elevator
WB1318DENEW

for distal end and forceps elevator

Attachment and detachment of distal end cap

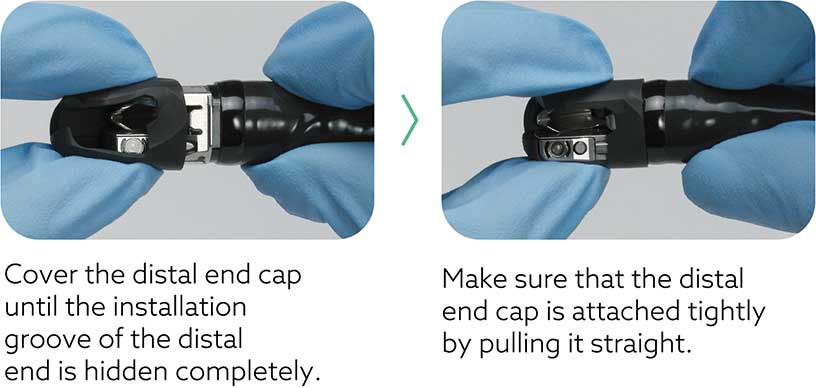

Attachment
[photo] Side by side close-up views of Covering the distil end cap and attaching it tightly

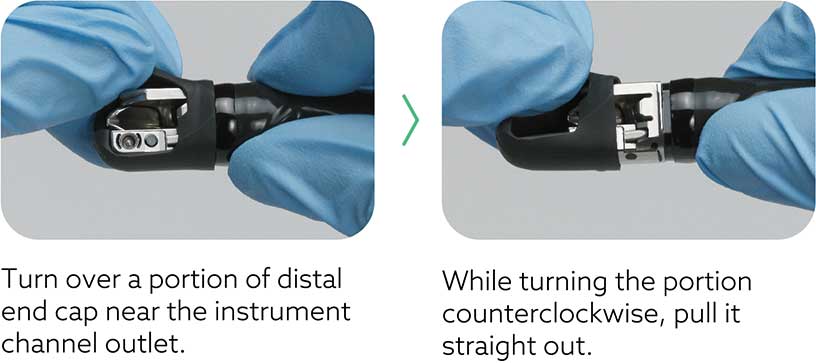

Detachment
[photo] Side by side close-up views of how to detach the distal cap by turning a portion near the instrument channel and turning the counter-clockwise to pull it straight out
