With ultra-short throw and a wide lens-shift range, our revolutionary compact, large-screen projectors offer more ways to create a sense of space.
High Resolution, High Quality
Our Unique Folded Lens
Both projectors feature a FUJIFILM unique folded lens. Bending and focusing light to create an image requires a high-precision optical design. By utilizing the optical design software originally developed by FUJIFILM, dozens of elements were combined to create a lens that can be rotated without creating distortion and that projects a high-quality image to every corner of the screen.
High-Precision Optical Axis Alignment
Maintaining high resolution without distortion requires precise alignment of the optical axis. Multiple adjustments are optimally combined to deliver a high-quality image.
Improved Color Reproduction for More Vivid Colors
We overhauled the color design of the FP-Z8000 to increase the color space. The projector boasts a wide variety of customizable controls - including settings for hue, saturation, color temperature, and seven-color tuning - that combine with edge blending to allow images to be displayed effectively using multiple projectors.
Large Screen, Ultra-Short Throw
Wide-Diameter Aspherical Lens
The front lens group (Group G1) features a wide-diameter aspherical lens. It is to this wide(Φ87mm)aspherical element with a surface ground to high-precision, single-micron tolerances, that the projector owes its ultra-short throw.
100" Images from Ultra-Close Range
With a throw ratio*1 of 0.34, the ultra-short-throw lens can project images of up to 300" from ultra-close range. A 100" image can be projected from an ultra-short distance of only 75 cm (30 in.)*2 in the case of the FP-ZS000, or from only 72 cm (28 in.)*2 in the case of the FP-Z8000.

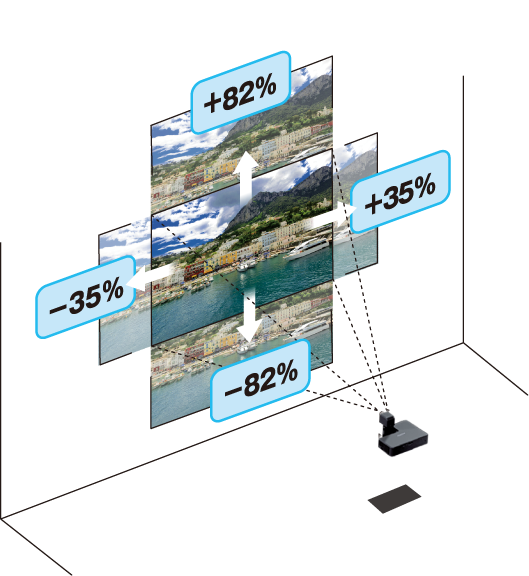

Wide Lens-Shift Range
An Ultra-Short Throw Combined with a Wide Lens-Shift Range
The FP-Z8000 and FP-Z5000 offer vertical lens shifts of 70% and 82% respectively and a horizontal lens-shift range of 35%, letting you change the position of the projected image(figures are for landscape-orientation images with an aspect ratio of 16:10 in the case of the FP-Z8000 or 16:9 in the case of the FP-Z5000). Both projectors are capable of storing separate lens shift positions for each orientation.
A Compact Design with a Built-in Lens
Our projector-lens design techniques are a product of roughly 30 years experience, this has lead to the development of lens barrels capable of maintaining high resolutions even when rotated in six directions on two axes. A compact design has been achieved by combining the lens and imaging system and by optimizing the layout of parts within the projector.
