Projector FP-Z8000
NEWPrincipal Specifications
-
Model name
-
FP-Z8000-B (Black)
FP-Z8000-W (White) -
DLP chip
-
Size: 0.67-inch, 16:10 aspect ratio
Display method:1 Chip DLP
Resolution:2,304,000 pixel (1920×1200) -
Lens
-
Type:Folded two-axial rotatable lens
Shift:Electrical:V±70% H±35%
Zoom:Electrical:x1.0 - x1.1
Throw ratio (TR):0.34 (Wide) - 0.37 (Telephoto)
F No.:F2.3 (Wide) - F2.39 (Telephoto) -
Light source
-
Laser diode
-
Brightness
-
8,000lm
-
Contrast ratio
-
12,000:1
-
Projected image size
-
70 ~300 inches, approx. 0.5m - 2.2m
-
Terminals
-
HDMI 1 IN HDMI 2.0 (Compatible with HDCP 2.2, Accept 4K signal)
HDMI 2 IN HDMI 1.4 (Compatible with HDCP 1.4 [Audio input not supported])
DisplayPort IN Display Port1.2 (Compatible HDCP 1.3)
SDI IN BNC (3G/HD/SD SDI input)
HDBaseT IN RJ-45 for video/audio/control function
LAN RJ-45 for network connection (10/100Base-T)
RS-232C IN D-Sub 9 Pin for control function
AUDIO IN/OUT 3.5mm stereo mini jack
USB 1 Type A for maintenance, DC5V
USB 2 Type A for warping / edge blending function -
Speaker
-
10W
-
Dimensions
-
18.1 in (W) x 20in (D) x 6.4 in (H)
(460mm (W) x 510mm (D) x 162.5mm (H))
(excluding adjustment legs) -
Weight
-
Approx. 41.9lb(19 kg)
- * Optional accessories: ceiling mount, dedicated storage case
- * The projectors are Class 1 laser products. Do not look directly into the beam.
- * PJ Link is a trademark registered in Japan, the United States, ard other countries.
- * HDBaseT, the HDBaseT logo, and the HDBaseT Alliance are trademarks in Japan and other countries.
- * DLP and the DLP logo are registered trademarks of Texas Instruments.
- * HDMI is a trademark or registered trademark of HDMI Licensing LLC in the United States and other countries.
- * Crestron, Crestron RoomView, Crestron Connected, and the Crestron Connected logo are registered trademarks of Crestron Electronics, Inc. in the United States.
Dimension
Interface Connectors

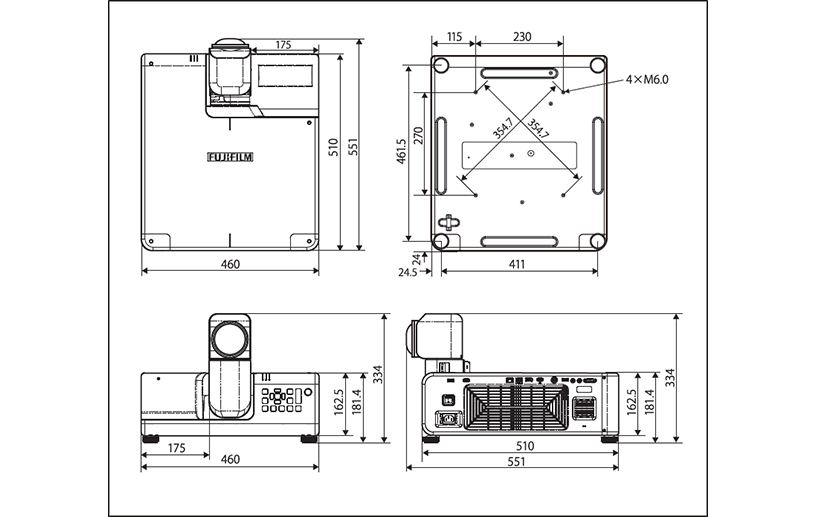

External Dimensions

* Product specifications and appearance are subject to change without advance notice.
Projection Distance
Lens Shift Range

Projection Distance

Projection Distances
16:10 Screen | ① Projection distance (cm) | ② Lens shift (cm) | |||||||
Size (inches) | Width (cm) | × | Height (cm) | Wide | - | Tele | Lowest | - | Highest |
70 | 151 | × | 94 | 50 | - | 55 | -113 | - | 19 |
80 | 172 | × | 108 | 58 | - | 64 | -129 | - | 22 |
90 | 194 | × | 121 | 65 | - | 72 | -145 | - | 24 |
100 | 215 | × | 135 | 72 | - | 80 | -162 | - | 27 |
120 | 258 | × | 162 | 87 | - | 96 | -194 | - | 32 |
150 | 323 | × | 202 | 109 | - | 121 | -242 | - | 40 |
200 | 431 | × | 269 | 147 | - | 161 | -323 | - | 54 |
250 | 538 | × | 337 | 184 | - | 202 | -404 | - | 67 |
300 | 646 | × | 404 | 221 | - | 243 | -485 | - | 81 |
- * Figures are approximate. differing from the actual values by a few percent.
