PPE Cartridge UXL Type
NEWAn ultra-high flow rate type of cartridge that is best suited for Gen 8 through Gen 10 LCD substrates has been added to the lineup of PPE cartridges that have been received favorably because of their excellent rough filtration performance and chemical resistance performance.
Overview
-
Ready for use for larger LCD substrates
-
A PPE cartridge filter of an ultra-high flow rate that surpasses that of the conventional cartridges
-
Best suited for Gen 8 through Gen 10 large LCD substrates
Features
Ultra-high flow rate
The cartridge has realized an ultra-high flow rate by increasing the membrane area inside the cartridge, while at the same time employing a structure that optimizes filtration capabilities.
Excellent clarification and filtration
A dense non-woven fabric performs reliable clarification and filtration.
Excellent prefiltration
The cartridge reliably retains particles and fully demonstrates the prefiltration functions of the membrane filter. It is very effective in extending the service life of filtration systems.
Excellent chemical resistance
Since polypropylene is used for all the cartridge materials, the cartridge can be used with acids, alkalis and various types of organic solvents.
Main applications
-
For prefiltration, clarification and filtration in wet processes for large LCD substrates
-
For prefiltration, clarification and filtration where a high flow rate is required for various types of acidic and alkaline chemicals and reagents
Specifications
Table of Performance Characteristics
|
Item |
Unit |
Product type |
||||
|---|---|---|---|---|---|---|
|
PPE025 |
PPE045 |
PPE100 |
PPE200 |
|||
|

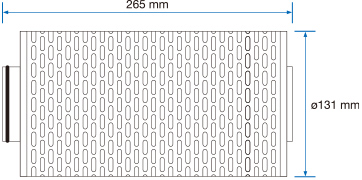

Size |
Length |
mm |
265 |
|||
|
Outer diameter |
mm |
131 |
||||
|
Maximum differential pressure |
25℃ |
MPa |
0.34 (Positive pressure) |
|||
|
PH area to be used |
|
1 - 14*1 |
||||
- *1 In the case of using the cartridge for chemical fluid filtration, prior evaluation should be carried out under the planned conditions of use.
Material
|
Part name |
Material |
|---|---|
|
Non-woven fabric |
Polypropylene |
|
Support material |
Polypropylene |
|
Case |
Polypropylene |
|
O-ring |
EPDM (Standard) |
O-ring size: JIS-P65 (AS568-334 or equivalent)
Example of retention efficiency
Unit: %
|
Part number |
Retention grade |
Particle size (µm) |
|||
|---|---|---|---|---|---|
|
3.0 |
5.0 |
10.0 |
30.0 |
||
|
PPECJM025 |
2.5 |
99 |
- |
- |
- |
|
PPECJM045 |
4.5 |
- |
99 |
- |
- |
|
PPECJM100 |
10 |
- |
- |
99 |
- |
|
PPECJM200 |
20 |
- |
- |
- |
99 |
Measuring conditions (025 045)
Test particle: ISO Fine Test Dust Test fluid turbidity: 10 ppm Flow rate: 11.3 L/min
Measuring conditions (100 200)
Test particle: ISO Medium Test Dust Test fluid turbidity: 10 ppm Flow rate: 11.3 L/min
Initial flow rate and initial pressure loss (by pore size)
Abbreviated product name
Size
Related products
The following 2 types of housings allow the extraordinarily high flow rate filters to fully demonstrate their performance.
- FPSUX TE1 (made of polypropylene)
- FS6LJM 1-1 50 FET 1 (made of stainless steel)
- * For details of the methods of use, refer to the instruction manual that comes with the product.
- * The product may be built to order, depending on the shape and/or size. For details, contact your sales agent.
- * Specifications are subject to change for improvement purposes without prior notice.
